3-Way Diverting And Mixing Valve (V135-1C)

by Resideo: Smart Home Products and Systems

Description

Resideo offers top-of-the-line home automation solutions to set up your best smart home system, including smart thermostats, security cameras and more.

This product listing is to download the 3-Way Diverting And Mixing Valve (V135-1C)

Click here to visit Resideo for more info!

Object Data

1 Revision

Last Updated

01/04/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

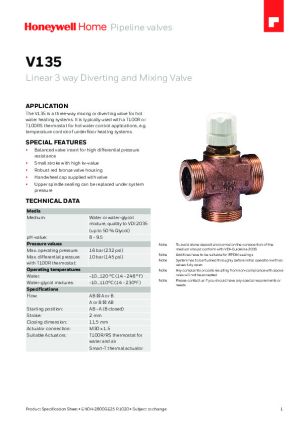

Product Literature

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/3-way-diverting-and-mixing-valve-v135-1c/document/object-user-guide
a45.0 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
BIM Object NameResideo_3WayDivertingAndMixingValve_V135-1C
Classification NameUniclass2015
Classification ValuePr_65_54_95_88
Code Performancen/a
Colorn/a
Connection Radius12.5 mm
Connection Size25.0 mm
Constituentsn/a
Created Bywww.resideo.com/gb/en/contact-us/
Created On2022-04-05 T09:00:00
Description3-WAY-VALVE FEMALE THREADS KV5
Documentation Certificateswww.bimstore.co/products/3-way-diverting-and-mixing-valve-v135-1c/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/3-way-diverting-and-mixing-valve-v135-1c/document/installation-guide
Documentation Literaturewww.bimstore.co/products/3-way-diverting-and-mixing-valve-v135-1c/document/product-literature
Documentation Maintenancewww.bimstore.co/products/3-way-diverting-and-mixing-valve-v135-1c/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/3-way-diverting-and-mixing-valve-v135-1c/document/technical-data-sheet
Duration UnitYear
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.REGULATING
KeynoteS
ManufacturerResideo
Manufacturer NameResideo
Materialn/a
ModelV135-1B
Model NumberV135-1B
Model Reference3-WAY-VALVE FEMALE THREADS KV5
NBS DescriptionThermostatic mixing valves
NBS Noten/a
NBS Object NameResideo - Thermostatic mixing valves
NBS Office Master Tagn/a
NBS Reference90-10-90/370
Nominal Depth50.0 mm
Nominal Height156.0 mm
Nominal Length159.0 mm
Primary MaterialResideo - Brass
Production Year2022
Referenced Standardn/a
Replacement Costn/a
Secondary MaterialResideo - Plastic - White
Shapen/a
Size50mm (D) x 156mm (H) x 159mm (L)
Spare Partsn/a
Type Comments3-WAY-VALVE FEMALE THREADS KV5
Type NameV135-1B
URLwww.resideo.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborwww.resideo.com/gb/en/contact-us/
Warranty Guarantor Partswww.resideo.com/gb/en/contact-us/

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
