Air Curtain - T-Series - Recessed

Description

Tried, tested and proven, Thermoscreens T Series air curtains are the product of choice for commercial and retail environments of all types and sizes. Robust and very reliable they offer highly efficient air separation for virtually any doorway.

Object Data

1 Revision

Last Updated

19/05/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Installation Guide

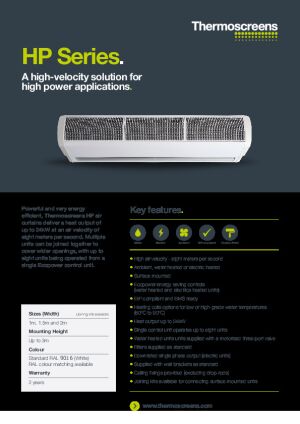

Product Literature

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/air-curtain-t-series-recessed/document/object-user-guide
A1150.00 mm
Accessibility Performancen/a
Assembly CodeD3090400
Asset TypeFixed
B100.00 mm
BIM Object NameThermoscreens_MechanicalEquipment_AirCurtains_TSeries_T1000AR
C1104.00 mm
Classification NameUniclass2015
Classification ValuePr_70_60_36_02
Code Performancen/a
ColorRAL 9016
Constituentsn/a
Created Bysales@thermoscreens.com
Created On2022-01-20 T09:00:00
Default Elevation3000.00 mm
Depth436.00 mm
DescriptionTried, tested and proven, Thermoscreens T Series air curtains are the product of choice for commercial and retail environments of all types and sizes. Robust and very reliable they offer highly efficient air separation for virtually any doorway.
Documentation Certificateswww.bimstore.co/products/air-curtain-t-series-recessed/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/air-curtain-t-series-recessed/document/installation-guide
Documentation Literaturewww.bimstore.co/products/air-curtain-t-series-recessed/document/product-literature
Documentation Maintenancewww.bimstore.co/products/air-curtain-t-series-recessed/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/air-curtain-t-series-recessed/document/technical-data-sheet
Duration UnitYear
Expected Life0
Features- Very energy efficient - Ambient, water heated or electric heated - Ecopower energy saving controls (water heated and electric heated units) - ErP compliant and BMS ready - Centrifugal fans provide powerful air flow - High heat output - Water heated units supplied with motorised three-port valve - Sophisticated digital control system - Heating coils for low or high-grade water temperatures (60°C to 90°C) - recessed units - Downrated single phase output (electric units) - Door limit switch (advisable for water heated and ambient units only) - EcoPower controller extension cables - Ceiling fixings provided (excluding drop-rods)
Finishn/a
Graden/a
Heat Outputn/a
Height296.00 mm
Ifc Export AsIfcUnitaryEquipmentType
Ifc Export TypeAIRCONDITIONINGUNIT
KeynoteU
Length1150.00 mm
Loading Per Phase1.1 A
ManufacturerThermoscreens
Manufacturer NameThermoscreens
Materialn/a
Maximum Air Volume2000 m3/h
Maximum Velocity7.5 m/s
ModelT1000AR
Model NumberT1000AR
Model ReferenceThermoscreens T Series Air Curtain
NBS DescriptionAir curtains
NBS Object NameThermoscreens - Air curtains
NBS Office Master Tagn/a
NBS Reference90-40-35/310
Noise Output-High57 dB(A) @3m
Noise Output-Low52 dB(A) @3m
Noise Output-Medium54 dB(A) @3m
Nominal Depth436.00 mm
Nominal Height296.00 mm
Nominal Length1150.00 mm
Production Year2022
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare PartsMaster and slave lead: 3M + coupler [T5951110]; 6M Extension cable + coupler [T5951111]; 10M Extension cable + coupler [T5951112]; 15M Extension cable + coupler [T5951113]; 30M Extension cable + coupler [T5951114]; Extension lead coupler [T5951030].
Standard Grille Size1104 x 436mm
Supply230V~1P&N
Type CommentsThermoscreens T Series Air Curtain
Type NameThermoscreens T Series Air Curtain
Type Of HeatingAmbient
URLthermoscreens.com/
Warranty Descriptionn/a
Warranty Duration Labor2
Warranty Duration Parts2
Warranty Duration UnitYear
Warranty Guarantor Laborsales@thermoscreens.com
Warranty Guarantor Partssales@thermoscreens.com
Water Flown/a
Water Pressure Drop(Coil)n/a
Water Pressure Drop(Valve)n/a
Weight27.00 kg

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
