ALM - Automatic Filling Valve

Description

Automatic filling valve complete with check valve, manual shut-off, stainless steel filter, vent screw and pressure gauge with bottom connection and 50 mm dial, scale 0÷4 bar. CW617N brass body. Impact-resistant plastic cap. 1/4” F pressure gauge connection. Maximum upstream pressure: 10 bar. Downstream pressure: 0.3÷4 bar.

Object Data

1 Revision

Last Updated

02/04/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Literature

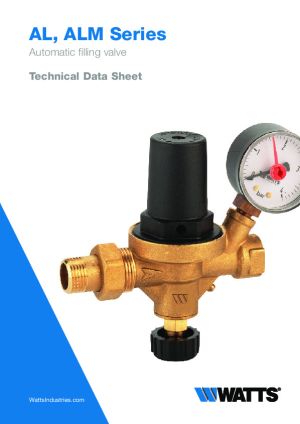

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/alm-automatic-filling-valve/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2040100
Asset TypeFixed
BIM Object NameWatts_AutomaticFillingValve_ALM
BodyCW617N
CapImpact-resistant plastic
Classification NameUniclass2015
Classification ValuePr_65_54_40_13
Code Performancen/a
Colorn/a
Constituentsn/a
Created Bycontact@wattswater.com
Created On2024-01-18 T09:00:00
Default Elevation0.0 mm
DescriptionAutomatic filling valve complete with check valve, manual shut-off, stainless steel filter, vent screw and pressure gauge with bottom connection and 50 mm dial, scale 0÷4 bar. CW617N brass body. Impact-resistant plastic cap. 1/4” F pressure gauge connection. Maximum upstream pressure: 10 bar. Downstream pressure: 0.3÷4 bar.
DiaphragmNylon-reinforced NBR
Documentation Certificateswww.bimstore.co/products/alm-automatic-filling-valve/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/alm-automatic-filling-valve/document/installation-guide
Documentation Literaturewww.bimstore.co/products/alm-automatic-filling-valve/document/product-literature
Documentation Maintenancewww.bimstore.co/products/alm-automatic-filling-valve/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/alm-automatic-filling-valve/document/technical-data-sheet
Duration UnitYear
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS12
ManufacturerWatts
Manufacturer NameWatts
Materialn/a
Maximum Flow Rate1.8 m3/h
Maximum Fluid Temperature40°C
Maximum Inlet Pressure10 bar
ModelALM
Model NumberALM
Model ReferenceAutomatic filling valve
NBS DescriptionCheck valves
NBS Noten/a
NBS Object NameWatts - Check valves
NBS Office Master Tagn/a
NBS Reference90-15-40/323
Nominal Depth0.0 mm
Nominal Height0.0 mm
Nominal Length0.0 mm
Operating Sensitivity0.2 bar
Pressure Gauge Connection1/4” F
Pressure Setting0.3÷4 bar
Production Year2024
Referenced Standardn/a
Replacement Costn/a
Seal RingsNBR
Shapen/a
SizeDN15
Spare Partsn/a
Type CommentsAutomatic filling valve
Type NameDN15
URLwww.watts.eu/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partscontact@wattswater.com
Weight0.60 kg
