AM 22

by Jungheinrich

Download Add to collection

Description

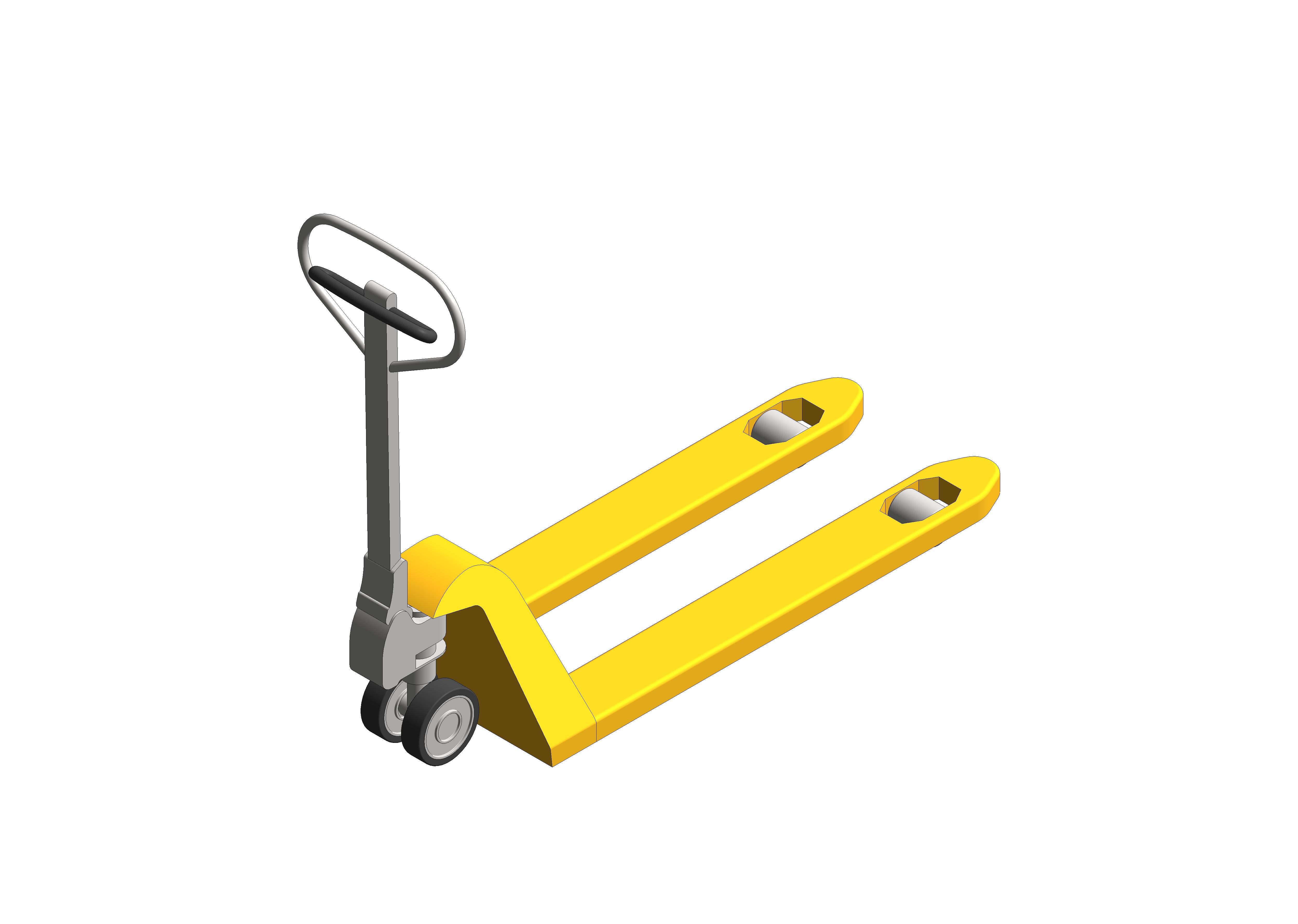

The AM 22 hand pallet truck is the ideal solution for all manual transportation over short distances.

Advantages:

Easy to operate controls – equally comfortable for left and right-handed operators. Comfortable and safe manoeuvring with one hand on the tiller arm is easy.
Optional fast lift (up to 120 kg) for lifting pallets clear of the floor with only three pump strokes.
Short front-end length – offering maximum manoeuvrability in restricted conditions.
Chromed wheel and joint bushings allow easy pulling or pushing.
Extremely quiet, maintenance-free operation impresses across the board.
Optimum use on a wide range of surfaces thanks to different roller coatings.

Object Data

1 Revision

Last Updated

17/05/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Literature

Product Data Sheet

Object metadata

_AuthorIan Holmes
_Authorized Bybimstore
_Bim Spec Guid1
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/product/f0e7ea61-88f2-49ec-80ed-ad33cad20c5c/document/87fef860-d961-4207-bc37-4ce80844e4d2/download
Accessibility Performancen/a
Assembly CodeD5090
Asset TypeFixed
B1520 mm
B11370 mm
BIM Object NameJungheinrich_Site_HandPalletTruck_AM22
BlackStainless Steel, Black
Classification NameUniclass2015
Classification ValuePr_65_80_47_95
Code Performancen/a
ColorYellow and Black
Constituentsn/a
Created Byinfo@jungheinrich.co.uk
Created On2019-05-16T09:00:00
DescriptionThe AM 22 hand pallet truck is the ideal solution for all manual transportation over short distances.
Documentation Certificateswww.jungheinrich.co.uk
Documentation Installation Guidewww.jungheinrich.co.uk
Documentation Literaturewww.bimstore.co/product/f0e7ea61-88f2-49ec-80ed-ad33cad20c5c/document/d5395d07-279a-468b-9df8-e72458383935/download
Documentation Maintenancewww.jungheinrich.co.uk
Documentation Technicalwww.jungheinrich.co.uk
Duration UnitYears
Expected Life0
FeaturesQuiet operation, Unique controls, Compact and manoeuvrable, Robust and reliable
FinishSteel, Paint Finish
Fork WheelStainless Steel, Black
Graden/a
Ifc Export AsIfcTransportElement
Ifc Export TypeIfcTransportElementType
KeynoteX
L11165 mm
L2373 mm
L6792 mm
Load Capacity2200.00 kg
Lowering Speed0.09 / 0.02 m/s
ManufacturerJungheinrich
Manufacturer NameJungheinrich
Materialn/a
ModelHand Pallet Truck
Model NumberAM22 - 1165
Model ReferenceHand Pallet Truck
NBS DescriptionVertical lifting platforms
NBS Object NameJungheinrich - Vertical lifting platforms
NBS Office Master Tagn/a
NBS Reference90-80-65/350
Net Weight51.00 kg
Nominal Depth520 mm
Nominal Height1234 mm
Nominal Length1165 mm
Production Year2019
Rear WheelRubber
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size2.2t
Spare Partsn/a
Type CommentsAM22 - 1165
Type NameAM22 - 1165
URLwww.jungheinrich.co.uk/products/new-forklifts/pallet-trucks/hand-pallet-trucks/am-22-108204
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@jungheinrich.co.uk
Warranty Guarantor Partsinfo@jungheinrich.co.uk
Wheel SilverStainless Steel, Black
YellowSteel, Paint Finish, Yellow

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
