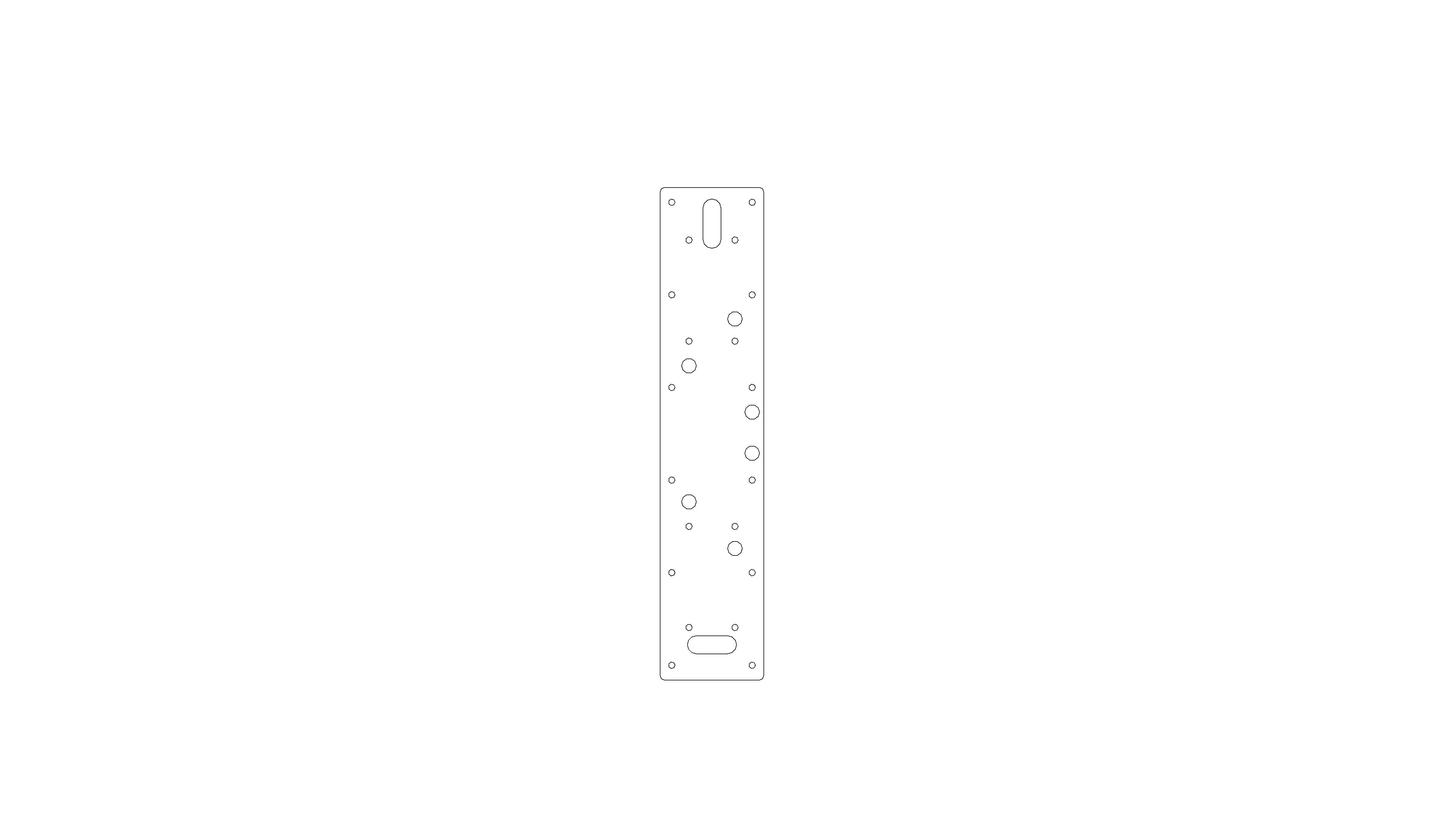

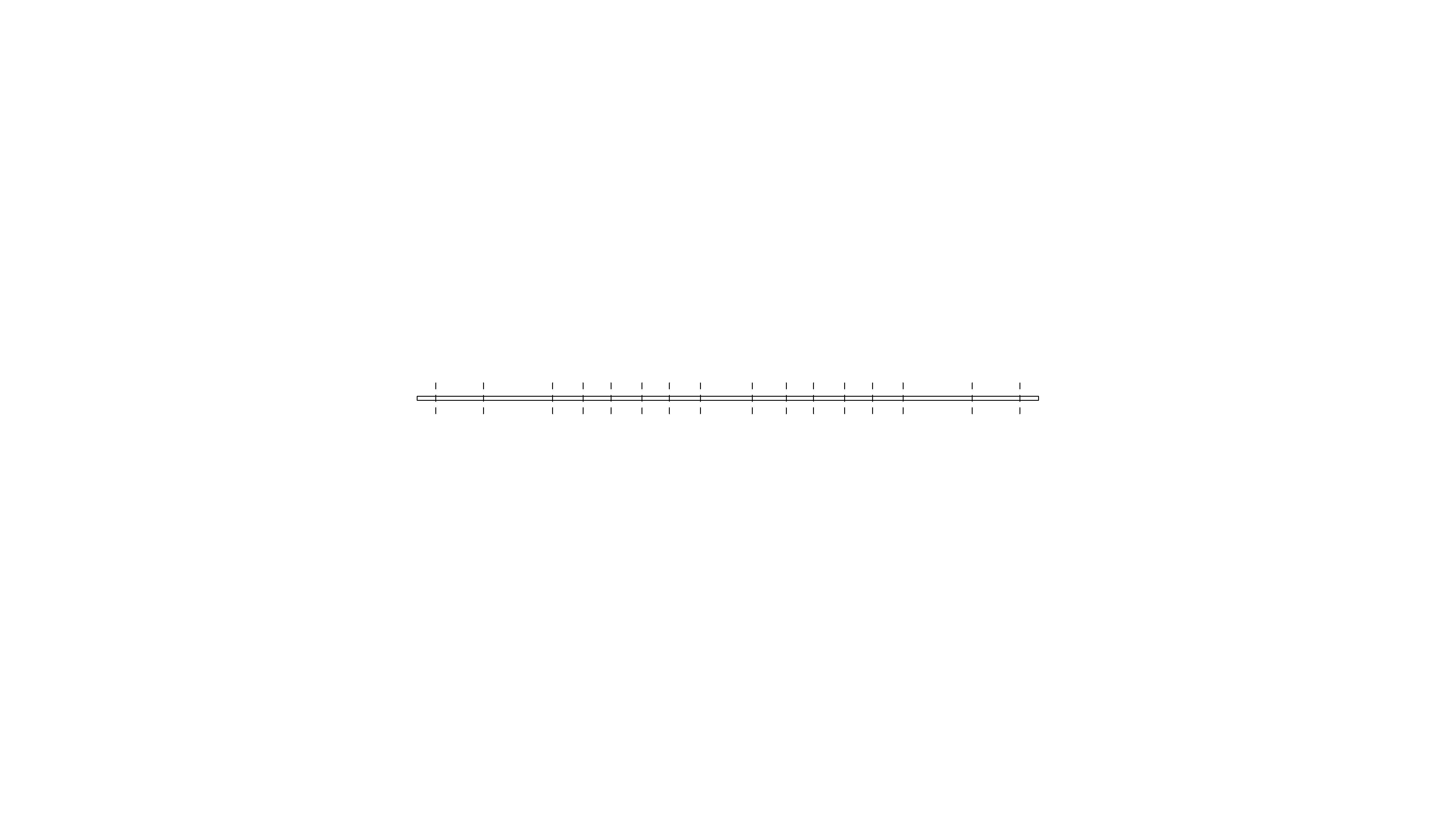

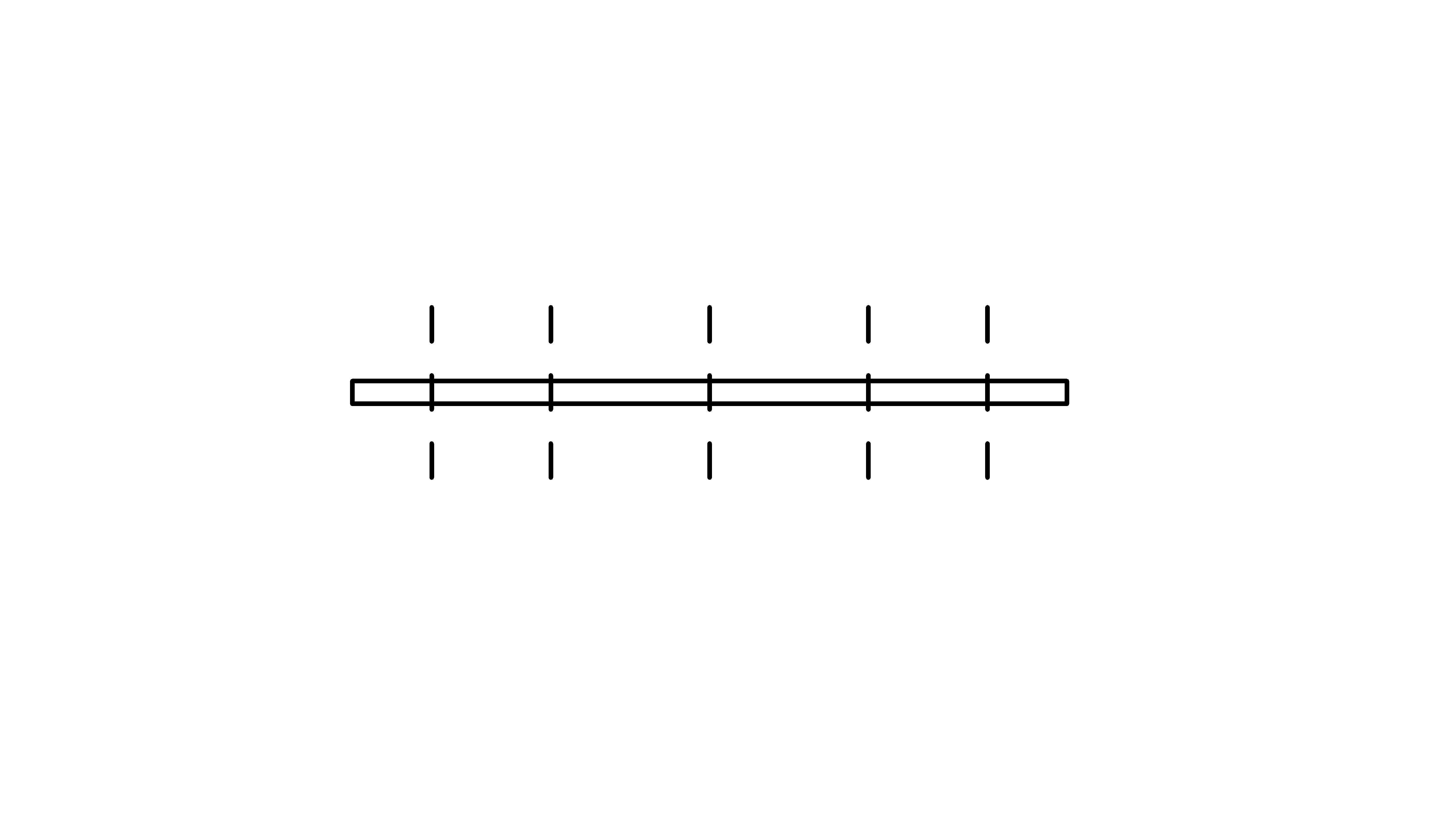

Angle Bracket JP63300

Download Add to collection

Description

Used as a safe economical method of connecting joists to perlins.

Object Data

1 Revision

Last Updated

04/09/2019

Available Software

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorAM
_Authorized ByRW
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/angle-bracket-jp63300/document/object-user-guide
Accessibility Performancen/a
Assembly CodeB10
Asset TypeFixed
BIM Object NameExpamet_GalvanizedSteelBrackets_AngleBracket_JP63300_2D
Classification NameUniclass_2015
Classification ValuePr_20_85_09_33
Code PerformanceBS EN 10346:2015, DX51D + Z275
ColorSteel
Constituentsn/a
Created Byinfo@birtleygroup.co.uk
Created On2019
DescriptionUsed as a safe economical method of connecting joists to perlins.
Documentation Certificateswww.expamet.co.uk
Documentation Installation Guidewww.expamet.co.uk
Documentation Literaturewww.expamet.co.uk
Documentation Maintenancewww.expamet.co.uk
Documentation Technicalwww.expamet.co.uk
Duration UnitYears
Expected Life0
Features2mm Thick Hot Dip Galvanized
FinishHot Dip Galvanized Mild Steel
Graden/a
Ifc Export AsIfcMember
Ifc Export TypeIfcMemberTypeEnum.PLATE
KeynoteG10/130
ManufacturerExpamet
Manufacturer NameExpamet
MaterialHot Dip Galvanized Mild Steel
ModelJP63300 Angle Bracket
Model NumberAngle Bracket
Model ReferenceJP63300 Angle Bracket
NBS DescriptionGalvanized steel brackets
NBS Object NameExpamet; Galvanized steel brackets
NBS Office Master Tagn/a
NBS Reference45-70-05/370
Nominal Depth2.00 mm
Nominal Height63.00 mm
Nominal Length300.00 mm
Production Year2019
Referenced StandardBS EN 10346:2015, DX51D + Z275
Replacement Costn/a
ShapeL
Size63mm x 300mm
Spare Partsn/a
Thickness2.00 mm
Type CommentsAngle Bracket
Type NameJP63300 Angle Bracket
URLwww.expamet.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@birtleygroup.co.uk
Warranty Guarantor Partsinfo@birtleygroup.co.uk

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
