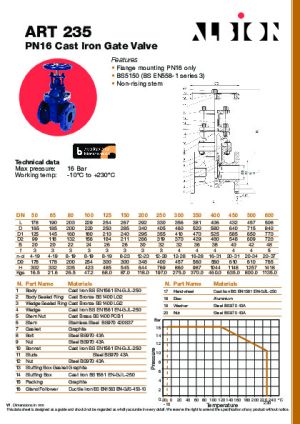

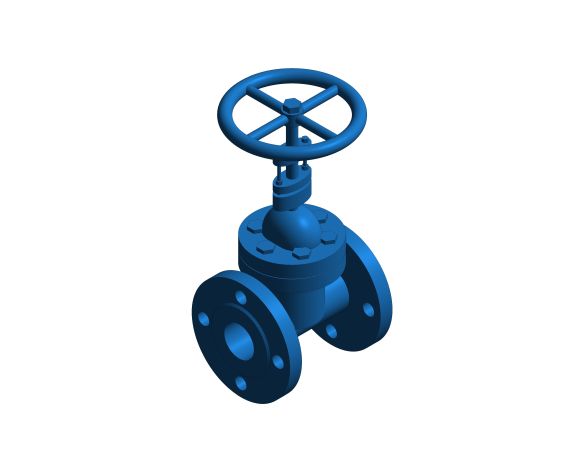

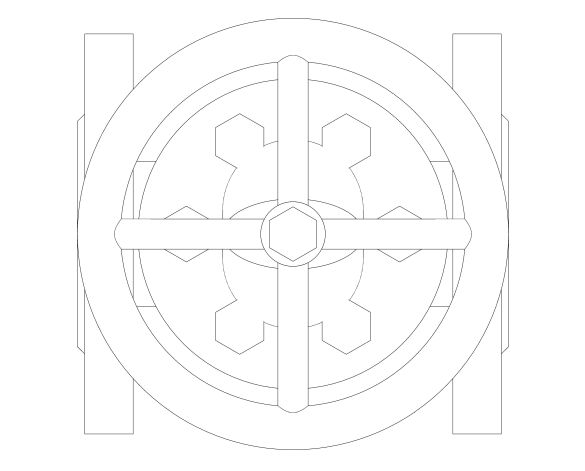

ART 235 - Gate Valve
Description
Description
Cast Iron PN16 Gate Valve. Bronze Trim. Stainless Steel Stem.
Connection
Flanged PN16
Approvals/ other
BS 5150
CE Approved
Pressure
16 Bar Rated
Temperature
-10°C to +230°C
Object Data
1 Revision
Last Updated
03/03/2020
Available Software
BS1192:4
Compliant
BSB
Compliant
EPD
Available
Object metadata
- _AuthorRL
- _Authorized Bybimstore
- _Bim Spec Guid0
- _BS Bible Version16
- _Created Bywww.bimstore.co
- _Current Revision1
- _Distributed Bywww.bimstore.co
- _Object User Guidewww.bimstore.co/products/art-235/document/object-user-guide
- Accessibility Performancen/a
- Assembly CodeD20
- Asset TypeFixed
- B24.00 mm
- BIM Object NameAlbionValves_PipeAccessories_GateValve_ART235
- Classification NameUniclass2015
- Classification ValuePr_65_54_95_12
- Code Performancen/a
- ColorBlue
- Connection Size100.00 mm
- Constituentsn/a
- Created Bysales@albionvalvesuk.com
- Created On2019-07-01T09:00:00
- D220.00 mm
- DescriptionPN16 Cast Iron Gate Valve
- Documentation Certificateswww.albionvalvesuk.com/
- Documentation Installation Guidewww.albionvalvesuk.com/
- Documentation Literaturewww.albionvalvesuk.com/
- Documentation Maintenancewww.albionvalvesuk.com/
- Documentation Technicalwww.albionvalvesuk.com/
- Duration UnitYears
- Expected Life0
- F3.00 mm
- Featuresn/a
- FinishAlkyd Paint Coat Finish
- Gland Length Radius54.50 mm
- Gland Width Radius27.25 mm
- Gland Width Radius Calc10.00 mm
- Graden/a
- H423.00 mm
- H1162.00 mm
- H2162.50 mm
- Half L114.50 mm
- Handle MaterialIron, Cast, Blue
- Handwheel Nut Diameter32.25 mm
- Handwheel Nut Height7.92 mm
- Handwheel Radius127.00 mm
- Ifc Export AsIfcValve
- Ifc Export TypeIfcValveTypeEnum.CHECK
- KeynoteS
- L229.00 mm
- ManufacturerAlbion Valves
- Manufacturer NameAlbion Valves
- MaterialCast Iron
- Max Pressure16 Bar
- ModelPN16 Cast Iron Gate Valve
- Model NumberDN100 - DN4"
- Model ReferencePN16 Cast Iron Gate Valve
- NBS DescriptionCast iron gate valves
- NBS Object NameAlbion Valves - Cast iron gate valves
- NBS Office Master Tagn/a
- NBS Reference90-10-90/336
- Nominal Depth179.00 mm
- Nominal Height423.00 mm
- Nominal Length229.00 mm
- Nut Centre69.50 mm
- Nut Dia20.00 mm
- Nut Dia 213.63 mm
- Nut Gap50.00 mm
- Nut Gap 273.00 mm
- Nut H124.00 mm
- Nut H224.00 mm
- Nut H324.00 mm
- Nut H412.00 mm
- Nut H512.00 mm
- Nut Height5.00 mm
- Nut Nut Offset35.00 mm
- Nut Offset13.63 mm
- Outside Diameter110.00 mm
- Production Year2019
- Referenced Standardn/a
- Replacement Costn/a
- Shapen/a
- SizeDN100 - DN4"
- Size DN100
- Spare Partsn/a
- Stem Height240.38 mm
- Stem MaterialIron, Cast, Blue
- Stem Radius13.63 mm
- Symbol Height60.00 mm
- Symbol Width72.00 mm
- Thread Inch4
- Thread Millimetre101.60 mm
- Type CommentsDN100 - DN4"
- Type NamePN16 Cast Iron Gate Valve
- URLwww.albionvalvesuk.com/
- Valve FinishIron, Cast, Blue
- Vertial Dia129.00 mm
- Vertical Dia 2179.00 mm
- Warranty DescriptionAgainst manufacturing defects.
- Warranty Duration Labor1
- Warranty Duration Parts1
- Warranty Duration UnitYears
- Warranty Guarantor Laborsales@albionvalvesuk.com
- Warranty Guarantor Partssales@albionvalvesuk.com
- Weight47.2kgs
- Working Temperature-10°C to +230°C
We have more variations, please download the object to get them all.

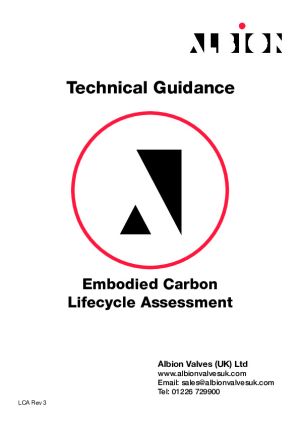

Sustainability & Environmental Data
Approved Sustainability Data from an EPD
This data is supplied by the manufacturer and certified by an approved third party.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) kg
- Total CO2e (Fossil) 87 kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
Approved Sustainability Data from an EPD
This data is supplied by the manufacturer and certified by an approved third party.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) kg
- Total CO2e (Fossil) 108 kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
Approved Sustainability Data from an EPD
This data is supplied by the manufacturer and certified by an approved third party.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) kg
- Total CO2e (Fossil) 132 kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
Approved Sustainability Data from an EPD
This data is supplied by the manufacturer and certified by an approved third party.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) kg
- Total CO2e (Fossil) 212 kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
Approved Sustainability Data from an EPD
This data is supplied by the manufacturer and certified by an approved third party.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) kg
- Total CO2e (Fossil) 357 kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
Approved Sustainability Data from an EPD
This data is supplied by the manufacturer and certified by an approved third party.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) kg
- Total CO2e (Fossil) 430 kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
Approved Sustainability Data from an EPD
This data is supplied by the manufacturer and certified by an approved third party.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) kg
- Total CO2e (Fossil) 606 kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
Approved Sustainability Data from an EPD
This data is supplied by the manufacturer and certified by an approved third party.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) kg
- Total CO2e (Fossil) 937 kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
Approved Sustainability Data from an EPD
This data is supplied by the manufacturer and certified by an approved third party.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) kg
- Total CO2e (Fossil) 1220 kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
