ART 40P - Ball Valve
Description
Description
2 Piece Brass Ball Valve. Full Bore.
Connection
BSP Parallel F/F Ends (ISO 228/1)
Approvals/ other

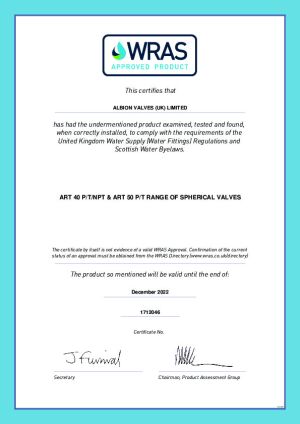

CE, WRAS, EN331 Gas
Pressure
Liquids - 40 Bar Rated (¼" to 2")
Liquids - 25 Bar Rated (2½" to 4")
Gas - 5 Bar Rated (¼" to 4")
Temperature
Liquids -20°C to +140°C
Gas -20°C to +60°C
Object Data
1 Revision
Last Updated
27/11/2025
Available Software
BS1192:4
Compliant
BSB
Compliant
EPD
Available
Object metadata
- _AuthorRL
- _Authorized Bybimstore
- _Bim Spec Guid0
- _BS Bible Version16
- _Created Bywww.bimstore.co
- _Current Revision1
- _Distributed Bywww.bimstore.co
- _Object User Guidewww.bimstore.co/products/art-40p/document/object-user-guide
- 113.5 mm
- 21.0 mm
- 311.0 mm
- 420.0 mm
- a10.0 mm
- Accessibility Performancen/a
- Assembly CodeD20
- Asset TypeFixed
- b5.0 mm
- BIM Object NameAlbionValves_PipeAccessories_BallValve_ART40P
- c3.0 mm
- Classification NameUniclass2015
- Classification ValuePr_65_54_95_06
- Code Performancen/a
- ColorNickel
- Connection Radius5.0 mm
- Connection Size10.0 mm
- Constituentsn/a
- Cover MaterialPVC Plastic - Yellow
- Created Bysales@albionvalvesuk.com
- Created On2019-08-29 T09:00:00
- d8.0 mm
- Default Elevation0.0 mm
- DescriptionART 40P Ball Valve
- DN10.0 mm
- Documentation Certificateswww.albionvalvesuk.com/
- Documentation Installation Guidewww.albionvalvesuk.com/
- Documentation Literaturewww.albionvalvesuk.com/
- Documentation Maintenancewww.albionvalvesuk.com/
- Documentation Technicalwww.bimstore.co/products/art-40p/document/technical-data-sheet
- Duration UnitYears
- e20.0 mm
- Expected Life0
- F11.5 mm
- Featuresn/a
- FinishBrass/Nickel plated
- Graden/a
- H41.0 mm
- Handle MaterialSteel
- Handle Placement20.0 mm
- Handle Thickness2.0 mm
- Ifc Export AsIfcValve
- Ifc Export TypeIfcValveTypeEnum.CHECK
- KeynoteS
- L83.0 mm
- L152.0 mm
- L2100.0 mm
- ManufacturerAlbion Valves
- Manufacturer NameAlbion Valves
- MaterialBrass/Nickel plated
- Max Pressure40 Bar
- ModelART 40P Brass Ball Valve
- Model NumberDN 3/8"
- Model ReferenceART 40P Brass Ball Valve
- NBS DescriptionBall valves
- NBS Object NameAlbion Valves - Ball valves
- NBS Office Master Tagn/a
- NBS Reference90-10-90/330
- Nut Radius10.4 mm
- Nut Width9.0 mm
- O10.0 mm
- Production Year2019
- Referenced Standardn/a
- Replacement Costn/a
- Shapen/a
- SI45.0 mm
- SizeDN 3/8"
- Size DN10
- Spare Partsn/a
- Thread Inch3/8
- Thread Millimetre16.7 mm
- Type CommentsDN 3/8"
- Type NameART 40P Brass Ball Valve
- URLwww.albionvalvesuk.com/
- Valve FinishNickel Plating
- Warranty DescriptionAgainst manufacturing defects.
- Warranty Duration Labor1
- Warranty Duration Parts1
- Warranty Duration UnitYears
- Warranty Guarantor Laborsales@albionvalvesuk.com
- Warranty Guarantor Partssales@albionvalvesuk.com
- Weight0.14kg
- Working Temperature-20°C to +140°C
We have more variations, please download the object to get them all.
Sustainability & Environmental Data
Self Certified Sustainability Data
This data is supplied and self certified by the manufacturer.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) 1 kg
- Total CO2e (Fossil) kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
Self Certified Sustainability Data
This data is supplied and self certified by the manufacturer.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) 1 kg
- Total CO2e (Fossil) kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
Self Certified Sustainability Data
This data is supplied and self certified by the manufacturer.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) 2 kg
- Total CO2e (Fossil) kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
Self Certified Sustainability Data
This data is supplied and self certified by the manufacturer.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) 2 kg
- Total CO2e (Fossil) kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
Self Certified Sustainability Data
This data is supplied and self certified by the manufacturer.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) 3 kg
- Total CO2e (Fossil) kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
Self Certified Sustainability Data
This data is supplied and self certified by the manufacturer.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) 6 kg
- Total CO2e (Fossil) kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
Self Certified Sustainability Data
This data is supplied and self certified by the manufacturer.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) 8 kg
- Total CO2e (Fossil) kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
Self Certified Sustainability Data
This data is supplied and self certified by the manufacturer.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) 12 kg
- Total CO2e (Fossil) kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
Self Certified Sustainability Data
This data is supplied and self certified by the manufacturer.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) 19 kg
- Total CO2e (Fossil) kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
Self Certified Sustainability Data
This data is supplied and self certified by the manufacturer.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) 30 kg
- Total CO2e (Fossil) kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
Self Certified Sustainability Data
This data is supplied and self certified by the manufacturer.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) 54 kg
- Total CO2e (Fossil) kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
Self Certified Sustainability Data
This data is supplied and self certified by the manufacturer.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) 0 kg
- Total CO2e (Fossil) kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
Self Certified Sustainability Data
This data is supplied and self certified by the manufacturer.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) 0 kg
- Total CO2e (Fossil) kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
Self Certified Sustainability Data
This data is supplied and self certified by the manufacturer.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) 0 kg
- Total CO2e (Fossil) kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
Self Certified Sustainability Data
This data is supplied and self certified by the manufacturer.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) 0 kg
- Total CO2e (Fossil) kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
Self Certified Sustainability Data
This data is supplied and self certified by the manufacturer.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) 1 kg
- Total CO2e (Fossil) kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
Self Certified Sustainability Data
This data is supplied and self certified by the manufacturer.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) 1 kg
- Total CO2e (Fossil) kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
Self Certified Sustainability Data
This data is supplied and self certified by the manufacturer.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) 1 kg
- Total CO2e (Fossil) kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
Self Certified Sustainability Data
This data is supplied and self certified by the manufacturer.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) 2 kg
- Total CO2e (Fossil) kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
Self Certified Sustainability Data
This data is supplied and self certified by the manufacturer.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) 4 kg
- Total CO2e (Fossil) kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
Self Certified Sustainability Data
This data is supplied and self certified by the manufacturer.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) 4 kg
- Total CO2e (Fossil) kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
Self Certified Sustainability Data
This data is supplied and self certified by the manufacturer.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) 5 kg
- Total CO2e (Fossil) kg
- Manufacturing (A1-A3) kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) kg
- Recycled Content %
- Recyclable Content %
- Re-use Potential %
- Energy Recovery Possibility %
- Water Use L
- Ozone Depletion Potential mg CFC-11eq
- Expiry-
You may also like
Embed Product
To embed this product into any website simply copy and paste the code below.
You must log in to write a comment
Login or Join
Bimstore on 07 May 2026
Be the first to write a comment...
