Articulating Boom - SJ63AJ

by Nationwide Platforms

Download Add to collection

Description

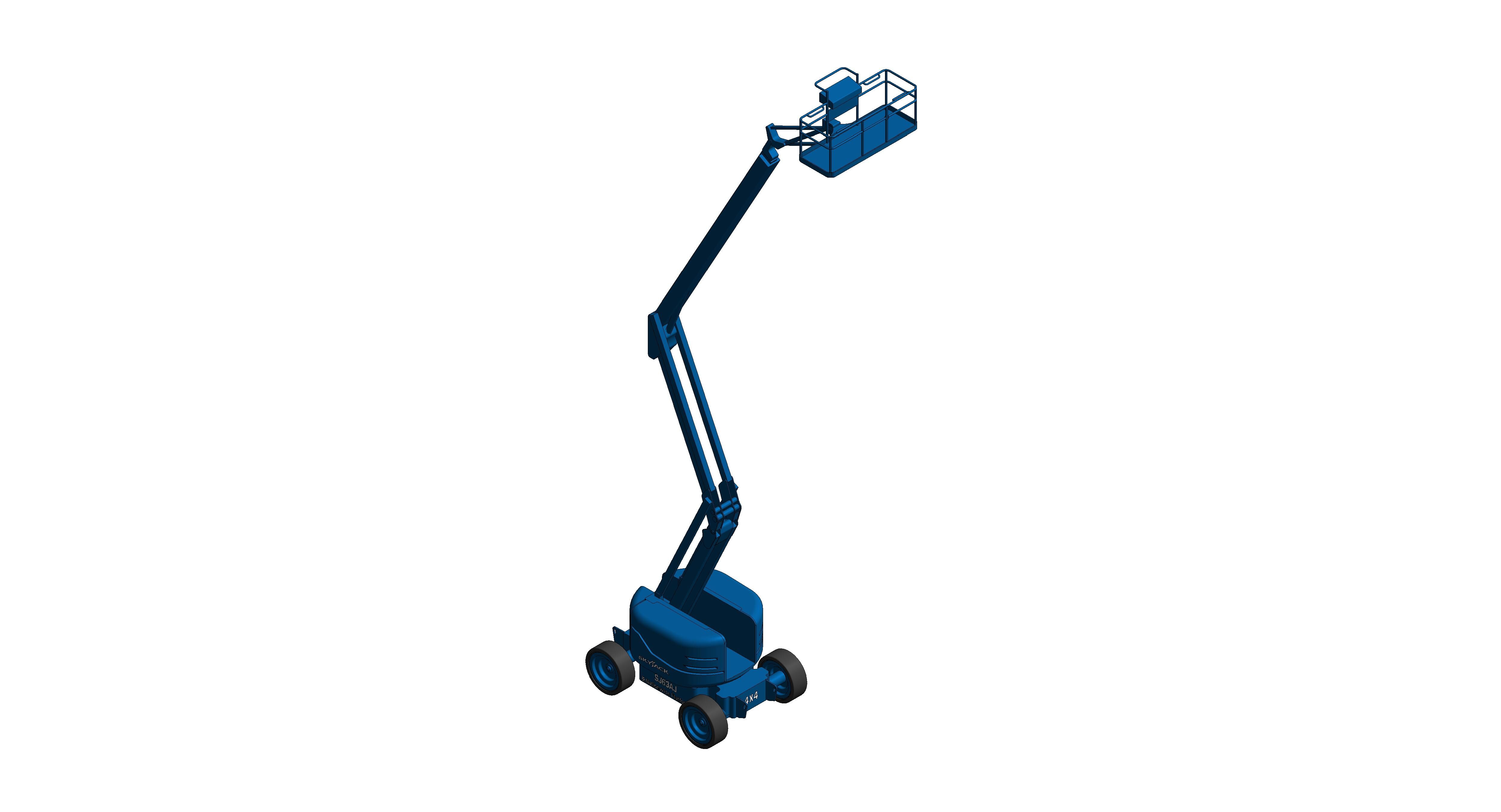

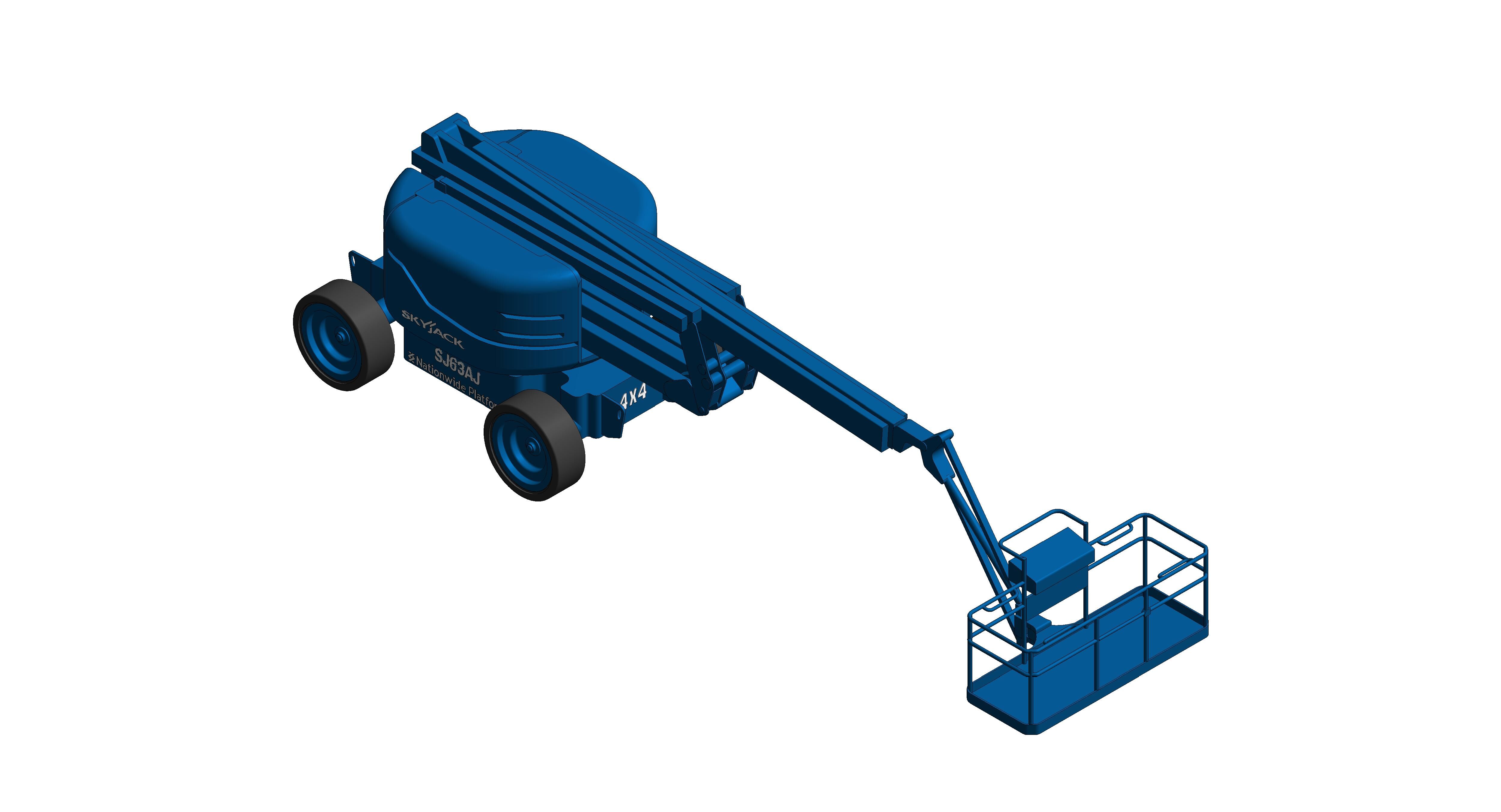

SJ63AJ - 21.2m Articulating Boom

Working height of 21.2m, a horizontal reach of 12.1m, and an up and over clearance of 8.3m, this versatile machine has been designed for job ease in mind.

Object Data

1 Revision

Last Updated

21/06/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_Authorbimstore
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/articulating-boom-sj63aj/document/object-user-guide
Accessibility Performancen/a
Accessories And Options32 x 72” Platform - 3.5 kW generator (includes hydraulic oil cooler) - Welder ready package (includes 12 kW generator, hydraulic oil cooler, 3 phase power connection in platform, and welder mount.) - Welder package (includes 12 kW generator, hydraulic oil cooler, 3 phase power connection in platform, welder mount and Lincoln V275-S welder) - Cold weather start kit (includes cold start engine oil, battery blanket, and hydraulic tank heater) - Arctic weather package (includes arctic engine oil, battery blanket, hydraulic tank heater, block heater, arctic hydraulic oil, arctic platform rotator and arctic gear oil in the axels and swing drive. Glow plugs, arctic hydraulic hoses (all), and oversized foot switch cover are also included (standard equipment). - Extra propane tank and bracket (dual fuel only) - Hydraulic oil cooler - Flashing light - 1/2” airline to platform - Positive air shut-off valve - Non destructive testing - Glazier kit - Hostile environment package (Includes cylinder bellows, boom wipers, covers for the fly boom cutouts, and control box cover) - Auxiliary top rail (36 x 96” platform only) - Control box cover - Pipe rack - Side gate - Warranty Options (3 year or 5 year plans available)
Assembly CodeE1030100
Asset TypeMovable
Axle Oscillation1016 mm
BIM Object NameNationwidePlatforms_ArticulatingBoom_SJ63AJ
Capacity227 KG
Classification NameUniclass2015
Classification ValuePr_65_80_47_95
Code Performancen/a
ColorOrange and Grey
Constituentsn/a
Created Bybim@nationwideplatforms.co.uk
Created On2021-05-01T09:00:00
DescriptionSkyjack - Vertical lifting platforms Articulating Boom
Documentation Certificateswww.bimstore.co/products/articulating-boom-sj63aj/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/articulating-boom-sj63aj/document/installation-guide
Documentation Literaturewww.bimstore.co/products/articulating-boom-sj63aj/document/product-literature
Documentation Maintenancewww.bimstore.co/products/articulating-boom-sj63aj/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/articulating-boom-sj63aj/document/technical-data-sheet
Duration UnitYears
Engine74 HP
Expected Life0
FeaturesAxle based 4WD system - Operator controlled locking rear differential and limited slip front differential - Oscillating axle - Drivable at full height - 360° continuous turret rotation - 45% Gradeability - Diesel or dual fuel engine - Swing out engine tray - Swing up cowlings - Modular platform railing system - Tri-entry sliding mid-rails - 110V AC outlet on platform with GFI - Direction sensing drive and steer controls - Proportional controls - Relay based control system - Color coded and numbered wiring - Hourmeter - Operator horn - All motion alarm - Tie down/lifting lugs - Wet disc SAHR brakes (front and rear axle) - 10.5 x 17.5 grip lug air-filled tires - Telematics ready
FinishPainted Steel
Fuel Tank Capacity115 L
Graden/a
Gradeability45%
Ground Clearance330 mm
Horizontal Reach12190 mm
Hydraulic Reservoir115 L
Ifc Export AsIfcTransportElement
Ifc Export TypeIfcTransportElementType
Inside Turning Radius2210 mm
Jib Length1680 mm
Jib Range+65 / -60 Degrees
KeynoteX
Local Floor Load With Rated Load1,151 kPa
Logo MaterialNationwidePlatforms_White_Logo
ManufacturerNationwide Platforms (Skyjack)
Manufacturer NameNationwide Platforms (Skyjack)
MaterialMetal
Maximum Number Of Persons2
ModelVertical lifting platforms
Model NumberSJ63AJ
Model ReferenceVertical lifting platforms
NBS DescriptionVertical lifting platforms
NBS Object NameNationwide Platforms - Vertical lifting platforms
NBS Office Master Tagn/a
NBS Reference90-80-65/350
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Outside Turning Radius5310
Overall Floor Load With Rated Load11.73 kPa
Overall Height2540 mm
Overall Length9140 mm
Overall Width2440 mm
Platform Height19380 mm
Platform Rotation170 Degrees
Platform Size910 mm x 2400 mm
Primary MaterialNationwidePlatforms_Blue_Primary
Product CodeSJ63 AJ
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Rotation360 Degrees
Shapen/a
Size9140mm (L) x 2440mm (W) x 2540mm (H)
Spare Partsn/a
Standard FeaturesAxle based 4WD system - Operator controlled locking rear differential and limited slip front differential - Oscillating axle - Drivable at full height - 360° continuous turret rotation - 45% Gradeability - Diesel or dual fuel engine - Swing out engine tray - Swing up cowlings - Modular platform railing system - Tri-entry sliding mid-rails - 110V AC outlet on platform with GFI - Direction sensing drive and steer controls - Proportional controls - Relay based control system - Color coded and numbered wiring - Hourmeter - Operator horn - All motion alarm - Tie down/lifting lugs - Wet disc SAHR brakes (front and rear axle) - 10.5 x 17.5 grip lug air-filled tires - Telematics ready
Tailswing0 mm
Tire Size10.5 x 17.5
Tire TypeGrip lug air-filled
Type CommentsVertical lifting platforms
Type NameVertical lifting platforms
Up And Over Height8380 mm
URLwww.nationwideplatforms.co.uk/en-gb
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborbim@nationwideplatforms.co.uk
Warranty Guarantor Partsbim@nationwideplatforms.co.uk
Weight9,616 KG
Wheelbase2440 mm
Working Height21210 mm
Zone MaterialNationwidePlatforms_Pink_Zone
