Billi Eco with Safety Dispenser

by Billi

Download Add to collection

Description

Instant boiling and chilled filtered water system with safety dispenser.

Leading the range the Eco boiling and chilled drinking water system is space saving, energy efficient and elegant. The functional style is designed for high use and meets green building design principles – providing you with the ultimate in environmentally sensitive appliances.

Safety Dispensers are ideal for use in critical care environments such as correctional centres and mental health facilities.

Vandal proof dispenser design mitigating possibility of forcefully being removed.
Simple push button operation
Water-proof operation control panel

Dispenser design	Safety Dispenser
Capacity	Up to 10 Persons
Underbench Size	340mm h x 180mm w x 500mm d
Product Code	901000V
Water Combination	Boiling \| Chilled

Object Data

1 Revision

Last Updated

14/05/2025

Available Software

BSB

Compliant

EPD

Not Available

Accompanying literature

Installation Guide

Product Literature

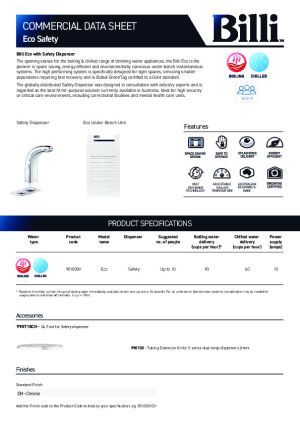

Technical Data Sheet

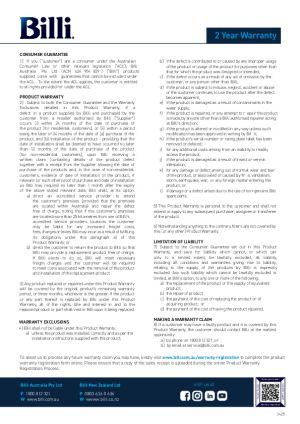

Warranty

Product Data Sheet

Object metadata

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Byinfo@billi.com.au
_Current Revision0
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/
Accessibility Performancen/a
Assembly CodeD2020
Asset TypeFixed
BIM Object NamePlumFixt_Assembly_Billi_Eco_SD
Boiling Water Delivery90 cups per hour
CapacityUp to 10
Chilled Sparkling Water Delivery60 cups per hour
Classification NameUniclass2015
Classification ValuePr_40_70_23_42
Code Performancen/a
ColorCH - Chrome
Constituentsn/a
Created Byinfo@billi.com.au
Created On2025-02-20T09:00:00
Cups Per Hour NoteBased on a set volume of water being drawn every 30 seconds at an inlet temperature of average temperature 21°C. Each cup is equivalent to 170ml.
CW ConnectionYes
Default Elevation0 mm
DescriptionInstant boiling and chilled filtered water system.
Dispenser DesignSafety Dispenser
Documentation Certificateswww.billi.com.au/product/billi-eco-with-safety-dispenser/
Documentation Installation Guidewww.billi.com.au/wp-content/uploads/2021/03/615011_Billi-Installation-Guide_Eco-8pp_Rev04.pdf
Documentation Literaturewww.billi.com.au/wp-content/uploads/2021/03/Billi-Oct-2024_Commercial-Brochure_Digital_FA.pdf
Documentation Maintenancewww.billi.com.au/product/billi-eco-with-safety-dispenser/
Documentation Technicalwww.billi.com.au/wp-content/uploads/2017/07/Billi-Datasheets-Eco-Safety.pdf
Duration UnitYears
Expected Life0
FeaturesSmallest footprint available in capacity class. Energy efficient. Adjustable chilled temperature. Heat exchange technology. HACCP certified. BPA free.
Filter 1Filter : 5 Micron Fibron X
Filter 2Filter : 0.2 Micron Fibron XC
Filter 3Filter : HSD Fibron XT
Filter 4Filter : Sediment Only
Filter 5Filter : 0.2 Micron HF Sediment Only
Finishn/a
Graden/a
HW ConnectionNo
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.FAUCET
KeynoteN13
ManufacturerBilli
Manufacturer NameBilli
Materialn/a
ModelBilli Eco with Safety Dispenser
Model Number901000VCH
Model ReferenceBilli Eco with Safety Dispenser
NBS DescriptionInstant boiling and cold water taps
NBS Noten/a
NBS Object NameBilli - Instant boiling and cold water taps
NBS Office Master Tagn/a
NBS Reference90-15-35/485
Nominal Depth503 mm
Nominal Height340 mm
Nominal Length181 mm
Power SupplyA standard 10 amp power outlet is required, located no further than 1000mm from the underbench unit. The system is supplied with a 1 metre flex cord and plug
Production Year2025
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Tap MaterialBilli_Metal_Chrome
Type CommentsBilli Eco with Safety Dispenser Chrome (901000VCH)
Type NameBilli Eco with Safety Dispenser Chrome (901000VCH)
Underbench Size340mm h x 180mm w x 500mm d
Underbench Unit Depth503 mm
Underbench Unit Height340 mm
Underbench Unit Width181 mm
URLwww.billi.com.au/product/billi-eco-with-safety-dispenser/
Vent ConnectionNo
Warranty DescriptionAll components of the drinking water systems are covered by a 24-month warranty.
Warranty Duration Labor2
Warranty Duration Parts2
Warranty Duration UnitYears
Warranty Guarantor Laborservice@billi.com.au
Warranty Guarantor Partsservice@billi.com.au
Waste ConnectionNo
Water TypeBoiling Chilled
