Billi Home BA with XL Levered Dispenser

by Billi

Download Add to collection

Description

Billi Home BA with XL Levered Dispenser.

Instant boiling and still water, Billi Home BA offers exceptional home convenience and is ideal for making hot drinks and reducing food preparation time with instant boiling water.

The XL levered dispenser is streamlined and elegant with a concealed safety lock feature to protect against scalding. It is simply operated with position-sensitive levers and is available in a range of finishes to suit your kitchen decor.

Supplied standard with 994052 sub-micron filtration from BWT to deliver the freshest tasting water and ensure the health of your family & guests.

Dispenser design	XL Levered
Underbench Size	340mm h x 180mm w x 360mm d
Product Code	914000L
Water Combination	Boiling \| Still

Object Data

1 Revision

Last Updated

20/06/2025

Available Software

BSB

Compliant

EPD

Not Available

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Byinfo@billi.com.au
_Current Revision0
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/
310 UnitPlumFixt_Billi_UnderbenchUnit_Sahara : Billi Sahara 310
Accessibility Performancen/a
Assembly CodeD2020
Asset TypeFixed
BIM Object NamePlumFixt_Assembly_Billi_HomeBA_XL
Boiling Water Delivery90 cups per hour
CapacityUp to 10
Chilled Sparkling Water Deliveryn/a
Classification NameUniclass2015
Classification ValuePr_40_70_23_42
Code Performancen/a
ColorBR - Brushed
Constituentsn/a
Created Byinfo@billi.com.au
Created On2025-06-02T09:00:00
Cups Per Hour NoteBased on a set volume of water being drawn every 30 seconds at an inlet temperature of average temperature 21°C. Each cup is equivalent to 170ml.
CW ConnectionYes
Default Elevation0 mm
DescriptionInstant boiling and still filtered water systems.
Dispenser DesignXL Levered Dispenser
Documentation Certificateswww.billi.com.au/product/billi-home-ba-with-xl-levered-dispenser/
Documentation Installation Guidewww.billi.com.au/product/billi-home-ba-with-xl-levered-dispenser/
Documentation Literaturewww.billi.com.au/wp-content/uploads/2021/03/6781_Billi-March-2025-Home-Brochure_Digital_FA-1.pdf
Documentation Maintenancewww.billi.com.au/product/billi-home-ba-with-xl-levered-dispenser/

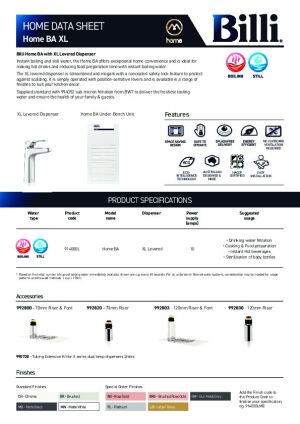

Documentation Technicalwww.billi.com.au/wp-content/uploads/2022/02/6488_Billi_Home-Datasheets-Home-BA-XL_AU_FA.pdf
Duration UnitYears
Expected Life0
FeaturesSpace Saving Design. Safe To Operate. Energy Efficient. Australian Designed & Made. Range of Finishes.
Filter 1Filter : 5 Micron Fibron X
Filter 2Filter : 0.2 Micron Fibron XC
Filter 3Filter : HSD Fibron XT
Filter 4Filter : Sediment Only
Filter 5Filter : 0.2 Micron HF Sediment Only
Finishn/a
Font MaterialBilli_Metal_Brushed
Graden/a
HW ConnectionNo
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.FAUCET
KeynoteN13
Left Lever MaterialBilli_Metal_Brushed
ManufacturerBilli
Manufacturer NameBilli
Materialn/a
ModelBilli Home BA with XL Levered Dispenser
Model Number914000LBR
Model ReferenceBilli Home BA with XL Levered Dispenser Brushed
NBS DescriptionInstant boiling and cold water taps
NBS Noten/a
NBS Object NameBilli - Instant boiling and cold water taps
NBS Office Master Tagn/a
NBS Reference90-15-35/485
Nominal Depth363 mm
Nominal Height340 mm
Nominal Length187 mm
Power SupplyA standard 10 amp power outlet is required, located no further than 1000mm from the underbench unit. The system is supplied with a 1 metre flex cord and plug
Production Year2025
Referenced Standardn/a
Replacement Costn/a
Right Lever MaterialBilli_Metal_Brushed
Riser MaterialBilli_Metal_Brushed
Shapen/a
Sizen/a
Spare Partsn/a
Tap MaterialBilli_Metal_Brushed
Type CommentsBilli Home BA with XL Levered Dispenser Brushed (914000LBR)
Type NameBilli Home BA with XL Levered Dispenser Brushed (914000LBR)
Underbench Size340mm h x 180mm w x 360mm d
Underbench UnitPlumFixt_Billi_UnderbenchUnit_Sahara : Billi Sahara 310
Underbench Unit Depth363 mm
Underbench Unit Height340 mm
Underbench Unit Width187 mm
URLwww.billi.com.au/product/billi-home-ba-with-xl-levered-dispenser/
Vent ConnectionNo

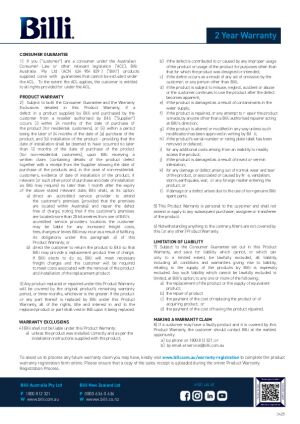

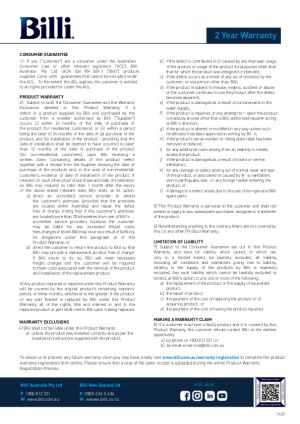

Warranty DescriptionAll components of the drinking water systems are covered by a 24-month warranty.
Warranty Duration Labor2
Warranty Duration Parts2
Warranty Duration UnitYears
Warranty Guarantor Laborservice@billi.com.au
Warranty Guarantor Partsservice@billi.com.au
Waste ConnectionNo
Water TypeBoiling Still
