Billi Home CS with Dual Levered Slimline Dispenser

by Billi

Download Add to collection

Description

Billi Home CS with Dual Levered Slimline Dispenser.

Refreshing chilled & sparkling filtered water conveniently at your fingertips. With ice bank technology providing superior capacity & recovery, the Billi Home CS is ideal for typical family use, glass after glass.

The stylish dual levered slimline dispenser is available in a range of finishes to complement any kitchen décor.

Supplied standard with 994052 sub-micron filtration from BWT to deliver the freshest tasting water and ensure the health of your family & guests.

Dispenser design	Dual Levered Slimline Dispenser
Underbench Size	410mm h x 255mm w x 420mm d
Product Code	913100DCH
Water Combination	Chilled \| Sparkling

Object Data

1 Revision

Last Updated

20/06/2025

Available Software

BSB

Compliant

EPD

Not Available

Accompanying literature

Installation Guide

Product Literature

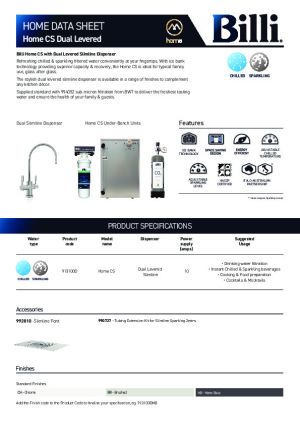

Technical Data Sheet

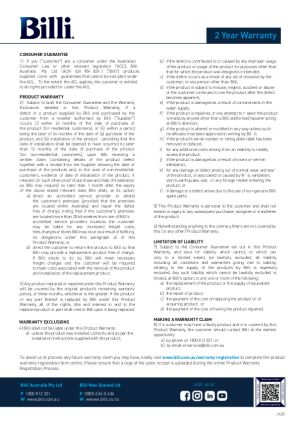

Warranty

Product Data Sheet

Object metadata

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Byinfo@billi.com.au
_Current Revision0
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/
Accessibility Performancen/a
Assembly CodeD2020
Asset TypeFixed
BIM Object NamePlumFixt_Assembly_Billi_HomeCS_D
Boiling Water Deliveryn/a
CapacityUp to 40
Chilled Sparkling Water Delivery100 cups per hour
Classification NameUniclass2015
Classification ValuePr_40_70_23_42
Code Performancen/a
ColorBR - Brushed
Constituentsn/a
Created Byinfo@billi.com.au
Created On2025-06-02T09:00:00
Cups Per Hour NoteBased on a set volume of water being drawn every 30 seconds at an inlet temperature of average temperature 21°C. Each cup is equivalent to 170ml.
CW ConnectionYes
Default Elevation0 mm
DescriptionProfessional grade chilled & sparkling system.
Dispenser DesignDual Lever Dispenser
Documentation Certificateswww.billi.com.au/product/billi-home-cs-with-dual-levered-slimline-dispenser/
Documentation Installation Guidewww.billi.com.au/wp-content/uploads/2021/10/610313_Billi-Installation-Guide_B-3000-Sparkling-8pp_Rev05.pdf
Documentation Literaturewww.billi.com.au/wp-content/uploads/2021/03/6781_Billi-March-2025-Home-Brochure_Digital_FA-1.pdf
Documentation Maintenancewww.billi.com.au/product/billi-home-cs-with-dual-levered-slimline-dispenser/
Documentation Technicalwww.billi.com.au/wp-content/uploads/2022/02/6488_Billi_Home-Datasheets-Home-CS-Dual-Levered-Slimline-Dispenser_AU_FA.pdf
Duration UnitYears
Expected Life0
FeaturesEnergy Efficient. Adjustable Chilled Temperature. Ice Bank Technology. Space Saving Design. Adjustable Sparkling Level. HACCP Certified. Italian-Australian Partnership.
Filter 1Filter : 5 Micron Fibron X
Filter 2Filter : 0.2 Micron Fibron XC
Filter 3Filter : HSD Fibron XT
Filter 4Filter : Sediment Only
Filter 5Filter : 0.2 Micron HF Sediment Only
Finishn/a
Font MaterialBilli_Metal_Brushed
Graden/a
HW ConnectionNo
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.FAUCET
KeynoteN13
ManufacturerBilli
Manufacturer NameBilli
Materialn/a
ModelBilli Home CS 100 with Dual Levered Slimline Dispenser
Model Number913100DBR
Model ReferenceBilli Home CS with Dual Levered Slimline Dispenser Brushed
NBS DescriptionInstant boiling and cold water taps
NBS Noten/a
NBS Object NameBilli - Instant boiling and cold water taps
NBS Office Master Tagn/a
NBS Reference90-15-35/485
Nominal Depth486 mm
Nominal Height383 mm
Nominal Length233 mm
Power SupplyA single standard 10 amp power outlet is required, located no further than 1000mm from the underbench unit. The system is supplied with a 1 metre flex cord and plug
Production Year2025
Referenced Standardn/a
Replacement Costn/a
Riser MaterialBilli_Metal_Brushed
Shapen/a
Sizen/a
Spare Partsn/a
Tap MaterialBilli_Metal_Brushed
Type CommentsBilli Home CS with Dual Levered Slimline Dispenser Brushed (913100DBR)
Type NameBilli Home CS with Dual Levered Slimline Dispenser Brushed (913100DBR)
Underbench Size410mm h x 255mm w x 420mm d
Underbench Unit Depth486 mm
Underbench Unit Height383 mm
Underbench Unit Width233 mm
URLwww.billi.com.au/product/billi-home-cs-with-dual-levered-slimline-dispenser/
Vent ConnectionNo
Warranty DescriptionAll components of the drinking water systems are covered by a 24-month warranty.
Warranty Duration Labor2
Warranty Duration Parts2
Warranty Duration UnitYears
Warranty Guarantor Laborservice@billi.com.au
Warranty Guarantor Partsservice@billi.com.au
Waste ConnectionNo
Water TypeChilled Sparkling
