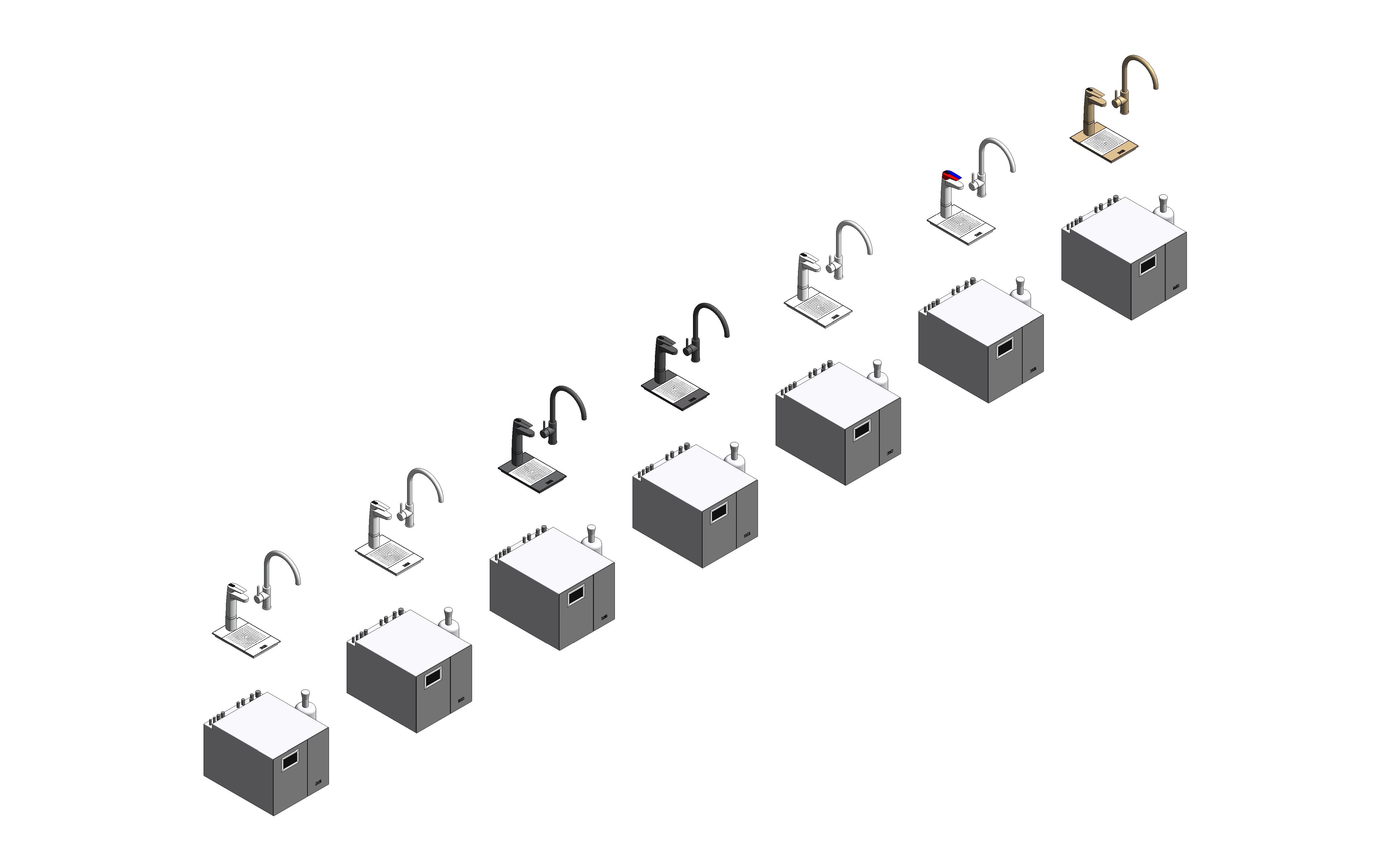

Billi OmniOne Plus 9 with XL Levered Dispenser & Mixer

by Billi

Download Add to collection

Description

The intersection of genuine innovation and sustainable design, OmniOne integrates Billi’s renowned water-cooling and energy reclaim technologies into a single space-saving under
bench control module with the added bonus of hot water for the sink.

With a 30% uplift in performance, whisper quiet in operation, ergonomic and acutely focused on the wellness & hygiene of it’s users, the OmniOne Plus 9 range is the ultimate inclusion to
the modern workplace or facility.

Specified for drinking water with the DDA compliant XL dispenser, hot water is supplied by the Mixer without the need to install a separate hot water service.

Dispenser design	XL Levered
Mixer Design	Gooseneck, Paddle or Square Mixer
Capacity	Up to 60 Persons
Underbench Size	Billi OmniOne Unit 355mm h x 395mm w x 495mm d CO2 Cylinder 400mm h x 105mm w
Product Code	Gooseneck = 926065LG
	Paddle = 926065LP
	Square = 926065LS
Water Combination	Boiling \| Chilled \| Sparkling \| Plus

Object Data

1 Revision

Last Updated

12/05/2025

Available Software

BSB

Compliant

EPD

Not Available

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Byinfo@billi.com.au
_Current Revision0
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/
Accessibility Performancen/a
Assembly CodeD2020
Asset TypeFixed
BIM Object NamePlumFixt_Assembly_Billi_OmniOnePlus_XL
Boiling Water Delivery180 cups per hour
CapacityUp to 60
Chilled Sparkling Water Delivery220 cups per hour
Classification NameUniclass2015
Classification ValuePr_40_70_23_42
Code Performancen/a
ColorBR - Brushed
Constituentsn/a
Created Byinfo@billi.com.au
Created On2025-02-20T09:00:00
Cups Per Hour NoteBased on a set volume of water being drawn every 30 seconds at an inlet temperature of average temperature 21°C. Each cup is equivalent to 170ml.
CW ConnectionYes
Default Elevation0 mm
DescriptionThe Billi OmniOne Plus 9 is the latest iteration of multifunction filtered drinking water appliances.
Dispenser DesignXL Levered Dispenser
Documentation Certificateswww.billi.com.au/product/billi-omnione-plus9-xl-levered-dispenser-gooseneck-mixer/

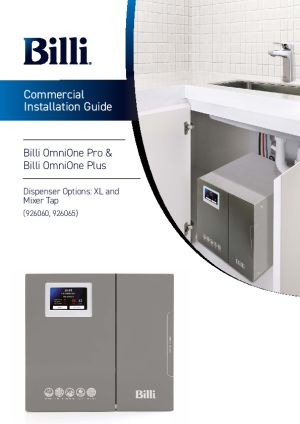

Documentation Installation Guidewww.billi.com.au/wp-content/uploads/2023/09/6714_Billi-Installation-Guide-A4-OmniOne-Comm_Digital_FA.pdf
Documentation Literaturewww.billi.com.au/wp-content/uploads/2021/03/Billi-Oct-2024_Commercial-Brochure_Digital_FA.pdf
Documentation Maintenancewww.billi.com.au/product/billi-omnione-plus9-xl-levered-dispenser-gooseneck-mixer/
Documentation Technicalwww.billi.com.au/wp-content/uploads/2023/09/6401_Billi_Comm-Datasheets-OmniOne-Plus-9-XL-Gooseneck_FA.pdf
Duration UnitYears
Expected Life0
FeaturesEnergy efficient. Adjustable boiling and chilled temperature. Adjustable sparkling level. Heat of exchange & energy reclaim technology. HACCP certified. No cupboard ventilation required. BPA free.
Filter 1Filter : 5 Micron Fibron X
Filter 2Filter : 0.2 Micron Fibron XC
Filter 3Filter : HSD Fibron XT
Filter 4Filter : Sediment Only
Filter 5Filter : 0.2 Micron HF Sediment Only
Finishn/a
Font MaterialBilli_Metal_Brushed
Graden/a
HW ConnectionNo
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.FAUCET
KeynoteN13
Left Lever MaterialBilli_Metal_Brushed
ManufacturerBilli
Manufacturer NameBilli
Materialn/a
Mixer TypePlumFixt_Billi_Mixer_Gooseneck : Standard
ModelBilli OmniOne Plus 9 with XL Levered Dispenser & Gooseneck Mixer
Model Number926065LGBR
Model ReferenceBilli OmniOne Plus 9 with XL Levered Dispenser & Gooseneck Mixer
NBS DescriptionInstant boiling and cold water taps
NBS Noten/a
NBS Object NameBilli - Instant boiling and cold water taps
NBS Office Master Tagn/a
NBS Reference90-15-35/485
Nominal Depth494 mm
Nominal Height347 mm
Nominal Length388 mm
Power SupplyA standard 10 amp power outlet is required, located no further than 1000mm from the underbench unit. The system is supplied with a 1 metre flex cord and plug
Production Year2025
Referenced Standardn/a
Replacement Costn/a
Right Lever MaterialBilli_Metal_Brushed
Riser MaterialBilli_Metal_Brushed
Shapen/a
Sizen/a
Spare Partsn/a
Tap MaterialBilli_Metal_Brushed
Type CommentsBilli OmniOne Plus 9 with XL Levered Dispenser & Gooseneck Mixer Brushed (926065LGBR)
Type NameBilli OmniOne Plus 9 with XL Levered Dispenser & Gooseneck Mixer Brushed (926065LGBR)
Underbench SizeBilli OmniOne Unit 355mm h x 395mm w x 495mm d CO2 Cylinder 400mm h x 105mm w
Underbench Unit Depth494 mm
Underbench Unit Height347 mm
Underbench Unit Width388 mm
URLwww.billi.com.au/product/billi-omnione-plus9-xl-levered-dispenser-gooseneck-mixer/
Vent ConnectionNo

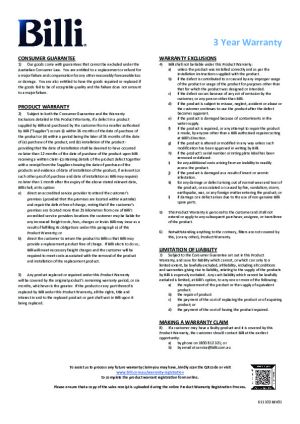

Warranty DescriptionThe Billi OmniOne Range is covered by a comprehensive 3 year warranty on all parts and labour.
Warranty Duration Labor3
Warranty Duration Parts3
Warranty Duration UnitYears
Warranty Guarantor Laborservice@billi.com.au
Warranty Guarantor Partsservice@billi.com.au
Waste ConnectionNo
Water TypeBoiling Chilled Sparkling
