Billi OmniOne Pro60 with Gooseneck Multifunction Mixer Tap

by Billi

Download Add to collection

Description

The OmniOne Pro60 is the latest iteration of multifunction filtered drinking water appliances from Billi. The intersection of genuine innovation and sustainable design, OmniOne integrates Billi’s renowned water-cooling and energy reclaim technologies into a single space-saving under bench control module.
With a 30% uplift in performance, whisper quiet in operation, ergonomic and acutely focused on the wellness & hygiene of it’s users, the OmniOne Pro60 range is the ultimate inclusion to the modern workplace or facility.

The Good Design Award Winning Multifunction Mixer tap complements the space saving and multifunctional approach of Billi’s OmniOne range perfectly, negating the requirement for an additional domestic supply mixer tap while providing a sleek solution to dispensing filtered water.

Dispenser design	Gooseneck Multifunction Mixer Tap - 5 star WELS
Capacity	Up to 60 Persons
Underbench Size	Billi OmniOne Unit 355mm h x 395mm w x 495mm d CO2 Cylinder 400mm h x 105mm w
Product Code	926060G
Water Combination	Boiling \| Chilled \| Sparkling

Object Data

1 Revision

Last Updated

12/05/2025

Available Software

BSB

Compliant

EPD

Not Available

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Byinfo@billi.com.au
_Current Revision0
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/
Accessibility Performancen/a
Assembly CodeD2020
Asset TypeFixed
BIM Object NamePlumFixt_Assembly_Billi_OmniOne_G
Boiling Water Delivery180 cups per hour
CapacityUp to 60
Chilled Sparkling Water Delivery220 cups per hour
Classification NameUniclass2015
Classification ValuePr_40_70_23_42
Code Performancen/a
ColorBR - Brushed
Constituentsn/a
Created Byinfo@billi.com.au
Created On2025-02-20T09:00:00
Cups Per Hour NoteBased on a set volume of water being drawn every 30 seconds at an inlet temperature of average temperature 21°C. Each cup is equivalent to 170ml.
CW ConnectionYes
Default Elevation0 mm
DescriptionThe Billi OmniOne is the latest iteration of multifunction filtered drinking water appliances.
Dispenser DesignGooseneck Multifunction Mixer Tap
Documentation Certificateswww.billi.com.au/product/billi-omnione-pro60-with-gooseneck-multifunction-mixer-tap/

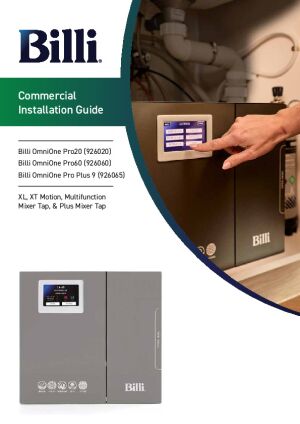

Documentation Installation Guidewww.billi.com.au/wp-content/uploads/2023/09/6714_Billi-Installation-Guide-A4-OmniOne-Comm_Digital_FA.pdf
Documentation Literaturewww.billi.com.au/wp-content/uploads/2021/03/Billi-Oct-2024_Commercial-Brochure_Digital_FA.pdf
Documentation Maintenancewww.billi.com.au/product/billi-omnione-pro60-with-gooseneck-multifunction-mixer-tap/
Documentation Technicalwww.billi.com.au/wp-content/uploads/2024/10/Billi_Comm-Datasheets-Pro60_MMT_FA.pdf
Duration UnitYears
Expected Life0
FeaturesEnergy efficient. Adjustable boiling and chilled temperature. Adjustable sparkling level. Heat exchange & energy reclaim technology. HACCP certified. No cupboard ventilation required. BPA free.
Filter 1Filter : 5 Micron Fibron X
Filter 2Filter : 0.2 Micron Fibron XC
Filter 3Filter : HSD Fibron XT
Filter 4Filter : Sediment Only
Filter 5Filter : 0.2 Micron HF Sediment Only
Finishn/a
Graden/a
HW ConnectionNo
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.FAUCET
KeynoteN13
ManufacturerBilli
Manufacturer NameBilli
Materialn/a
ModelBilli OmniOne Pro60 with Gooseneck Multifunction Mixer Tap
Model Number926060GBR
Model ReferenceBilli OmniOne Pro60 with Gooseneck Multifunction Mixer Tap
NBS DescriptionInstant boiling and cold water taps
NBS Noten/a
NBS Object NameBilli - Instant boiling and cold water taps
NBS Office Master Tagn/a
NBS Reference90-15-35/485
Nominal Depth494 mm
Nominal Height347 mm
Nominal Length388 mm
Power SupplyA standard 10 amp power outlet is required, located no further than 1000mm from the underbench unit. The system is supplied with a 1 metre flex cord and plug
Production Year2025
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Tap MaterialBilli_Metal_Brushed
Type CommentsBilli OmniOne Pro60 with Gooseneck Multifunction Mixer Tap Brushed (926060GBR)
Type NameBilli OmniOne Pro60 with Gooseneck Multifunction Mixer Tap Brushed (926060GBR)
Underbench SizeBilli OmniOne Unit 355mm h x 395mm w x 495mm d CO2 Cylinder 400mm h x 105mm w
Underbench Unit Depth494 mm
Underbench Unit Height347 mm
Underbench Unit Width388 mm
URLwww.billi.com.au/product/billi-omnione-pro60-with-gooseneck-multifunction-mixer-tap/
Vent ConnectionNo

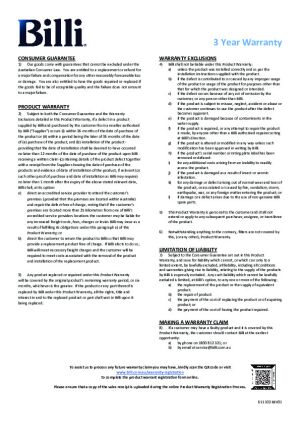

Warranty DescriptionThe Billi OmniOne Range is covered by a comprehensive 3 year warranty on all parts and labour.
Warranty Duration Labor3
Warranty Duration Parts3
Warranty Duration UnitYears
Warranty Guarantor Laborservice@billi.com.au
Warranty Guarantor Partsservice@billi.com.au
Waste ConnectionNo
Water TypeBoiling Chilled Sparkling
