Billi OmniOne Pro60 with XL Levered Dispenser

by Billi

Download Add to collection

Description

The OmniOne Pro60 is the latest iteration of multifunction filtered drinking water appliances from Billi.

The intersection of genuine innovation and sustainable design, OmniOne integrates Billi’s renowned water-cooling and energy reclaim technologies into a single space-saving under bench control module.

With a 30% uplift in performance, whisper quiet in operation, ergonomic and acutely focused on the wellness & hygiene of it’s users, the OmniOne Pro60 range is the ultimate inclusion to the modern workplace or facility.

Specified with the XL dispenser, all three types of water are safely dispensed from a single DDA compliant fixture with position sensitive levers.

Dispenser design	XL Levered
Capacity	Up to 60 Persons
Underbench Size	Billi OmniOne Unit 355mm h x 395mm w x 495mm d CO2 Cylinder 400mm h x 105mm w
Product Code	926060L
Water Combination	Boiling \| Chilled \| Sparkling

Object Data

1 Revision

Last Updated

12/05/2025

Available Software

BSB

Compliant

EPD

Not Available

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Byinfo@billi.com.au
_Current Revision0
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/
Accessibility Performancen/a
Assembly CodeD2020
Asset TypeFixed

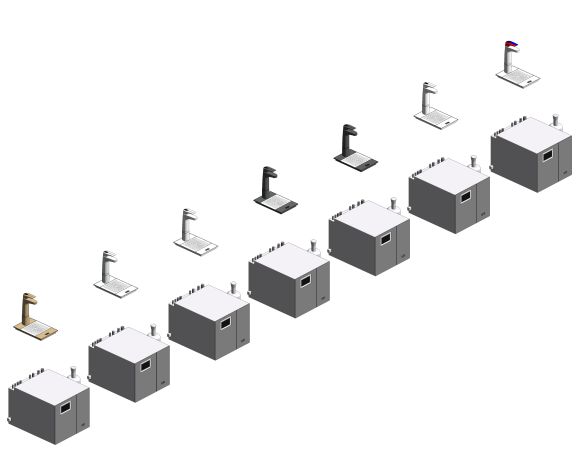

BIM Object NamePlumFixt_Assembly_Billi_OmniOne_XL
Boiling Water Delivery180 cups per hour
CapacityUp to 60
Chilled Sparkling Water Delivery220 cups per hour
Classification NameUniclass2015
Classification ValuePr_40_70_23_42
Code Performancen/a
ColorBR - Brushed
Constituentsn/a
Created Byinfo@billi.com.au
Created On2025-02-20T09:00:00
Cups Per Hour NoteBased on a set volume of water being drawn every 30 seconds at an inlet temperature of average temperature 21°C. Each cup is equivalent to 170ml.
CW ConnectionYes
Default Elevation0 mm
DescriptionThe Billi OmniOne is the latest iteration of multifunction filtered drinking water appliances.
Dispenser DesignXL Levered Dispenser
Documentation Certificateswww.billi.com.au/product/billi-omnione-pro60-with-xl-levered-dispenser/

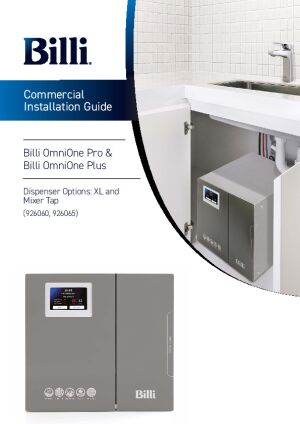

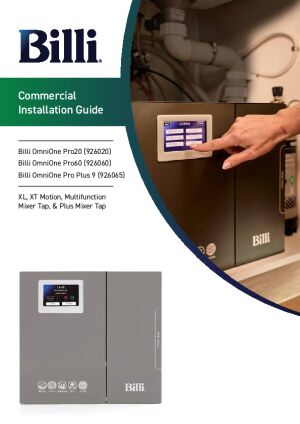

Documentation Installation Guidewww.billi.com.au/wp-content/uploads/2023/09/6714_Billi-Installation-Guide-A4-OmniOne-Comm_Digital_FA.pdf

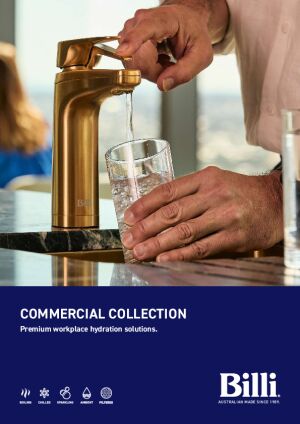

Documentation Literaturewww.billi.com.au/wp-content/uploads/2021/03/Billi-Oct-2024_Commercial-Brochure_Digital_FA.pdf
Documentation Maintenancewww.billi.com.au/product/billi-omnione-pro60-with-xl-levered-dispenser/

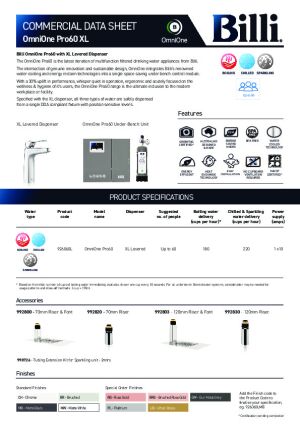

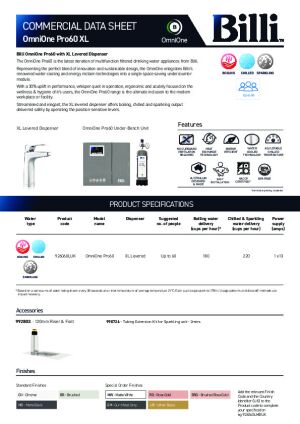

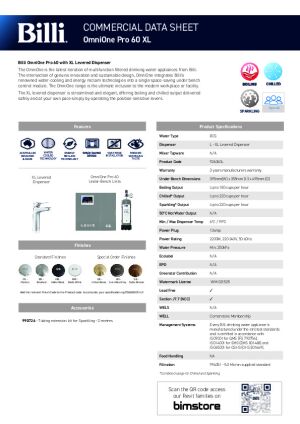

Documentation Technicalwww.billi.com.au/wp-content/uploads/2023/09/6401_Billi_Comm-Datasheets-Pro60_XL_FA.pdf
Duration UnitYears
Expected Life0
FeaturesEnergy efficient. Adjustable boiling and chilled temperature. Adjustable sparkling level. Heat exchange & energy reclaim technology. HACCP certified. No cupboard ventilation required. BPA free.
Filter 1Filter : 5 Micron Fibron X
Filter 2Filter : 0.2 Micron Fibron XC
Filter 3Filter : HSD Fibron XT
Filter 4Filter : Sediment Only
Filter 5Filter : 0.2 Micron HF Sediment Only
Finishn/a
Font MaterialBilli_Metal_Brushed
Graden/a
HW ConnectionNo
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.FAUCET
KeynoteN13
Left Lever MaterialBilli_Metal_Brushed
ManufacturerBilli
Manufacturer NameBilli
Materialn/a
ModelBilli OmniOne Pro60 with XL Levered Dispenser
Model Number926060LBR
Model ReferenceBilli OmniOne Pro60 with XL Levered Dispenser
NBS DescriptionInstant boiling and cold water taps
NBS Noten/a
NBS Object NameBilli - Instant boiling and cold water taps
NBS Office Master Tagn/a
NBS Reference90-15-35/485
Nominal Depth494 mm
Nominal Height347 mm
Nominal Length388 mm
Power SupplyA standard 10 amp power outlet is required, located no further than 1000mm from the underbench unit. The system is supplied with a 1 metre flex cord and plug
Production Year2025
Referenced Standardn/a
Replacement Costn/a
Right Lever MaterialBilli_Metal_Brushed
Riser MaterialBilli_Metal_Brushed
Shapen/a
Sizen/a
Spare Partsn/a
Tap MaterialBilli_Metal_Brushed
Type CommentsBilli OmniOne Pro60 with XL Levered Dispenser Brushed (926060LBR)
Type NameBilli OmniOne Pro60 with XL Levered Dispenser Brushed (926060LBR)
Underbench SizeBilli OmniOne Unit 355mm h x 395mm w x 495mm d CO2 Cylinder 400mm h x 105mm w
Underbench Unit Depth494 mm
Underbench Unit Height347 mm
Underbench Unit Width388 mm
URLwww.billi.com.au/product/billi-omnione-pro60-with-xl-levered-dispenser/
Vent ConnectionNo

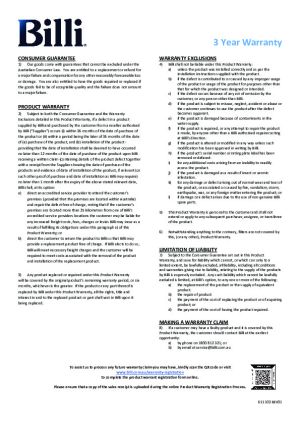

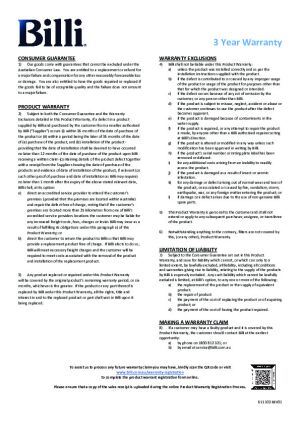

Warranty DescriptionThe Billi OmniOne Range is covered by a comprehensive 3 year warranty on all parts and labour.
Warranty Duration Labor3
Warranty Duration Parts3
Warranty Duration UnitYears
Warranty Guarantor Laborservice@billi.com.au
Warranty Guarantor Partsservice@billi.com.au
Waste ConnectionNo
Water TypeBoiling Chilled Sparkling
