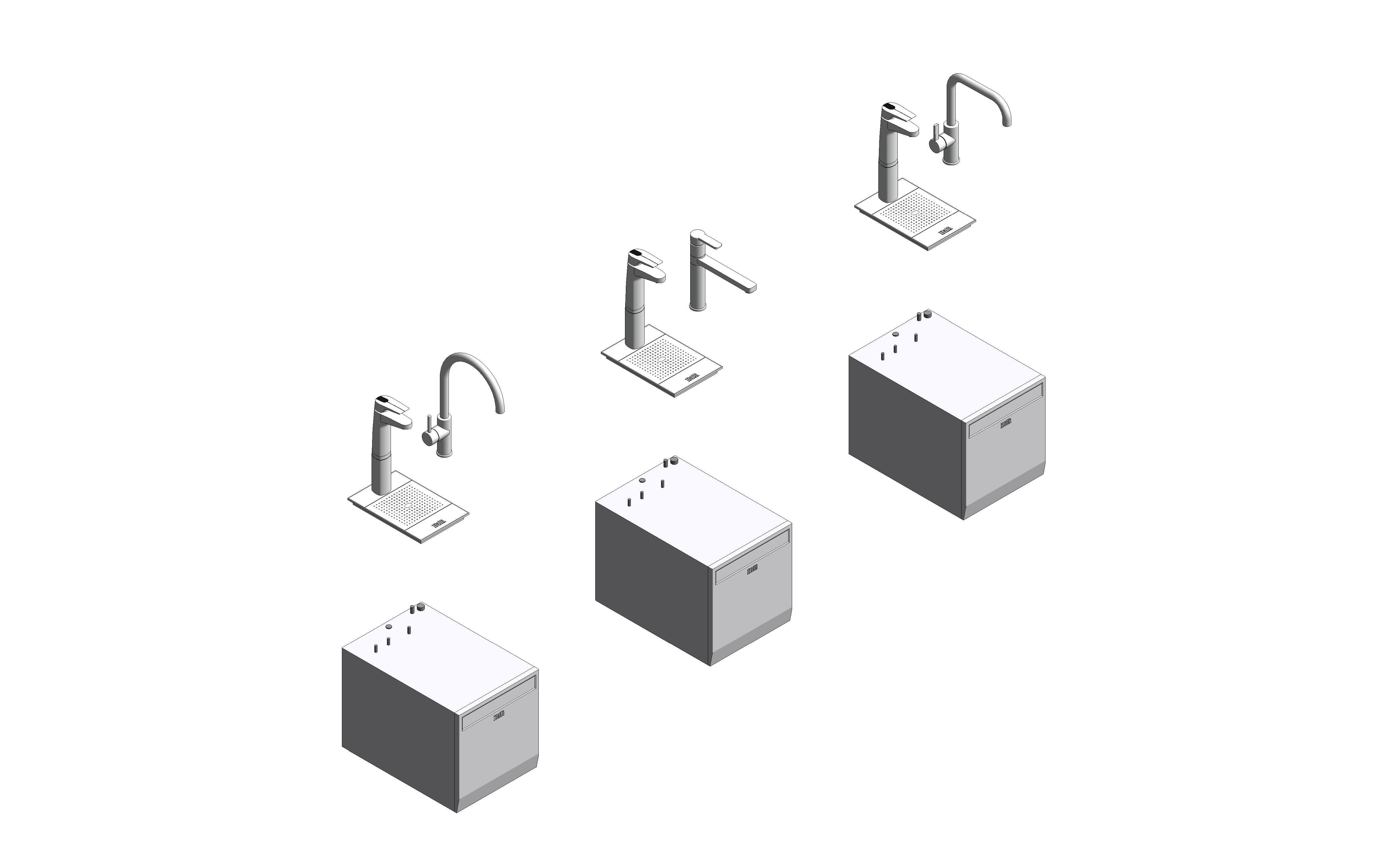

Billi Quadra Plus with XL Levered Dispenser & Mixer

by Billi

Download Add to collection

Description

Instant boiling and chilled filtered water system with XL levered dispenser Plus separate hot & cold mixer tap.

Enjoy all the benefits of Billi’s boiling and chilled system and more. The Quadra Plus also features a separate sink mixer tap, complete with its own generous hot and cold water supply allowing it to function as a hot water service for the mixer tap in addition to providing boiling and chilled drinking water. Plus models also feature a boiling water reserve to ensure you will have a boiling water supply after the hot water supply is fully drawn. Ideal for areas without a hot water supply.

The XL levered dispenser is streamlined and elegant. It is simply operated with position-sensitive levers.

Dispenser design	XL Levered
Mixer Design	Gooseneck, Paddle or Square Mixer
Capacity	Up to 25 - 100 Persons
Underbench Size	340mm h x 315mm w x 465mm d
Product Code	Gooseneck Range: 5 = 904025LG \| 9 = 904065LG \| 15 = 904105LG
	Paddle Range: 5 = 904025LP \| 9 = 904065LP \| 15 = 904105LP
	Square Range: 5 = 904025LS \| 9 = 904065LS \| 15 = 904105LS
Water Combination	Boiling \| Chilled \| Plus

Object Data

1 Revision

Last Updated

10/06/2025

Available Software

BSB

Compliant

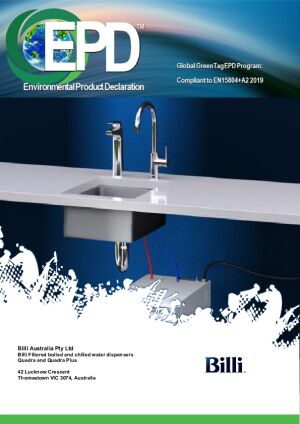

EPD

Available

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Byinfo@billi.com.au
_Current Revision0
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/
Accessibility Performancen/a
Assembly CodeD2020
Asset TypeFixed
BIM Object NamePlumFixt_Assembly_Billi_QuadraPlus_XL
Boiling Water Delivery250 cups per hour
CapacityUp to 100
Chilled Sparkling Water Delivery175 cups per hour
Classification NameUniclass2015
Classification ValuePr_40_70_23_42
Code Performancen/a
ColorBR - Brushed
Compact UnitPlumFixt_Billi_UnderbenchUnit_Quadra : Billi Quadra Compact
Constituentsn/a
Created Byinfo@billi.com.au
Created On2025-02-20T09:00:00
Cups Per Hour NoteBased on a set volume of water being drawn every 30 seconds at an inlet temperature of average temperature 21°C. Each cup is equivalent to 170ml.
CW ConnectionYes
Default Elevation0 mm
DescriptionInstant boiling and chilled filtered water system plus hot and cold mixer tap.
Dispenser DesignXL Levered Dispenser
Documentation Certificateswww.billi.com.au/product/billi-quadra-plus-15-with-xl-levered-dispenser-and-gooseneck-mixer/
Documentation Installation Guidewww.billi.com.au/wp-content/uploads/2021/10/614011_Billi-Installation-Guide_Quadra-Quadra-Plus-8pp_Rev04.pdf
Documentation Literaturewww.billi.com.au/wp-content/uploads/2021/03/Billi-Oct-2024_Commercial-Brochure_Digital_FA.pdf
Documentation Maintenancewww.billi.com.au/product/billi-quadra-plus-15-with-xl-levered-dispenser-and-gooseneck-mixer/
Documentation Technicalwww.billi.com.au/wp-content/uploads/2021/10/6401_Billi_Comm-Datasheets-Quadra-Plus-15-XL-Gooseneck_DigitalHR_FA.pdf
Duration UnitYears
Expected Life0
FeaturesEnergy efficient. Adjustable chilled temperature. Adjustable sparkling level. Heat exchange technology. HACCP certified. No cupboard ventilation required. BPA free.
Filter 1Filter : 5 Micron Fibron X
Filter 2Filter : 0.2 Micron Fibron XC
Filter 3Filter : HSD Fibron XT
Filter 4Filter : Sediment Only
Filter 5Filter : 0.2 Micron HF Sediment Only
Finishn/a
Font MaterialBilli_Metal_Brushed
Graden/a
HW ConnectionNo
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.FAUCET
KeynoteN13
Left Lever MaterialBilli_Metal_Brushed
ManufacturerBilli
Manufacturer NameBilli
Materialn/a
Mixer TypePlumFixt_Billi_Mixer_Gooseneck : Standard
ModelBilli Quadra Plus 15 with XL Levered Dispenser & Gooseneck Mixer
Model Number904105LGBR
Model ReferenceBilli Quadra Plus 15 with XL Levered Dispenser & Gooseneck Mixer
NBS DescriptionInstant boiling and cold water taps
NBS Noten/a
NBS Object NameBilli - Instant boiling and cold water taps
NBS Office Master Tagn/a
NBS Reference90-15-35/485
Nominal Depth466 mm
Nominal Height340 mm
Nominal Length315 mm
Power SupplyA standard 10 amp power outlet is required, located no further than 1000mm from the underbench unit. The system is supplied with a 1 metre flex cord and plug
Production Year2025
Referenced Standardn/a
Replacement Costn/a
Right Lever MaterialBilli_Metal_Brushed
Riser MaterialBilli_Metal_Brushed
Shapen/a
Sizen/a
Spare Partsn/a
Tap MaterialBilli_Metal_Brushed
Type CommentsBilli Quadra Plus 15 with XL Levered Dispenser & Gooseneck Mixer Brushed (904105LGBR)
Type NameBilli Quadra Plus 15 with XL Levered Dispenser & Gooseneck Mixer Brushed (904105LGBR)
Underbench Size340mm h x 315mm w x 465mm d
Underbench UnitPlumFixt_Billi_UnderbenchUnit_Quadra : Billi Quadra
Underbench Unit Depth466 mm
Underbench Unit Height340 mm
Underbench Unit Width315 mm
URLwww.billi.com.au/product/billi-quadra-plus-15-with-xl-levered-dispenser-and-gooseneck-mixer/
Vent ConnectionNo

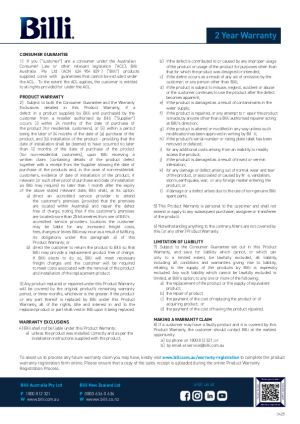

Warranty DescriptionAll components of the drinking water systems are covered by a 24-month warranty.
Warranty Duration Labor2
Warranty Duration Parts2
Warranty Duration UnitYears
Warranty Guarantor Laborservice@billi.com.au
Warranty Guarantor Partsservice@billi.com.au
Waste ConnectionNo
Water TypeBoiling Chilled
