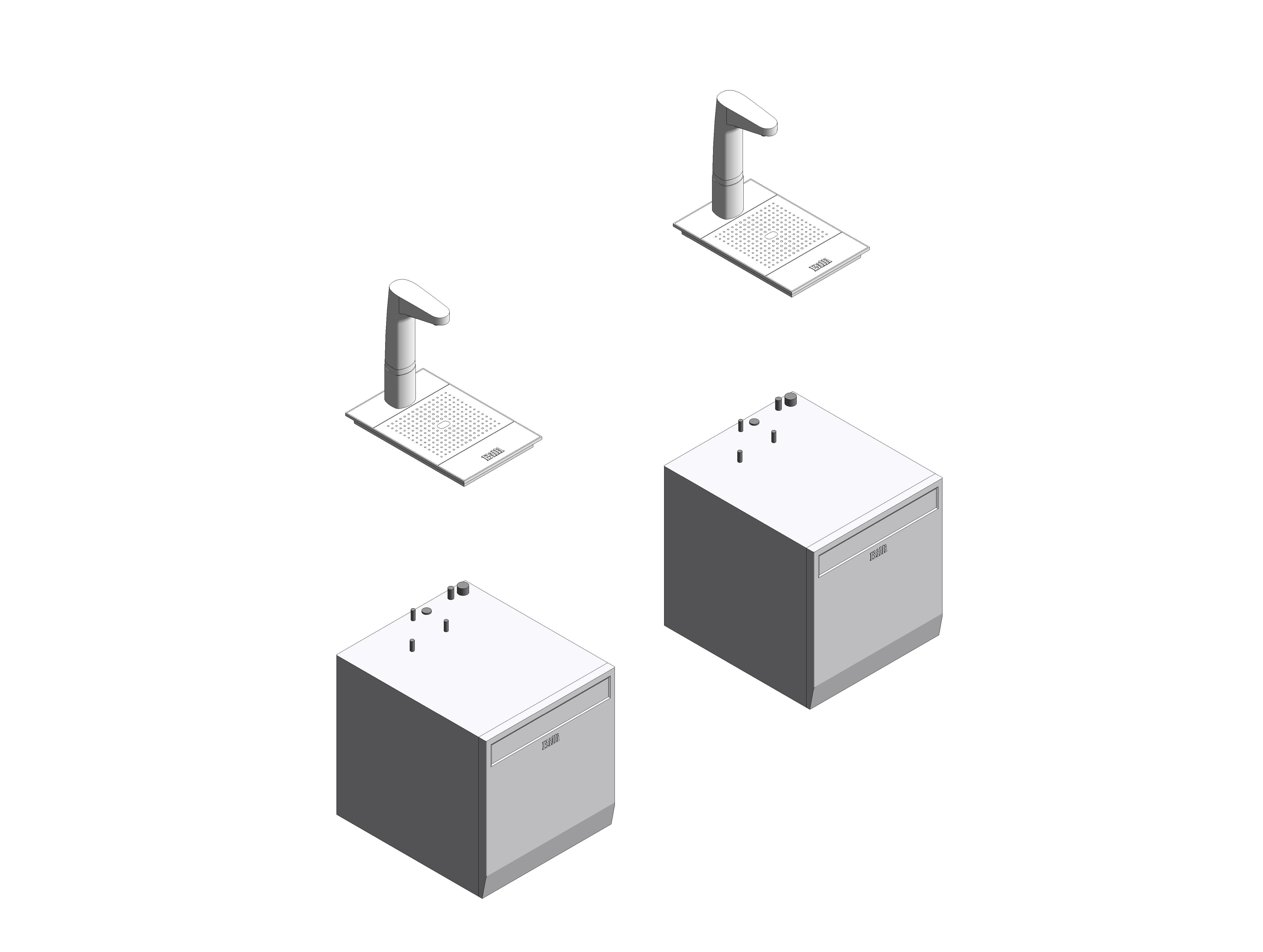

Billi Quadra with XR Remote Dispenser
by Billi
Description
Instant boiling and chilled filtered water system with XR remote dispenser.
The Quadra boiling and chilled drinking water system is space saving, energy efficient and elegant. The functional style is designed for high use and meets green building design principles – providing you with the ultimate in environmentally sensitive appliances.
The XR remote dispenser is another version of the lever free dispenser, however the operation panel is located away from the dispenser. This can be installed in your desired position to meet design requirements, particularly wheelchair access.
| Dispenser design | XR Remote Dispenser |
| Capacity | Up to 20 - 180 Persons |
| Underbench Size | Compact = 340mm h x 315mm w x 365mm d | 420, 440, 460, 4100, 4180 = 340mm h x 315mm w x 465mm d |
| Product Code | Compact = 904010R | 420 = 904020R | 440 = 904040R | 460 = 904060R | 4100 = 904100R | 4180 = 904180R |
| Water Combination | Boiling | Chilled |
Object Data
1 Revision
Last Updated
10/06/2025
Available Software
BSB
Compliant
EPD
Available
Sustainability & Environmental Data
Approved Sustainability Data from an EPD
This data is supplied by the manufacturer and certified by an approved third party.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) -120.65 kg
- Total CO2e (Fossil) 31632.52 kg
- Manufacturing (A1-A3) 173 kg
- Transport to Site (A4) 0.55 kg
- On-Site Installation (A5) 2.1 kg
- Use & Maintenance (B1-B5) 176.1 kg
- End of Life (C1,C3,C4) 3.32 kg
- Recycled Content 10 %
- Recyclable Content 65 %
- Re-use Potential 65 %
- Energy Recovery Possibility 25 %
- Water Use 306000 L
- Ozone Depletion Potential 10.53 mg CFC-11eq
- Expiry1st Dec 2023 - 1st Dec 2028
