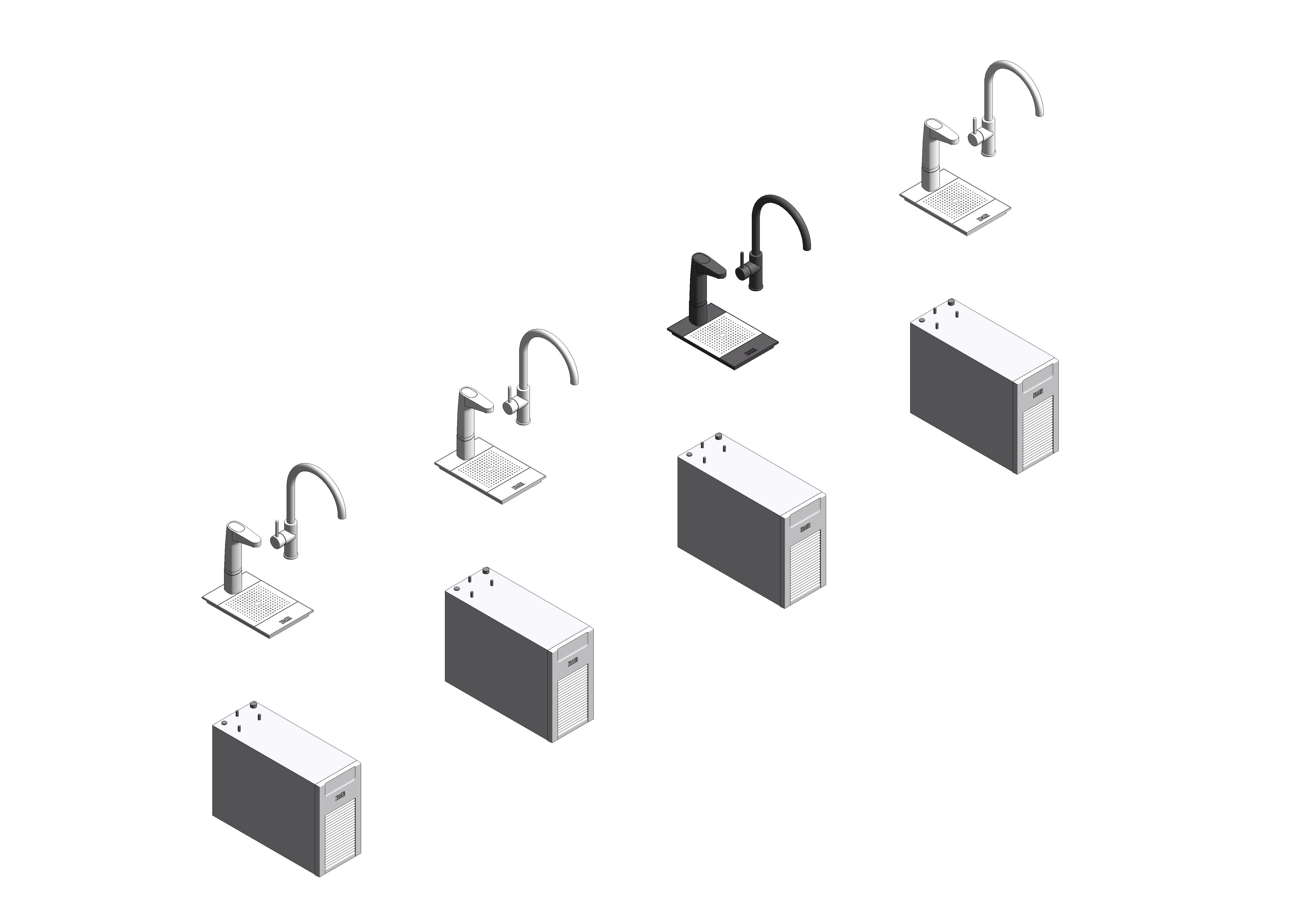

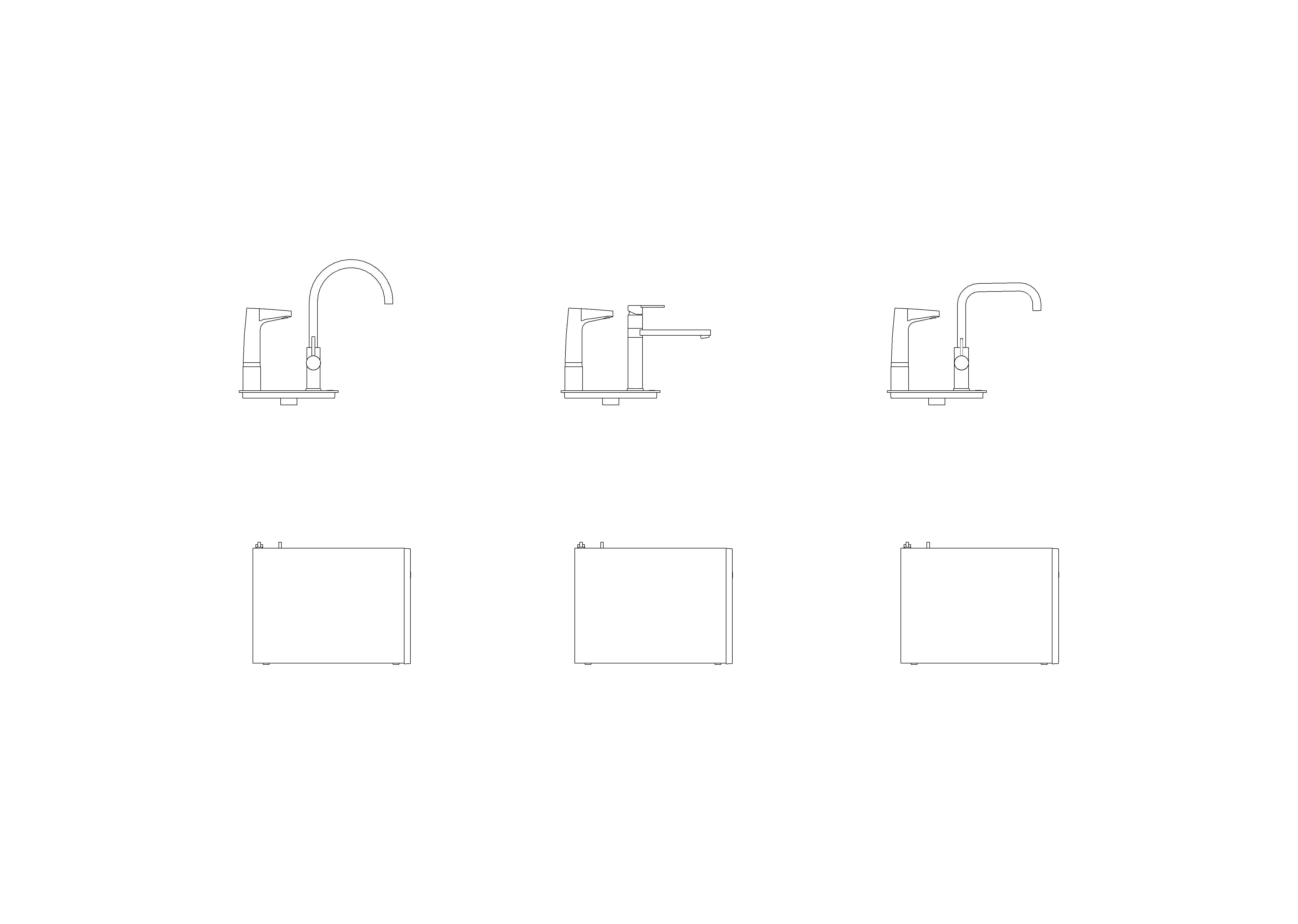

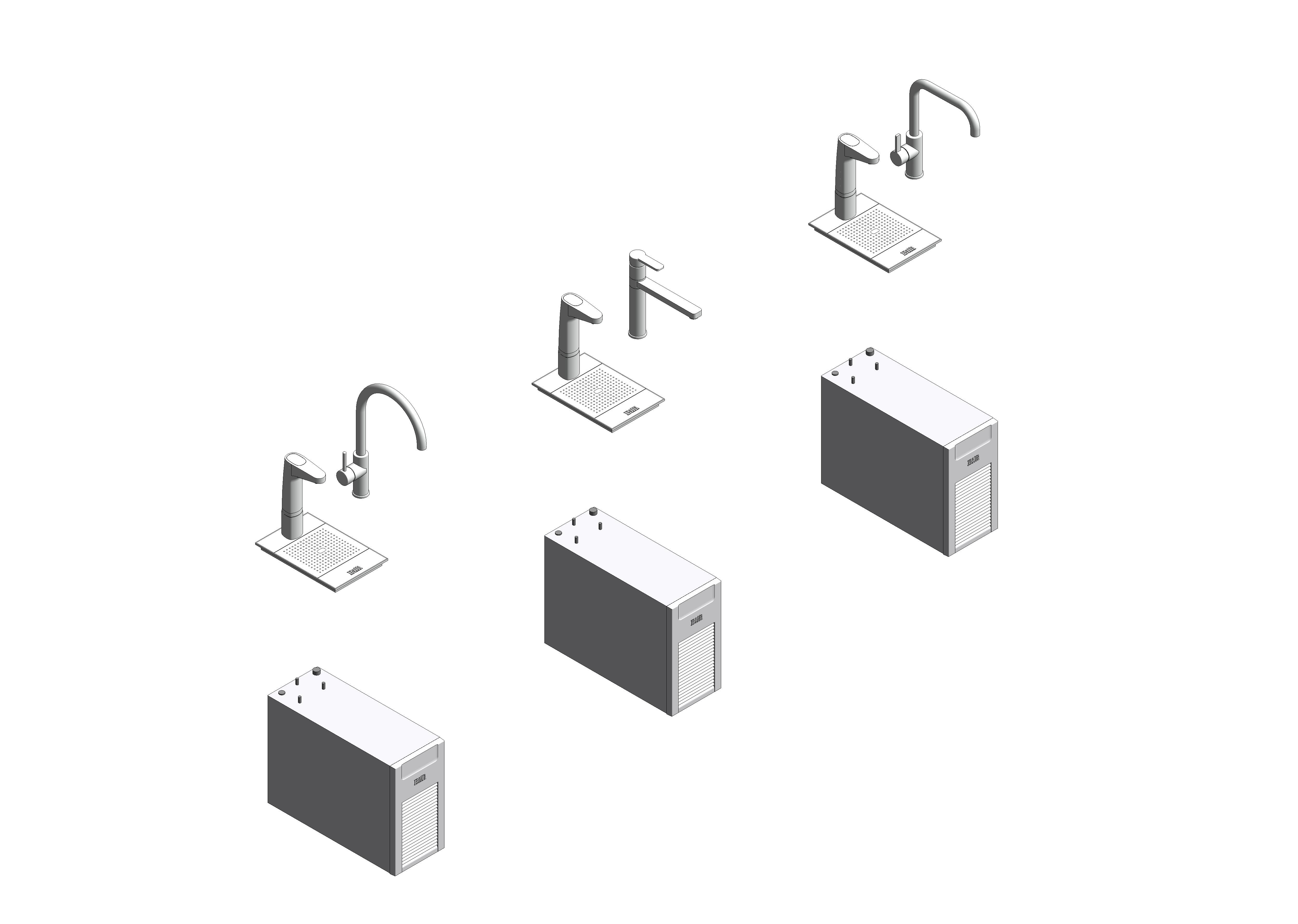

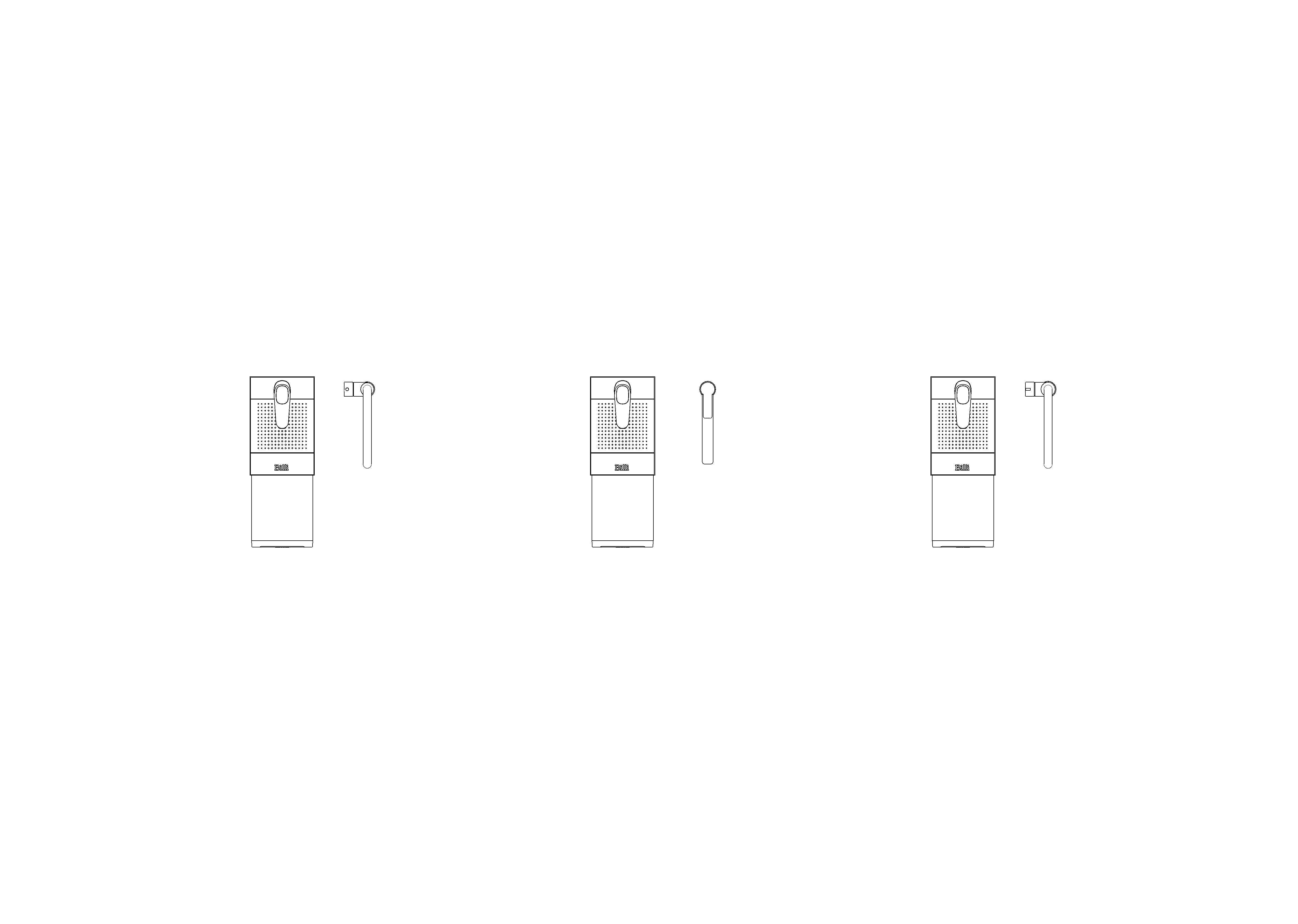

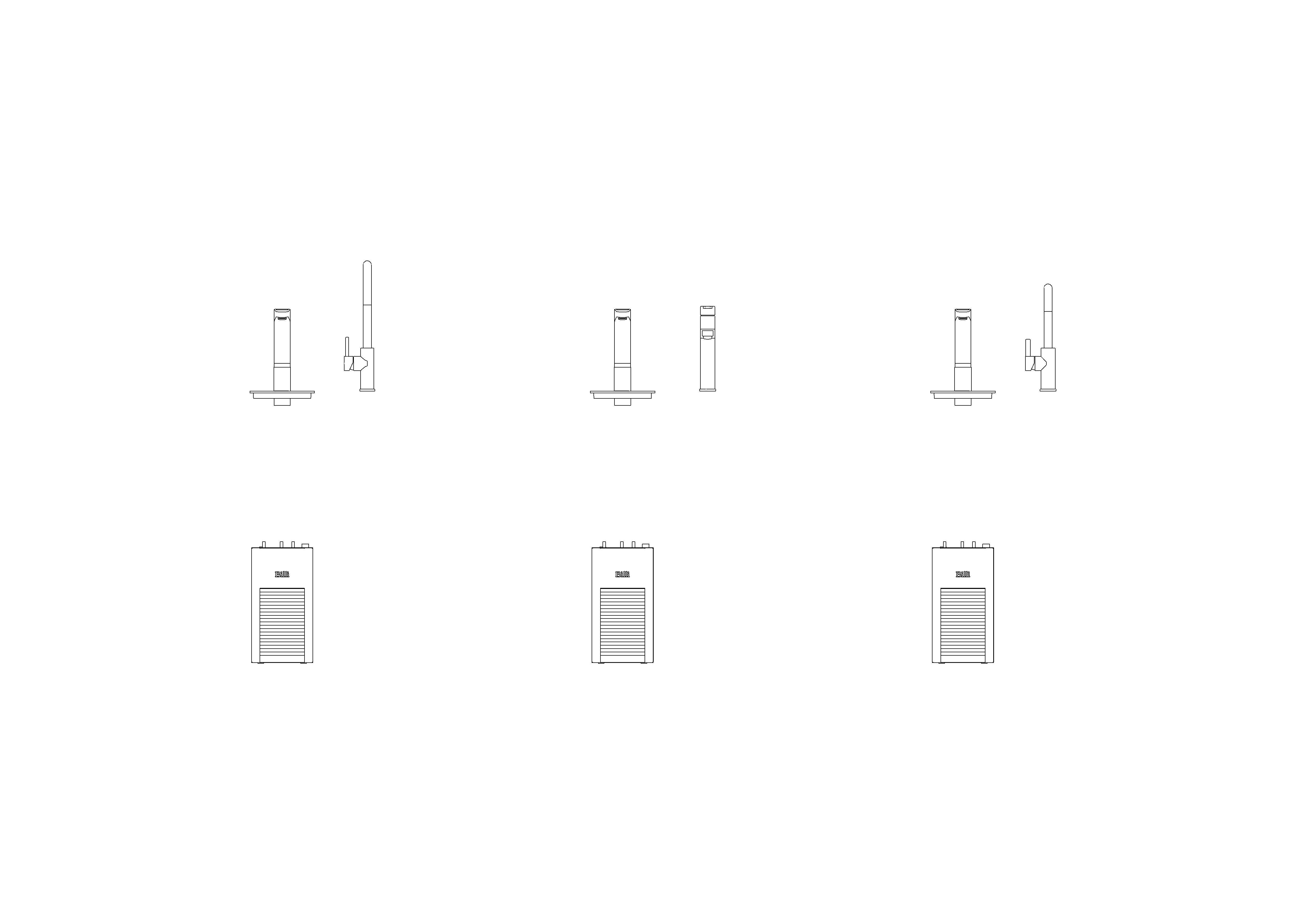

Billi Sahara Plus with XT Touch Dispenser & Mixer

by Billi

Download Add to collection

Description

Enjoy all the space saving benefits of Billi’s boiling & still Sahara systems PLUS a separate sink mixer to ensure safety and convenience for all users.

Requiring only cold feed mains supply, the Sahara Plus mixes it’s own hot water without the need for any additional under-bench space requirements or boosters.

All Sahara Plus boiling & still systems require no joinery ventilation.

Supplied standard with the sleek and contemporary touch sensitive XT drinking water dispenser, and 6 star rated paddle lever mixer tap, the solution is both functional and appealing.

Dispenser design	XT Touch
Mixer Design	Gooseneck, Paddle or Square Mixer
Capacity	Up to 25 - 125 Persons
Underbench Size	340mm h x 180mm w x 460mm d
Product Code	Gooseneck: 320 = 943025TG \| 360 = 943065TG \| 3120 = 943125TG
	Paddle: 320 = 943025TP \| 360 = 943065TP \| 3120 = 943125TP
	Square: 320 = 943025TS \| 360 = 943065TS \| 3120 = 943125TS
Water Combination	Boiling \| Still \| Plus

Object Data

1 Revision

Last Updated

13/05/2025

Available Software

BSB

Compliant

EPD

Not Available

Accompanying literature

Installation Guide

Product Literature

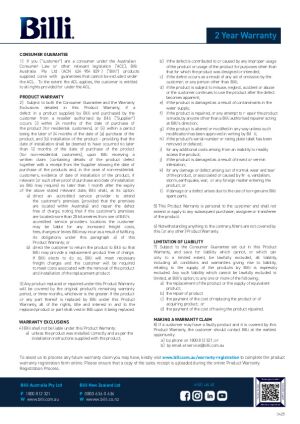

Warranty

Product Data Sheet

Object metadata

Object

Parameter Type

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Byinfo@billi.com.au
_Current Revision0
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/
310 UnitPlumFixt_Billi_UnderbenchUnit_Sahara : Billi Sahara 310
Accessibility Performancen/a
Assembly CodeD2020
Asset TypeFixed
BIM Object NamePlumFixt_Assembly_Billi_SaharaPlus_XT
Boiling Water Delivery220 cups per hour
CapacityUp to 120
Chilled Sparkling Water Deliveryn/a
Classification NameUniclass2015
Classification ValuePr_40_70_23_42
Code Performancen/a
ColorBR - Brushed
Constituentsn/a
Created Byinfo@billi.com.au
Created On2025-02-20T09:00:00
Cups Per Hour NoteBased on a set volume of water being drawn every 30 seconds at an inlet temperature of average temperature 21°C. Each cup is equivalent to 170ml.
CW ConnectionYes
Default Elevation0 mm
DescriptionInstant boiling and still filtered water system plus separate hot and cold mixer tap.
Dispenser DesignXT Touch Dispenser
Documentation Certificateswww.billi.com.au/product/billi-sahara-plus-3120-with-xt-touch-dispenser-and-gooseneck-mixer/
Documentation Installation Guidewww.billi.com.au/wp-content/uploads/2021/10/612311_Billi-Installation-Guide_Sahara-Sahara-Plus-8pp_Rev04.pdf
Documentation Literaturewww.billi.com.au/wp-content/uploads/2021/03/Billi-Oct-2024_Commercial-Brochure_Digital_FA.pdf
Documentation Maintenancewww.billi.com.au/product/billi-sahara-plus-3120-with-xt-touch-dispenser-and-gooseneck-mixer/
Documentation Technicalwww.billi.com.au/wp-content/uploads/2021/10/6401_Billi_Comm-Datasheets-Sahara-Plus-3120-XT-Gooseneck-Mixer_0624_DigitalHR_FA.pdf
Duration UnitYears
Expected Life0
FeaturesSpace saving design. Easy installation. Energy efficient. HACCP certified. No cupboard ventilation required. BPA free.
Filter 1Filter : 5 Micron Fibron X
Filter 2Filter : 0.2 Micron Fibron XC
Filter 3Filter : HSD Fibron XT
Filter 4Filter : Sediment Only
Filter 5Filter : 0.2 Micron HF Sediment Only
Finishn/a
Font MaterialBilli_Metal_Brushed
Graden/a
HW ConnectionNo
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.FAUCET
KeynoteN13
ManufacturerBilli
Manufacturer NameBilli
Materialn/a
Mixer TypePlumFixt_Billi_Mixer_Gooseneck : Standard
ModelBilli Sahara Plus 3120 with XT Touch Dispenser & Gooseneck Mixer
Model Number943125TGBR
Model ReferenceBilli Sahara Plus 3120 with XT Touch Dispenser & Gooseneck Mixer
NBS DescriptionInstant boiling and cold water taps
NBS Noten/a
NBS Object NameBilli - Instant boiling and cold water taps
NBS Office Master Tagn/a
NBS Reference90-15-35/485
Nominal Depth464 mm
Nominal Height340 mm
Nominal Length187 mm
Power SupplyA standard 15 amp power outlet is required, located no further than 1000mm from the underbench unit. The system is supplied with a 1 metre flex cord and plug
Production Year2025
Referenced Standardn/a
Replacement Costn/a
Riser MaterialBilli_Metal_Brushed
Shapen/a
Sizen/a
Spare Partsn/a
Tap MaterialBilli_Metal_Brushed
Type CommentsBilli Sahara Plus 3120 with XT Touch Dispenser & Gooseneck Mixer Brushed (943125TGBR)
Type NameBilli Sahara Plus 3120 with XT Touch Dispenser & Gooseneck Mixer Brushed (943125TGBR)
Underbench Size340mm h x 180mm w x 460mm d
Underbench UnitPlumFixt_Billi_UnderbenchUnit_Sahara : Billi Sahara
Underbench Unit Depth464 mm
Underbench Unit Height340 mm
Underbench Unit Width187 mm
URLwww.billi.com.au/product/billi-sahara-plus-3120-with-xt-touch-dispenser-and-gooseneck-mixer/
Vent ConnectionNo
Warranty DescriptionAll components of the drinking water systems are covered by a 24-month warranty.
Warranty Duration Labor2
Warranty Duration Parts2
Warranty Duration UnitYears
Warranty Guarantor Laborservice@billi.com.au
Warranty Guarantor Partsservice@billi.com.au
Waste ConnectionNo
Water TypeBoiling Still
