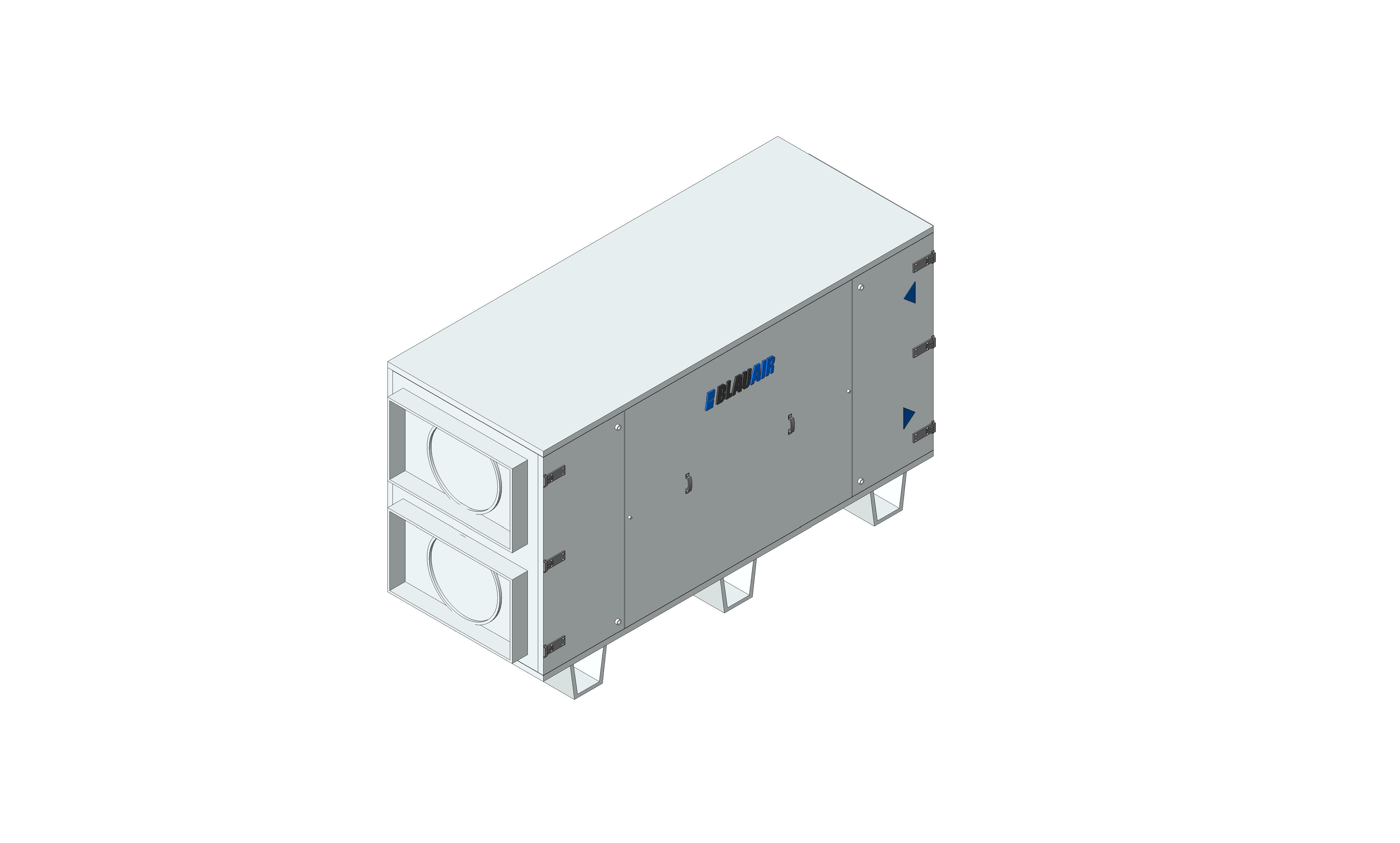

Blauair CFH RH - Horizontal Heat Recovery Unit

Download Add to collection

Description

High-efficient EC fans, backward-curved, external rotor. Integrated plug-and-play controls.

Counterflow Plate Heat Recovery with automatic bypass, Right Handed.

Object Data

1 Revision

Last Updated

14/10/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

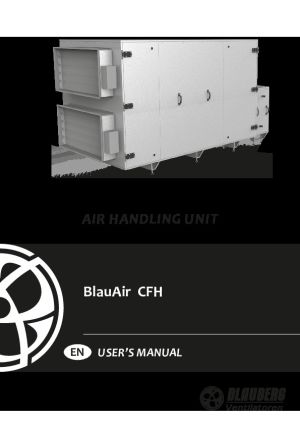

Installation Guide

Technical Data Sheet

Product Data Sheet

Object metadata

_Authortechnicalsupport@blauberg.co.uk
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.blauberg.co.uk/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/blauair-cfh-rh/document/object-user-guide
Accessibility Performancen/a
Asset TypeFixed
BIM Object NameBlauberg_MechanicalEquipment_Blauair_CFH_RH
Classification NameUniclass2015
Classification ValuePr_60_65_03
Clearance500 mm
Code Performancen/a
Colorn/a
Constituentsn/a
Created Bytechnicalsupport@blauberg.co.uk
Created On2021-10-05T09:00:00
DescriptionAir Handling Unit
Documentation Certificateswww.bimstore.co/products/blauair-cfh-rh/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/blauair-cfh-rh/document/installation-guide
Documentation Literaturewww.bimstore.co/products/blauair-cfh-rh/document/product-literature
Documentation Maintenancewww.bimstore.co/products/blauair-cfh-rh/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/blauair-cfh-rh/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
H960 mm
H1315 mm
H1 Center158 mm
Ifc Export AsIfcEnergyConversionDeviceType
Ifc Export TypeIfcUnitaryEquipmentTypeEnum.AIRCONDITIONINGUNIT
L1880 mm
ManufacturerBlauberg
Manufacturer NameBlauberg UK
Materialn/a
ModelBLAUAIR CFH
Model NumberCFH
Model ReferenceBlauair CFH_RH
NBS DescriptionAir Handling Units
NBS Object NameBlauberg UK - Wall Venting Products
NBS Office Master Tagn/a
NBS Reference90-45-15/310
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Production Year2021
Rectangular DuctNo
Referenced Standardn/a
Replacement Costn/a
Round DuctYes
S10 mm
Shapen/a
Sizen/a
Spare Partsn/a
Type NameAir Handling Unit Blauair CFH_RH
Unit Center480 mm
URLwww.blauberg.co.uk/blauair-cfh-horizontal-counterflow-heat-recovery-air-handling-unit
W540 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsinfo@blaubergventilatoren.de

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
