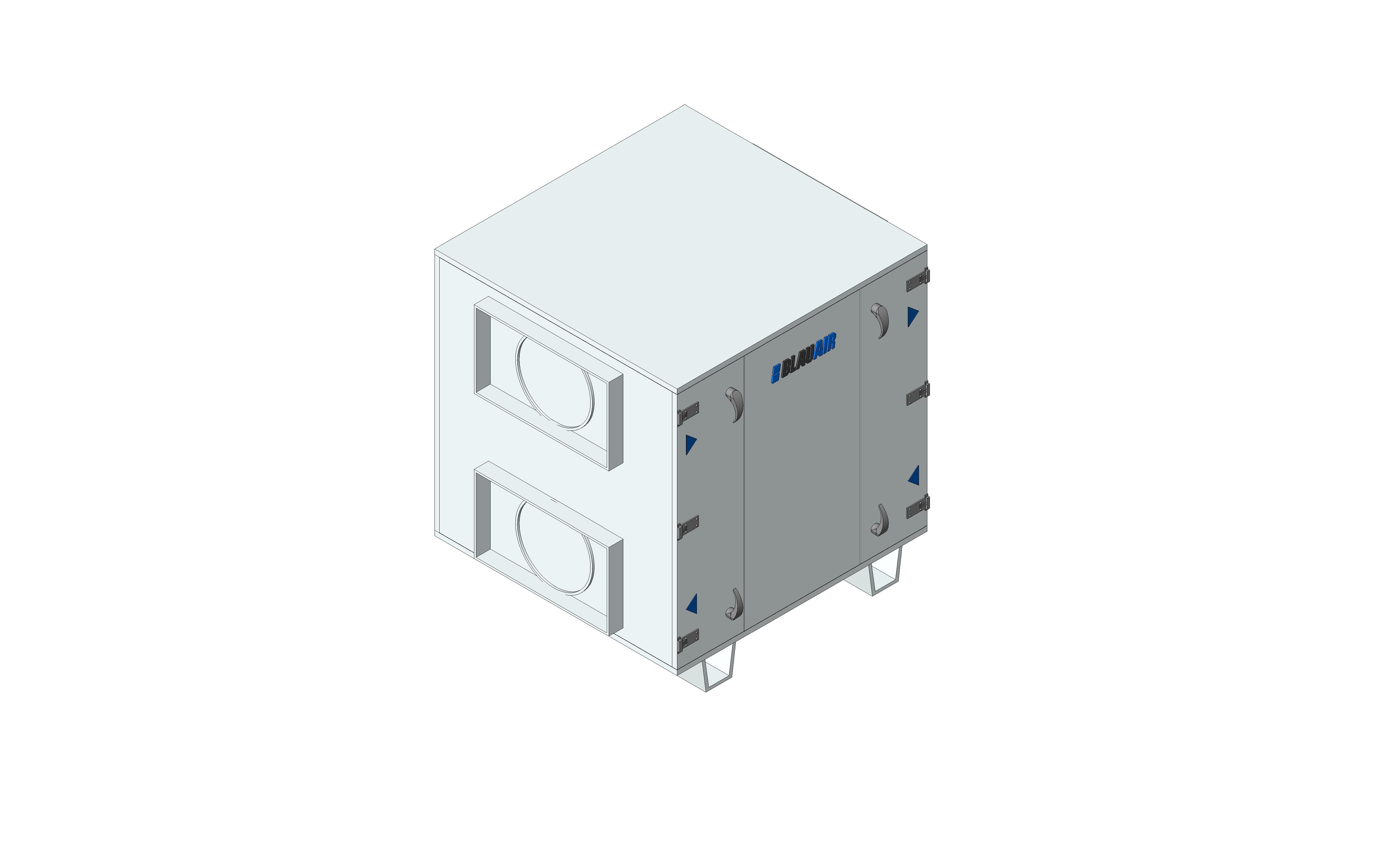

Blauair RH LH - Horizontal Heat Recovery Unit

by Blauberg

Download Add to collection

Description

High-efficient EC fans, backward-curved, external rotor. Integrated plug-and-play controls.

Rotary Wheel Heat Recovery with automatic bypass, Left Handed.

Horizontally mounting supply & extract heat recovery unit.

Airflow rates from 1500 to 6000 m3/hour (416 to 1666 l/s).

Electric & water heater options with plug & Play controls built-in.

Fitted with German Blauberg low energy EC motors.

ERP 2018 compliant and A+ energy rated.

Highly efficient thermal wheel for maximum heat recovery.

Object Data

1 Revision

Last Updated

14/10/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Installation Guide

Technical Data Sheet

Product Data Sheet

Object metadata

_Authortechnicalsupport@blauberg.co.uk
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.blauberg.co.uk/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/blauair-rh-lh/document/object-user-guide
Accessibility Performancen/a
Asset TypeFixed
BIM Object NameBlauberg_MechanicalEquipment_Blauair_CFH_RH
Classification NameUniclass2015
Classification ValuePr_60_65_03
Clearance500 mm
Code Performancen/a
Colorn/a
Constituentsn/a
Created Bytechnicalsupport@blauberg.co.uk
Created On2021-10-05T09:00:00
DescriptionAir Handling Unit
Documentation Certificateswww.bimstore.co/products/blauair-rh-lh/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/blauair-rh-lh/document/installation-guide
Documentation Literaturewww.bimstore.co/products/blauair-rh-lh/document/product-literature
Documentation Maintenancewww.bimstore.co/products/blauair-rh-lh/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/blauair-rh-lh/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
H820 mm
H1315 mm
H1 Center158 mm
Ifc Export AsIfcEnergyConversionDeviceType
Ifc Export TypeIfcUnitaryEquipmentTypeEnum.AIRCONDITIONINGUNIT
L1400 mm
ManufacturerBlauberg
Manufacturer NameBlauberg UK
Materialn/a
ModelBLAUAIR RH
Model NumberRH
Model ReferenceBlauair RH_LH
NBS DescriptionAir Handling Units
NBS Object NameBlauberg UK - Wall Venting Products
NBS Office Master Tagn/a
NBS Reference90-45-15/310
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Production Year2021
Rectangular DuctNo
Referenced Standardn/a
Replacement Costn/a
Round DuctYes
S10 mm
Shapen/a
Sizen/a
Spare Partsn/a
Type NameAir Handling Unit Blauair RH_LH
Unit Center410 mm
URLwww.blauberg.co.uk/catalogsearch/result/?q=RH+1200
W765 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsinfo@blaubergventilatoren.de

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
