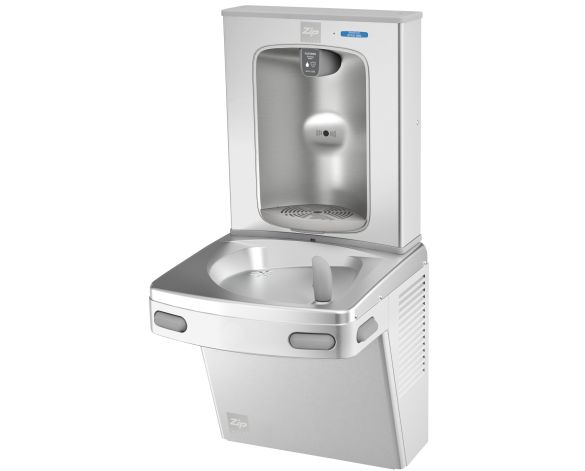

Chill Fountain On-Wall Chiller Bubbler Bottle Filler Single

Description

Chill Fountain On-Wall Chiller Bubbler Bottle Filler Single (73225)

Zip Chill Fountain, designed for hygiene, sustainability, and convenience. The wall mounted chillers are designed for busy areas and small spaces. Hands-free bottle filling with advanced UV-C LED disinfection, MicroPurity filtration and eco-friendly R290 refrigerant, Zip Chill Fountain is the perfect blend of hygiene, technology and sustainability.

Object Data

1 Revision

Last Updated

25/03/2026

Available Software

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Certificates

Product Data Sheet

Object metadata

_Authorwww.zipwater.com/contact-us
_Authorized ByBS
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.zipwater.com/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/chill-fountain-on-wall-chiller-bubbler-bottle-filler-single/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010800
Asset TypeFixed
BIM Object NameZipAU_OnWallChillers_SingleUnit
BracketMetal_BrushedStainlessSteel_Zip
Classification NameUniclass2015
Classification ValuePr_40_70_15_24
Code Performancen/a
ColorStainless Steel
Connection Diameter13 mm
Constituentsn/a
Created Bywww.zipwater.com/contact-us
Created On2024-11-26T09:00:00
CW ConnectionYes
Default Elevation0 mm
Depth473 mm
DescriptionChill Fountain On-Wall Chiller Bubbler Bottle Filler Single (73225)
Documentation Certificateswww.bimstore.co/products/chill-fountain-on-wall-chiller-bubbler-bottle-filler-single/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/chill-fountain-on-wall-chiller-bubbler-bottle-filler-single/document/installation-guide
Documentation Literaturewww.bimstore.co/products/chill-fountain-on-wall-chiller-bubbler-bottle-filler-single/document/product-literature
Documentation Maintenancewww.bimstore.co/products/chill-fountain-on-wall-chiller-bubbler-bottle-filler-single/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/chill-fountain-on-wall-chiller-bubbler-bottle-filler-single/document/technical-data-sheet
Duration UnitYears
Electrical Connector From Bottom95 mm
Electrical Connector From Centre102 mm
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Height960 mm
HW ConnectionYes
Ifc Export AsIfcSanitaryTerminalType
Ifc Export TypeSANITARYFOUNTAIN
KeynoteN13/260
Logo BlackPlastic_Black_Zip
Logo RedPlastic_Red_Zip
ManufacturerOasis
Manufacturer NameZip AU
Manufacturer Spec Code73225
Manufacturer URL Product Specificwww.zipwater.com/shop/chilled-water
MaterialPlastic, Stainless Steel
Model73225
Model Number73225
Model ReferenceChill Fountain On-Wall Chiller Bubbler Bottle Filler Single
NBS DescriptionDrinking fountains
NBS Noten/a
NBS Object NameZIP - Drinking fountains
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth473 mm
Nominal Height960 mm
Nominal Length448 mm
PipesCopper
Primary MaterialMetal_PowderCoat_Zip_White
Production Year2024
Referenced Standardn/a
Replacement Costn/a
ShapeRectangle
Size960(H) x 448(W) x 473(D)
Spare Partswww.zipwater.com/contact-us
Type CommentsChill Fountain On-Wall Chiller Bubbler Bottle Filler Single
Type NameChill Fountain On-Wall Chiller Bubbler Bottle Filler Single (73225)
URLwww.zipwater.com/shop/chilled-water
Vent ConnectionNo
Voltage240 V
Warranty Descriptionwww.zipwater.com/support/warranty-policy
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborwww.zipwater.com/contact-us
Warranty Guarantor Partswww.zipwater.com/contact-us
Waste ConnectionYes
Waste Outlet From Bottom203 mm
Waste Outlet From Centre133 mm
Water Supply From Bottom82 mm
Water Supply From Centre146 mm
Width448 mm
