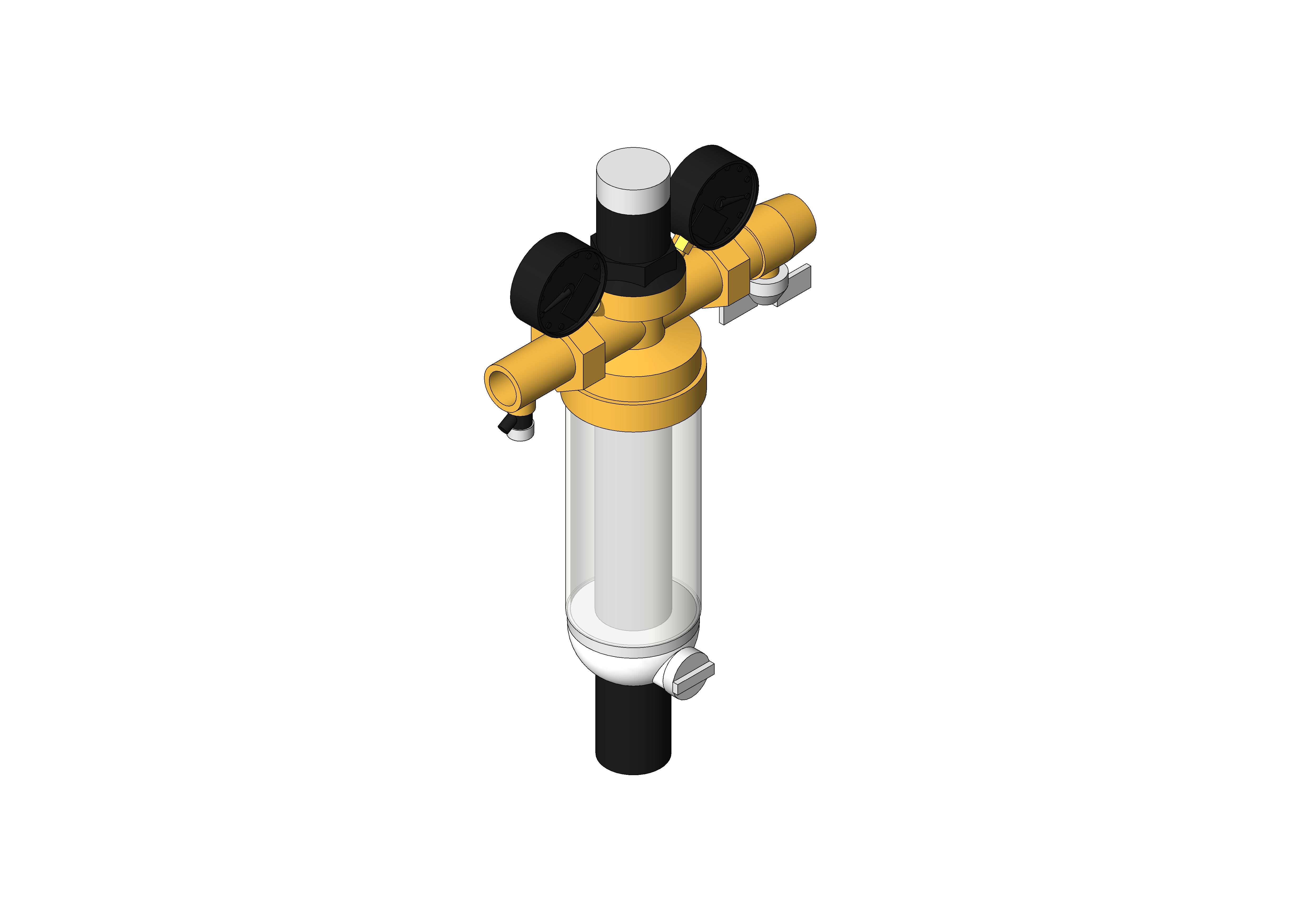

Combination Water Supply Unit (HS10S)

by Resideo: Smart Home Products and Systems

Download Add to collection

Description

Resideo offers top-of-the-line home automation solutions to set up your best smart home system, including smart thermostats, security cameras and more.

This product listing is to download the Combination Water Supply Unit (HS10S)

Click here to visit Resideo for more info!

Object Data

1 Revision

Last Updated

23/10/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

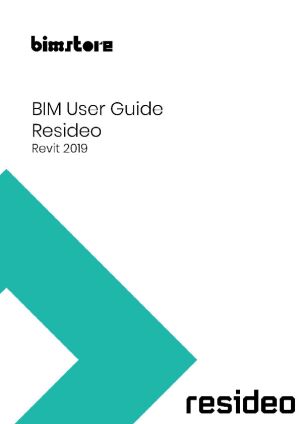

Object User Guide

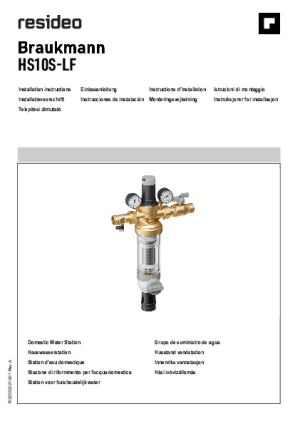

Installation Guide

Product Literature

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/combination-water-supply-unit-hs10s/document/object-user-guide
1"No
1 1/2"Yes
1 1/4"No
1/2"No
2"No
3/4"No
a302.0 mm
Accessibility Performancen/a
Application OptionFor cold water (до 40 °С)
Assembly CodeD20
Asset TypeFixed
b37.0 mm
BIM Object NameResideo_CombinationWaterSupplyUnit_HS10S
c58.0 mm
Cap Up95.0 mm
Classification NameUniclass2015
Classification ValuePr_60_55_97_41
Code Performancen/a
Colorn/a
Connection Dia40.0 mm
Connection Radius20.0 mm
Connection Size1 1/2"
Constituentsn/a
Created Bywww.resideo.com/gb/en/contact-us/
Created On2022-07-04 T09:00:00
d22.0 mm
Default Elevation0.0 mm
DescriptionREV.RINSE WATER SUPPLY UNIT TH
Documentation Certificateswww.bimstore.co/products/combination-water-supply-unit-hs10s/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/combination-water-supply-unit-hs10s/document/installation-guide
Documentation Literaturewww.bimstore.co/products/combination-water-supply-unit-hs10s/document/product-literature
Documentation Maintenancewww.bimstore.co/products/combination-water-supply-unit-hs10s/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/combination-water-supply-unit-hs10s/document/technical-data-sheet
Duration UnitYear
e29.0 mm
Expected Life0
f147.0 mm
Featuresn/a
Filter Bowl MaterialResideo - Plastic - Opaque
Filter Mesh Cleaning MethodReverse rinsing with filtered water (the patented Resideo system)
Filter Mesh OptionFilter mesh size 100 micron
Finishn/a
Flow Capacity12.6 CMS
Flow Rate2 l/s
g183.0 mm
Graden/a
h417.0 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.USERDEFINED
KeynoteS
ManufacturerResideo
Manufacturer NameResideo
MaterialBrass, dezincification resistant
Maximum Inlet Pressure16.0 bar
Medium TypeDrinking water
Minimum Inlet Pressure1.5 bar
ModelHS10S-11/2LFAA
Model NumberHS10S-11/2LFAA
Model ReferenceREV.RINSE WATER SUPPLY UNIT TH
NBS DescriptionInline filter units
NBS Noten/a
NBS Object NameResideo - Inline filter units
NBS Office Master Tagn/a
NBS Reference90-15-95/375
Nominal Depth95.0 mm
Nominal Height590.0 mm
Nominal Length330.0 mm
Nominal PressurePN16
Outlet OptionOutlet shut-off valve [2193400]
Primary MaterialResideo - Brass
Product Body OptionsConnection set, Solder connections [VST06-11/2B]
Production Year2025
Referenced Standardn/a
Replacement Costn/a
Required Connector DiameterDN50/70
Secondary MaterialResideo - Stainless Steel
Shapen/a
Size95mm (D) x 590mm (H) x 330mm (L)
Spare Partsn/a
Tertiary MaterialResideo - Plastic - Black
Type CommentsREV.RINSE WATER SUPPLY UNIT TH
Type NameHS10S-11/2LFAA
URLwww.resideo.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborwww.resideo.com/gb/en/contact-us/
Warranty Guarantor Partswww.resideo.com/gb/en/contact-us/

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
