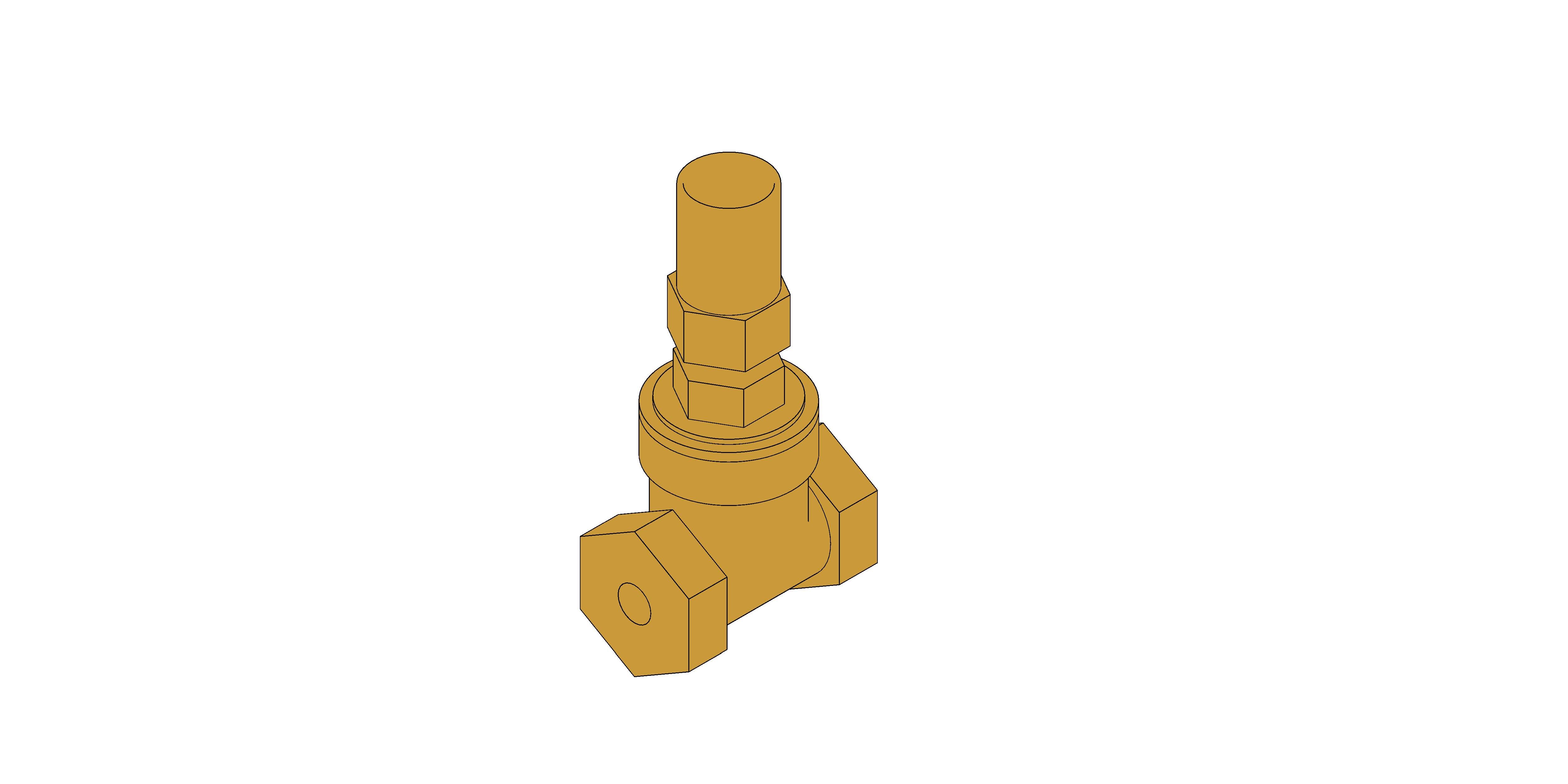

D235 - Gate Valve (1/2" - 2") - Bronze

by Crane Fluid Systems

Download Add to collection

Description

D235 - 1/4" to 3"

Gate Valve (1/2" - 2") - Bronze

PN32 Bronze Gate Valve with Lockshield

Features & Benefits

Crane gate valves offer the ultimate in dependable service wherever minimum pressure drop is important

Size	1/4" to 3"
Pressure Rating	PN32
End Connections	Threaded
Material	Bronze

Object Data

1 Revision

Last Updated

06/10/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

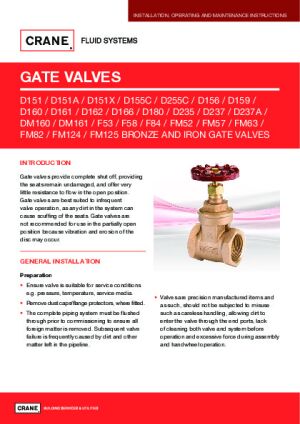

Installation Guide

Maintenance Information

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/crane-fs-d235/document/object-user-guide
Accessibility Performancen/a
Amm73 mm
Assembly CodeD20
Asset TypeFixed
BIM Object NameCraneFS_GateValve_D235
Bmm175 mm
Body Centre Corner Radius5 mm
Body Centre Depth44 mm
Body Centre Width36 mm
Body Radius24 mm
Body Width45 mm
Bonnet Lower Height15 mm
Bonnet Lower Radius28 mm
Bonnet Middle Height4 mm
Bonnet Middle Radius30 mm
Bonnet Upper Height5 mm
Bonnet Upper Radius27 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_96
Code Performancen/a
Colorn/a
Connection Size42 mm
Connection Size Radius21 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2021-08-31T:09:00:00
DescriptionD235 - Gate Valve (1/2" - 2") - Bronze
Documentation Certificateswww.bimstore.co/products/crane-fs-d235/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/crane-fs-d235/document/installation-guide
Documentation Literaturewww.bimstore.co/products/crane-fs-d235/document/product-literature
Documentation Maintenancewww.bimstore.co/products/crane-fs-d235/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/crane-fs-d235/document/technical-data-sheet
Duration UnitYear
End Connector Diameter58 mm
End Connector Thickness14 mm
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
K Coefficient161.93
KeynoteS
Lockshield Height46 mm
Lockshield Hex Height15 mm
Lockshield Hex Radius13 mm
Lockshield MaterialAluminum
Lockshield Neck Radius12 mm
Loss MethodK Coefficient
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
ModelD235 - Gate Valve (1/2" - 2") - Bronze
Model NumberD235
Model ReferenceD235 - Gate Valve (1/2" - 2") - Bronze
NBS DescriptionWaterworks gate valves
NBS Noten/a
NBS Object NameCrane FS - Waterworks gate valves
NBS Office Master Tagn/a
NBS Reference90-10-90/312
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Packing Ring Height22 mm
Packing Ring Hex Height12 mm
Packing Ring Hex Radius19 mm
Packing Ring Neck Diameter11 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size1 1/2"
Spare Partsn/a
Top Of Stem41 mm
Type CommentsD235 - Gate Valve (1/2" - 2") - Bronze
Type NameD235 - Gate Valve (1/2" - 2") - Bronze
URLwww.cranefs.com/
Valve MaterialBrass, Soft Yellow
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
