DM925LW - Double Regulating Feature - Fully Lugged Lever Operated Butterfly Valves – Ductile Iron (2026 Onwards)

by Crane Fluid Systems

Download Add to collection

Description

In two unit systems the DM925 has sufficient authority to give effective regulation over the range of flows covered by matching flow measurement devices/valves.

WRAS approved Double Regulating Valves consists of a fully lugged, WRAS approved EPDM liner butterfly valve with a Double Regulating Lever

The Double Regulating feature allows the valve to be used for isolation and to be reopened to its pre-set position to maintain required flow rate

Use the DM925LW with Orifice plate Fig.DM900 for Commissioning Set

Object Data

1 Revision

Last Updated

26/03/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

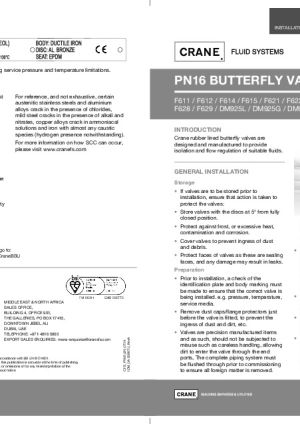

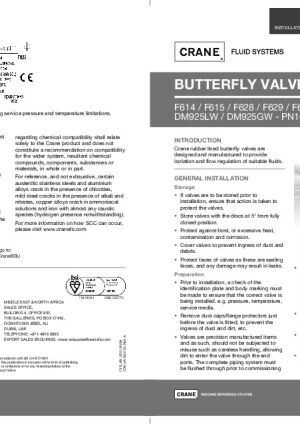

Installation Guide

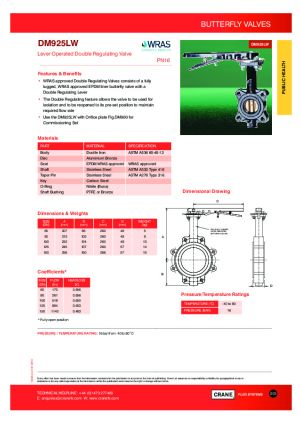

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized ByBS
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/crane-fs-dm925lw/document/object-user-guide
0 P180.00 mm
a22.50 °
Accessibility Performancen/a
Aluminium Bronze DiscNo
Angle 122.50 °
Angle 267.50 °
Angle 367.50 °
Assembly CodeD20
Asset TypeFixed
BIM Object NameCraneFS_ButterflyValve_FullyLuggedLeverOperated_DM925LW_2026Onwards
BodyDuctile Iron (EN-GJS-400-15)
BushingPTFE
c142.20 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_08
Code Performancen/a
Colorn/a
Connection Size100.00 mm
Connection Size Radius50.00 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2025-03-01T:09:00:00
d16.00 mm
D15.77 mm
Default Elevation0.00 mm
DescriptionDM925LW - Fully-Lugged Lever Operated Butterfly Valves - Ductile Iron (2026 Onwards)
DiscDuctile Iron (EN-GJS-400-15) Epoxy coated
Disc OptionPlease choose one option from the three below:
DN100
Documentation Certificateswww.bimstore.co/products/crane-fs-dm925lw/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/crane-fs-dm925lw/document/product-certificates
Documentation Literaturewww.bimstore.co/products/crane-fs-dm925lw/document/product-certificates
Documentation Maintenancewww.bimstore.co/products/crane-fs-dm925lw/document/product-certificates
Documentation Technicalwww.bimstore.co/products/crane-fs-dm925lw/document/product-certificates
Ductile Iron DiscYes
Duration UnitYear
E104.40 mm
End ConnectionFully Lugged
EPDM LinerYes
Expected Life0
Featuresn/a
Finishn/a
Graden/a
H32.00 mm
H1106.00 mm
H2179.00 mm
Half 0 P90.00 mm
Handle Length265.00 mm
Handle Width50.00 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
K90.00 mm
K Coefficient694
KeynoteS
L52.00 mm
L1265.00 mm
Lever And ScrewMalleable Iron ASTM Gr.32510
LinerEPDM
Liner OptionPlease choose one option from the two below:
Loss MethodK Coefficient
Lug Hole Offset90.00 mm
Lug Hole Radius8.00 mm
Lug Inner Radius71.10 mm
Lug Outer Radius15.00 mm
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
ModelDM925LW - Fully-Lugged Lever Operated Butterfly Valves - Ductile Iron (2026 Onwards)
Model NumberDM925LW
Model ReferenceDM925LW - Fully-Lugged Lever Operated Butterfly Valves - Ductile Iron (2026 Onwards)
n 1-m16.00 mm
N1-m Half8.00 mm
NBS DescriptionButterfly valves
NBS Noten/a
NBS Object NameCrane FS - Butterfly valves
NBS Office Master Tagn/a
NBS Reference90-10-90/332
Nitrile LinerNo
Nominal Depth0.00 mm
Nominal Height0.00 mm
Nominal Length0.00 mm
Number Of Lugs8
O-RingNitrile Rubber
OperatorTrigger Lever
OtherBare shaft options available (Fig No. F648B / F658B / F644B / F654B / F678B / F674B). Please contact us for bare shaft top works details.
P180.00 mm
Pressure RatingPN16
Production Year2026
Referenced Standardn/a
Replacement Costn/a
S11.00 mm
ShaftStainless Steel 420 (ASTM A276 420)
Shapen/a
SizeDN100
Spare Partsn/a
Specification NotesEnd connections compatible with BS EN1092-2 PN16 flanges.
Stainless Steel DiscNo
Stop PlateMild Steel (GB700 Q235) Chromium Plated
Symbol Length60.00 mm
Taper PinStainless Steel 431 (ASTM A276 431)
Temperature Rating-10 to 120°C
Test Pressures(Hydrostatic) SHELL: 24 bar; SEAT: 17.6 bar.
Type CommentsDM925LW - Fully-Lugged Lever Operated Butterfly Valves - Ductile Iron (2026 Onwards)
Type NameDM925LW - Fully-Lugged Lever Operated Butterfly Valves - Ductile Iron (2026 Onwards)
URLwww.cranefs.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
