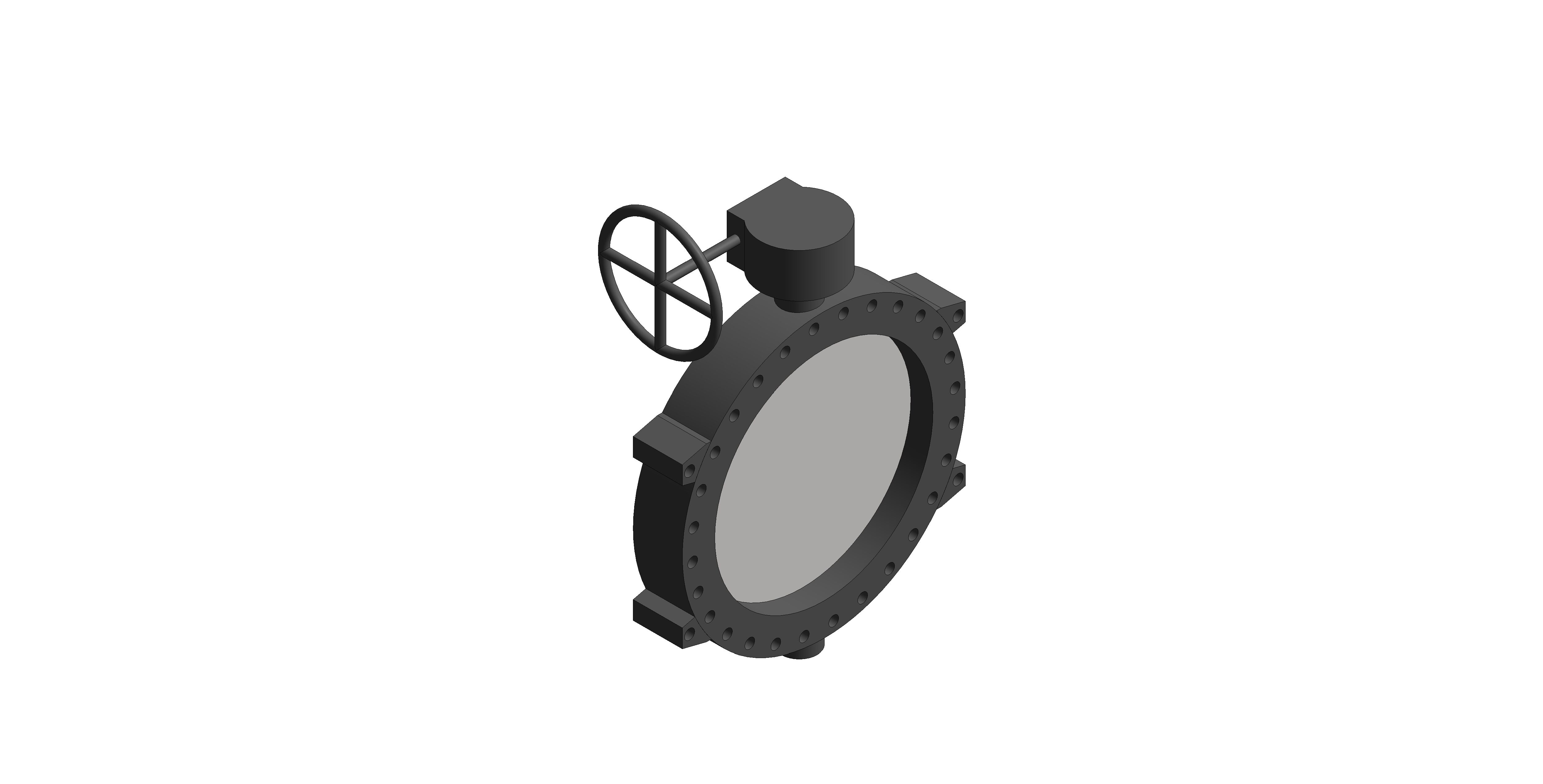

FA725G - Large Diameter Butterfly Valve - Ductile Iron

by Crane Fluid Systems

Download Add to collection

Description

FA725G - 26" to 36"

Large Diameter Butterfly Valve - Ductile Iron

Features & Benefits

Manufactured to BS EN 593: 2009
Complies with Pressure Equipment Directive 97/23/EC
Suitable for Gearbox or ActuatoR operation
Rugged construction: ductile Iron Body for all sizes
Stainless Steel disc as standard
Epoxy paint coated as standard
Low operating torques
Double regulating feature on gearboxes

Size	26" to 36"
Pressure Rating	Class 150
End Connections	ASME B16.47A
Material	Ductile Iron

Object Data

1 Revision

Last Updated

22/03/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Maintenance Information

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/crane-fs-fa725g/document/object-user-guide
a119.63 mm
Accessibility Performancen/a
Actuator Mounting FlangesISO 5211: 2001
Assembly CodeD20
Asset TypeFixed
b239.25 mm
Bareshaft Valve OptionsFA700B
BearingHigh Carbon Steel ASTM A295 52100
BIM Object NameCraneFS_ButterflyValve_LargeDiameter_FA725G
BodyDuctile Iron EN-GJS-400-15
c179.44 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_08
Code Performancen/a
Colorn/a
Connection Size650.00 mm
Connection Size Radius325.00 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2022-03-01T:09:00:00
d22.50 mm
D806.50 mm
DescriptionFA725G - Large Diameter Butterfly Valve - Ductile Iron
DiscStainless Steel ASTM A351 CF8M
Documentation Certificateswww.bimstore.co/products/crane-fs-fa725g/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/crane-fs-fa725g/document/installation-guide
Documentation Literaturewww.bimstore.co/products/crane-fs-fa725g/document/product-literature
Documentation Maintenancewww.bimstore.co/products/crane-fs-fa725g/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/crane-fs-fa725g/document/technical-data-sheet
Duration UnitYear
End ConnectionASME B16.47A
Expected Life0
f36.30 mm
F485.00 mm
Face To Face DimensionsBS EN 558: 2011 Series 20
Featuresn/a
Finishn/a
g25.95 mm
G565.00 mm
GearboxCast Iron
Graden/a
h403.25 mm
H14.00 mm
Hole Radius17.50 mm
i100.00 mm
I110.00 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
j125.00 mm
J165.00 mm
k30.00 mm
K Coefficient2675
KeyCarbon Steel ASTM A29 1045
KeynoteS
K VisibilityNo
l217.50 mm
L870.00 mm
Long BushingPTFE
Loss MethodK Coefficient
Lower Adjusting ShimCarbon Steel ASTM A36
Lower GlandCarbon Steel EN-GJS-400-15
Lower ShaftStainless Steel ASTM A276 420
Lug Hole Radius17.50 mm
M500.00 mm
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
MediumManufactured to BS EN 593: 2009. Complies with Pressure Equipment Directive 2014/68/EU.Equipment Directive 2014/68/EU.
ModelFA725G - Large Diameter Butterfly Valve - Ductile Iron
Model NumberFA725G
Model ReferenceFA725G - Large Diameter Butterfly Valve - Ductile Iron
N346.00 mm
NBS DescriptionButterfly valves
NBS Noten/a
NBS Object NameCrane FS - Butterfly valves
NBS Office Master Tagn/a
NBS Reference90-10-90/332
Nominal Depth0.00 mm
Nominal Height0.00 mm
Nominal Length0.00 mm
Number Of Holes20
O-RingNBR
OperatorGearbox - FA700 (Disc SS 316) / FA701 (Disc SS 304)
P913.00 mm
PinStainless Steel ASTM A276 431
Pressure Rating26" - 56" ANSI CLASS 150
Production Year2022
R105.00 mm
Referenced Standardn/a
Replacement Costn/a
ScrewCarbon Steel ASTM A194 Gr.2H
Seat With Backing RingEPDM + Aluminium
Shapen/a
Short BushingPTFE
Size26"
Spare Partsn/a
Temperature Rating-20°C to 120°C
Type CommentsFA725G - Large Diameter Butterfly Valve - Ductile Iron
Type NameFA725G - Large Diameter Butterfly Valve - Ductile Iron
Upper ShaftStainless Steel ASTM A276 420
URLwww.cranefs.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
