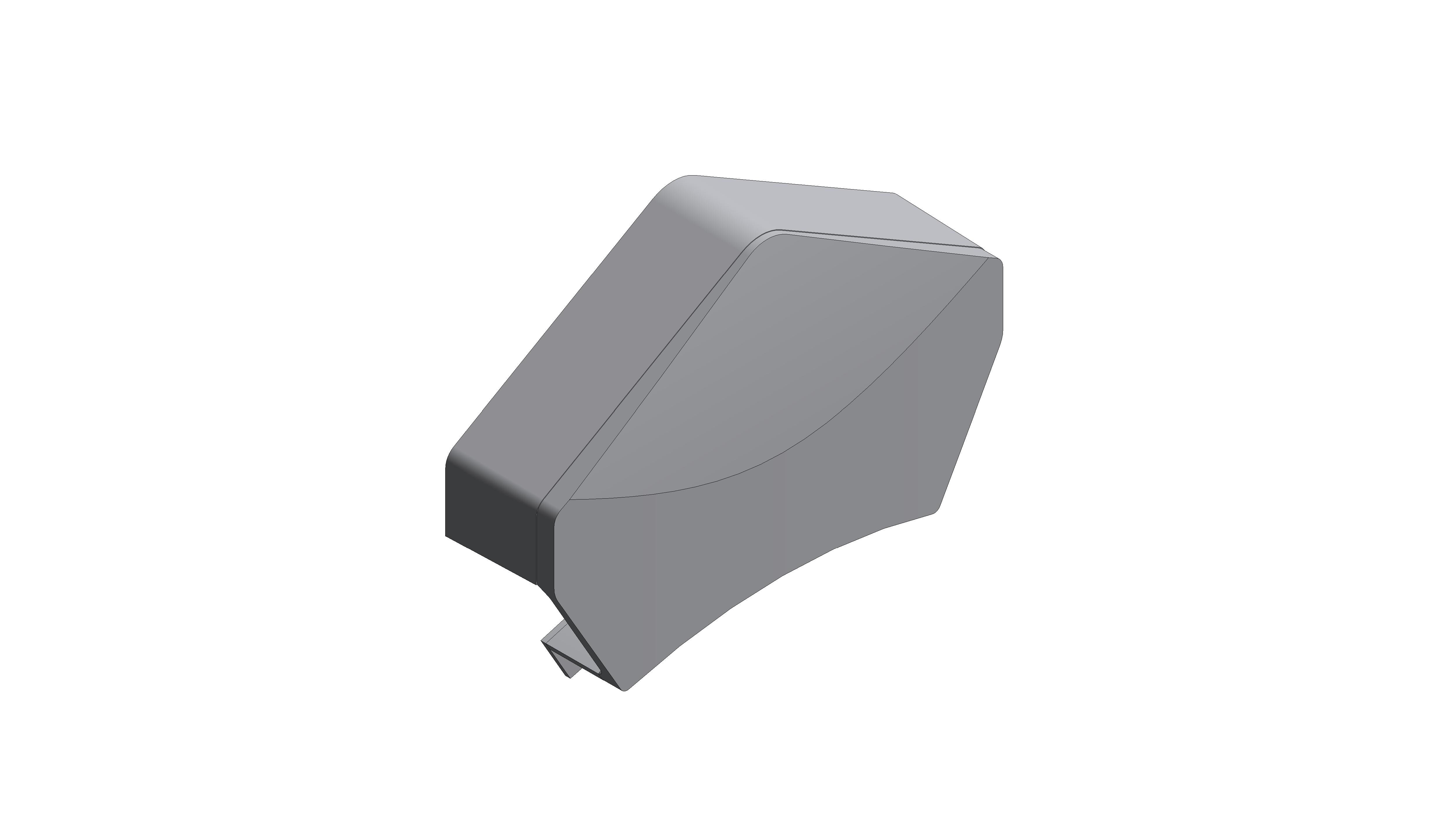

Dry fix continuous verge for slate angles ridge/apex piece
Description
Dry fix continuous verge for slate angles ridge/apex piece
Object Data
1 Revision
Last Updated
12/09/2024
Available Software
BS1192:4
Compliant
BSB
Compliant
EPD
Not Available
Object metadata
- _AuthorIH
- _Authorized Bybimstore
- _Bim Spec Guid0
- _BS Bible Version17
- _Created Bywww.bimstore.co/
- _Current Revision1
- _Distributed Bywww.bimstore.co/
- _Object User Guidewww.bimstore.co/products/dry-fix-continuous-verge-for-slate-angles-ridge-apex-piece/document/object-user-guide
- Accessibility Performancen/a
- Assembly CodeB1020
- Asset TypeFixed
- BIM Object NameTimloc_DryRidge_ContinuousCap_Angled
- Classification NameUniclass2015
- Classification ValuePr_30_59_29_71
- Code Performancen/a
- ColorGrey
- Constituentsn/a
- Created Bysales@timloc.co.uk
- Created On2024-09-01T09:00:00
- Default Elevation1219 mm
- DescriptionDry fix continuous verge for slate angles ridge/apex piece
- Documentation Certificateswww.bimstore.co/products/dry-fix-continuous-verge-for-slate-angles-ridge-apex-piece/document/product-certificates
- Documentation Installation Guidewww.bimstore.co/products/dry-fix-continuous-verge-for-slate-angles-ridge-apex-piece/document/installation-guide
- Documentation Literaturewww.bimstore.co/products/dry-fix-continuous-verge-for-slate-angles-ridge-apex-piece/document/product-literature
- Documentation Maintenancewww.bimstore.co/products/dry-fix-continuous-verge-for-slate-angles-ridge-apex-piece/document/maintenance-information

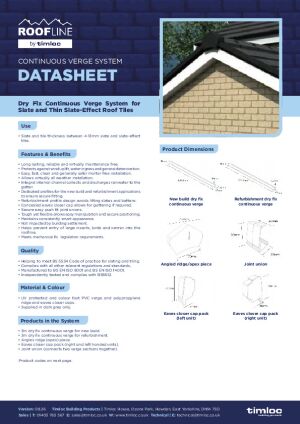

- Documentation Technicalwww.bimstore.co/products/dry-fix-continuous-verge-for-slate-angles-ridge-apex-piece/document/technical-data-sheet
- Duration UnitYears
- Expected Life0
- Featuresn/a
- Finishn/a
- Graden/a
- Ifc Export AsIfcBuildingElementProxyType
- Ifc Export TypeUSERDEFINED
- KeynoteJ42/480
- ManufacturerTimloc Building Products
- Manufacturer NameTimloc Building Products
- Materialn/a
- ModelDry fix continuous verge for slate angles ridge/apex piece
- Model Number66120
- Model ReferenceDry fix continuous verge for slate angles ridge/apex piece
- NBS DescriptionRoof ridge ventilator tiles
- NBS Object NameTimloc - Roof ridge ventilator tiles
- NBS Office Master Tagn/a
- NBS Reference45-20-75/360
- Nominal Depth65 mm
- Nominal Height205 mm
- Nominal Length270 mm
- Primary MaterialTimloc_Grey
- Production Year2024
- Referenced StandardHelping to meet BS 5534 Code of practice for slating and tiling. Complies with all other relevant regulations and standards. Manufactured to BS EN ISO 9001 and BS EN ISO 14001. Independently tested and complies with BS8612.
- Replacement Costn/a
- ShapeRectangular
- Size270 (L) x 205 (H) x 65 (D)
- Spare Partsn/a
- Type Comments66120
- Type Name66120
- URLtimloc.co.uk/
- Warranty Descriptionn/a
- Warranty Duration Labor0
- Warranty Duration Parts0
- Warranty Duration UnitYears
- Warranty Guarantor Laborsales@timloc.co.uk
- Warranty Guarantor Partssales@timloc.co.uk
We have more variations, please download the object to get them all.
Sustainability & Environmental Data
Not available.
Environmental Product Declarations
There are no EPDs.
