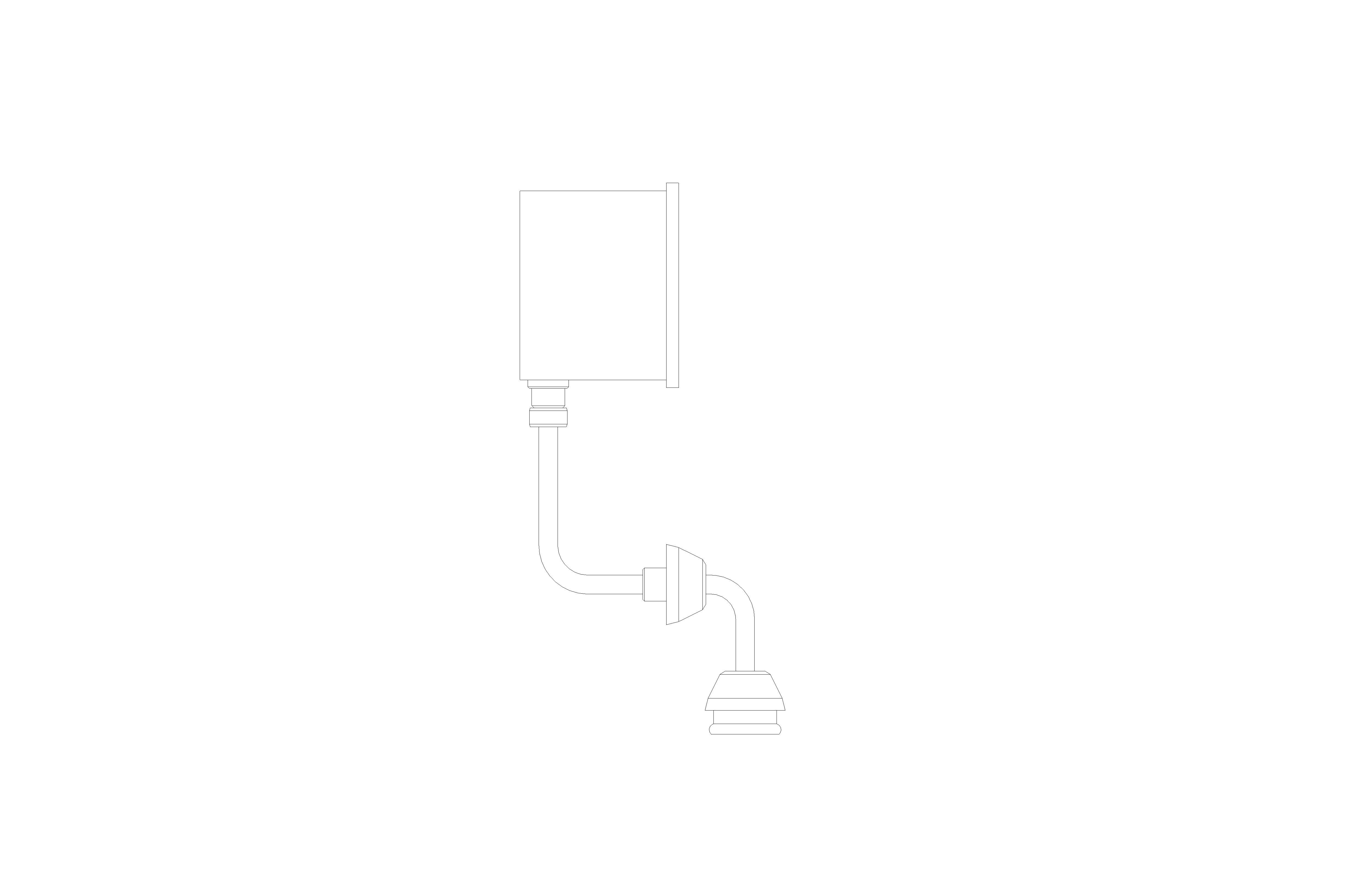

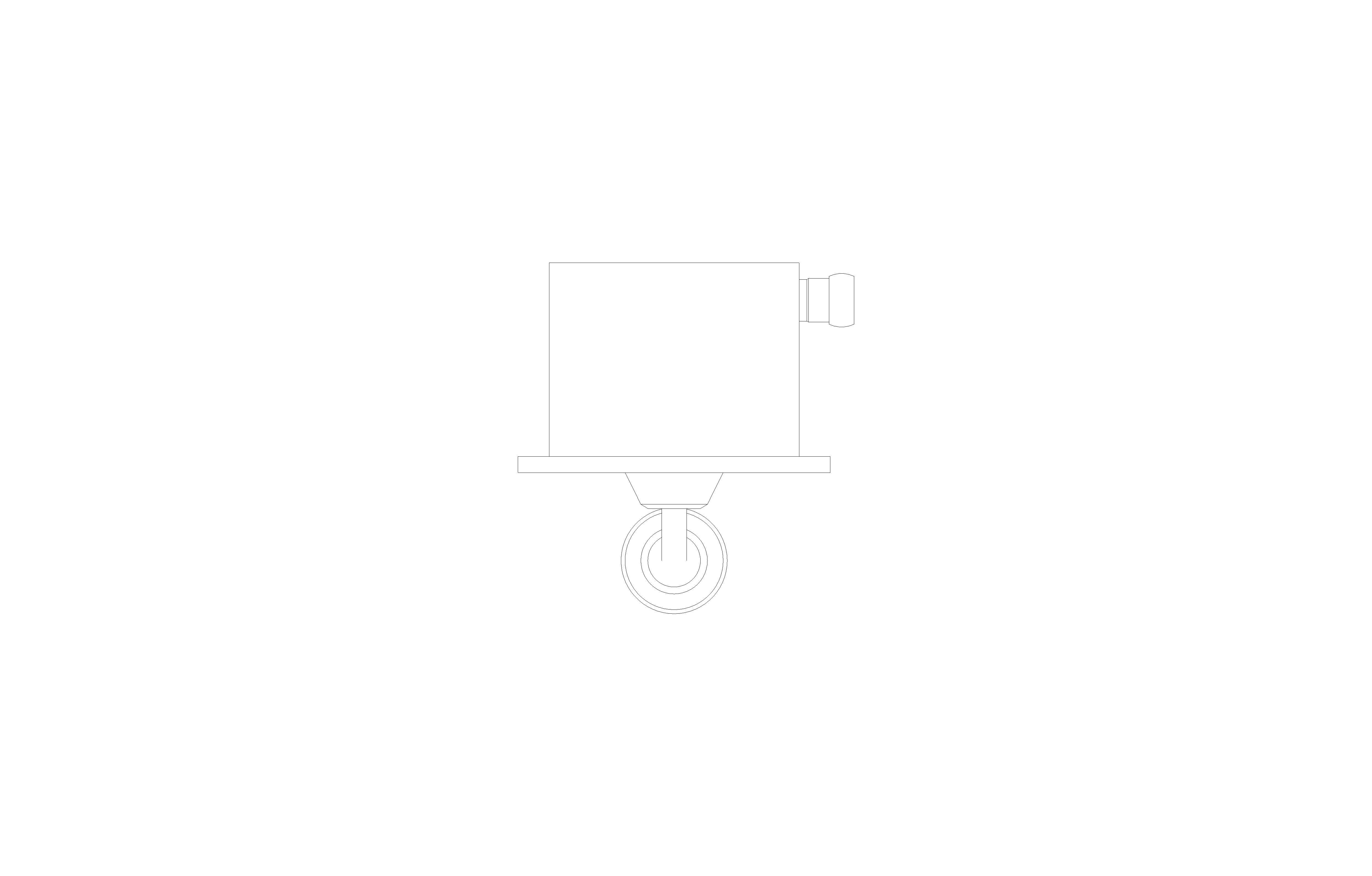

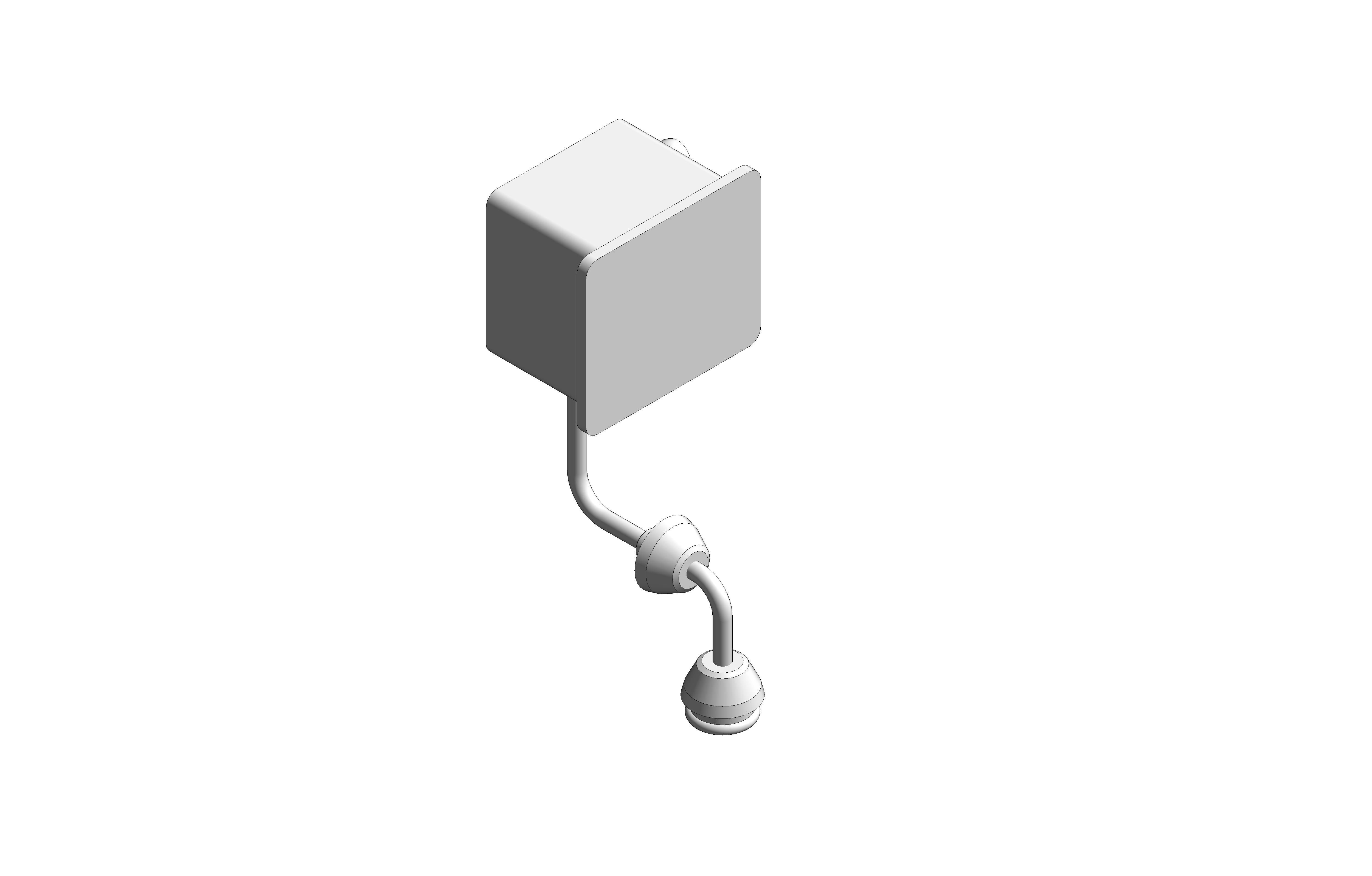

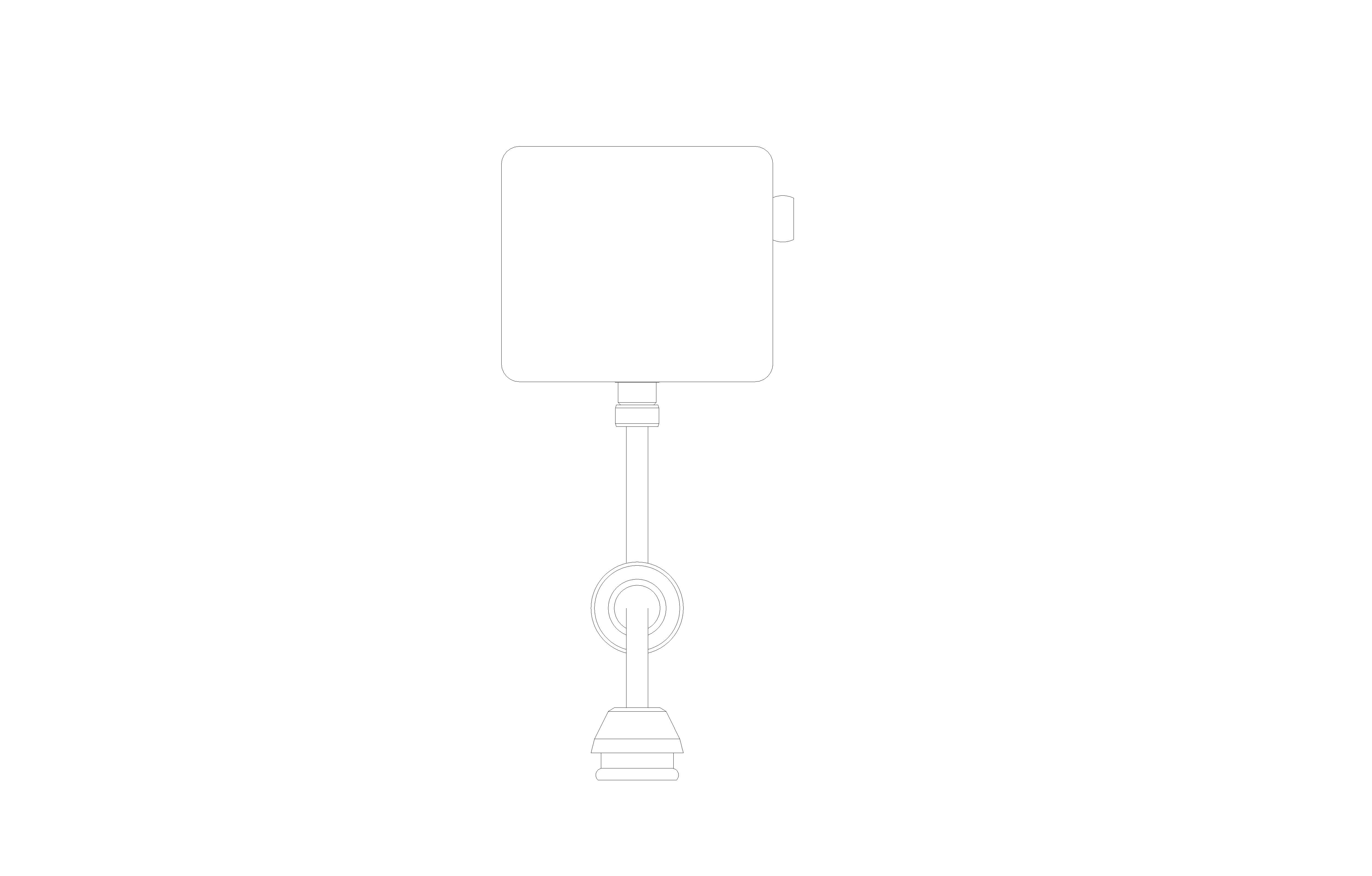

SenseFlow Concealed Sensor Urinal Flush Valve - FFAS8604-005500BC0

by American Standard

Download Add to collection

Description

Name: SenseFlow Concealed Sensor Urinal Flush Valve

SKU: FFAS8604-005500BC0

Product Category: Pro & Commercial (70)

Sub Category: Flushometer (73)

Product Group: Sensor Flush Valve Urinal (01)

Object Data

1 Revision

Last Updated

02/12/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Literature

Product Data Sheet

Object metadata

_Authorbimstore
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/ffas8604-005500bc0/document/object-user-guide
Accessibility Performancen/a
Assembly CodeC1030200
Asset TypeFixed
BIM Object NameAmericanStandard_FlushValve_Urinal_SenseFlow_(FFAS8604-005500BC0)
Classification NameUniclass2015
Classification ValuePr_40_20_93_79
Code Performancen/a
Colorn/a
Connection SizeG1/2 in
Constituentsn/a
Created Bywww.americanstandard-apac.com/
Created On2021-12-01T09:00:00
CW ConnectionYes
Default Elevation0 mm
DescriptionSenseFlow Concealed Sensor Urinal Flush Valve
Documentation Certificateswww.bimstore.co/products/ffas8604-005500bc0/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/ffas8604-005500bc0/document/installation-guide
Documentation Literaturewww.bimstore.co/products/ffas8604-005500bc0/document/product-literature
Documentation Maintenancewww.bimstore.co/products/ffas8604-005500bc0/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/ffas8604-005500bc0/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Flow Raten/a
Graden/a
HW ConnectionNo
Ifc Export AsIfcFlowTerminalType
Ifc Export TypeIfcFlowInstrumentType
Installation Typen/a
KeynoteN13
ManufacturerAmerican Standard
Manufacturer NameAmerican Standard
MaterialBrass
ModelSenseFlow Concealed Sensor Urinal Flush Valve
Model NumberFFAS8604-005500BC0
Model ReferenceSenseFlow Concealed Sensor Urinal Flush Valve
NBS DescriptionUrinal flushing valves
NBS Noten/a
NBS Object NameAmerican Standard - Urinal flushing valves
NBS Office Master Tagn/a
NBS Reference45-35-70/355
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Product CategoryPro & Commercial (70)
Product GroupSensor Flush Valve Urinal (01)
Production Year2021
Product Weight1.35 kg
Referenced StandardCJ/T 194-2014
Replacement Costn/a
Shapen/a
SizePanel Reach: 150, Panel Height: 130 mm
Spare Partsn/a
Style SegmentModern
Sub CategoryFlushometer (73)
Type CommentsFFAS8604-005500BC0
Type NameSenseFlow Concealed Sensor Urinal Flush Valve
URLwww.americanstandard-apac.com/
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborwww.americanstandard-apac.com/
Warranty Guarantor Partswww.americanstandard-apac.com/
Waste ConnectionNo

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
