Fig 100CYL DZR Ball Valve

Download Add to collection

Description

Features & Benefits:

Dezincification resistant.
Light, compact, easy to install and operate.
Improved leak protection.
More resistant to damage during installation.

Object Data

1 Revision

Last Updated

15/03/2014

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

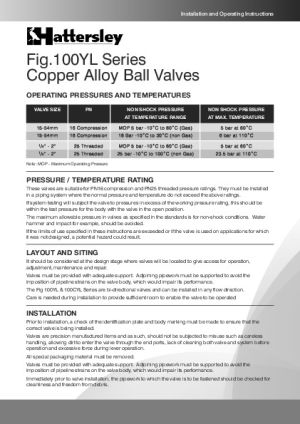

Installation Guide

Product Data Sheet

Object metadata

_authorKris Atkinson
_BIMspec_GUID0
_current revision1
_distributed bywww.bimstore.co.uk
15mmYes
22mmNo
28mmNo
35mmNo
42mmNo
54mmNo
ApprovalsWRAS Approved Product
Assembly CodeD30
BallCW602N
Barcode0
BodyDZR Brass BS CW602N
BonnetDZR Brass BS CW602N
Brake Downstand12 mm
Connection Size15 mm
DescriptionDZR Construction Blow-out proof stem Full bore hard chrome plated DZR ball EPDM ?O? ring PTFE seats and stem seals Tested by GL Industrial Services and complies with the essential requirements of BS EN 331:1998
Dim X11.5 mm
Dim XX13.5 mm
DocumentationLink URLwww.hattersley.com/documents/Fig. 100CYL Ball Valve Datasheet.pdf
Expected Life0
H mm47 mm
HandleDacromet Plated Steel
Handle Calc8 mm
Handle Collar Length20 mm
Handle Downstand17 mm
Handle Length60 mm
Handle SleevePVC Yellow
Handle Width16 mm
Hex-NutDacromet Plated Steel
K Coefficient20
KeynoteS
L mm68.5 mm
L1 mm14 mm
L2 mm98.5 mm
Loss Method2
ManufacturerHattersley
ModelHatts 100CYL
O_RingNBR with BS EN 549 Approval
OperatorLever
Packing GlandPTFE
Packing NutBrass CW617N
Pressure (BAR)www.hattersley.com/documents/Fig. 100CYL Ball Valve Datasheet.pdf
Pressure Rating (Cat)PN16
Product DescriptionGas Compression DZR Ball Valve - Lever - PN16
Product Documentation Linkwww.hattersley.com/documents/Fig. 100CYL Ball Valve Datasheet.pdf
Product Page URLwww.hattersley.com/productView.asp?prodID=160&catID=7
SeatsPTFE
Size mm7.5 mm
SleeveCW507L
Sleeve NutCW602N
Spare PartsLevers (004BRG100F517)
SparesLevers (004BRG100F517)
Specification NotesQuarter turn. PTFE seats and stem seal. Tested by GL Industrial Services and complies with the essential requirements of BS EN 331:1998.
StemDZR Brass BS CW602N
Temperature °C Gas Application-10 to 60°C
Temperature °C Non Gas Application-10 to 110°C
Type Comments15mm
UK End ConnectionCompression ends to BS EN 1254-2:1998.
Uniclass 2WR-90-94-95
URLwww.hattersley.com/
Valve Hax Calc 228.5 mm
Valve Hex Calc26.5 mm
Valve MaterialBrass, Soft Yellow
Warranty Duration12 months
Warranty Duration Unit12 months
Weight (kg)0.212

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
