FIREFLY Non-Combustible Backing Rod

by TBA FIREFLY

Download Add to collection

Description

Material Description

FIREFLY Non-Combustible Backing Rod is comprised of Fortaglas rope overbraided with a continuous filament; is permeable. Available in six roll sizes:

12.5mm x 100m weighing 2.77kg
15mm x 100m weighing 3.4kg
25mm x 80m weighing 7.28kg
30mm x 60m weighing 7.2kg
40mm x 50m weighing 9.9kg
50mm x 40m weighing 10.35kg

Applications

Used in between panel and other joints to fill voids in building façades

Object Data

1 Revision

Last Updated

08/04/2026

Available Software

BSB

Compliant

EPD

Not Available

Accompanying literature

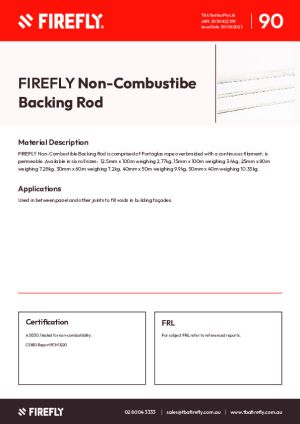

Technical Data Sheet

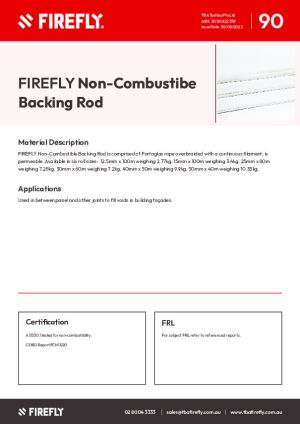

Product Data Sheet

Object metadata

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid17
_BS Bible Version0
_Created Bywww.bimstoreoz.au/
_Current Revision1
_Distributed Bywww.bimstoreoz.au/
Accessibility Performancen/a
Assembly CodeB2020200
Asset TypeFixed
Backing Rod Depth15 mm
Backing Rod Weight2.77 kg
Backing Rod Width13 mm
BIM Object NameTBAFirefly_Profile_NonCombustibleBackingRod
Classification NameUniclass2015
Classification ValuePr_25_80_79
Code Performancen/a
ColorWhite
Constituentsn/a
Created Bysales@tbafirefly.com.au
Created On2026-03-16T09:00:00
DescriptionFIREFLY Non-Combustible Backing Rod is comprised of Fortaglas rope overbraided with a continuous filament is permeable.
Documentation Certificatestbafirefly.com.au/product/non-combustible-backing-rod/
Documentation Installation Guidetbafirefly.com.au/product/non-combustible-backing-rod/
Documentation Literaturetbafirefly.com.au/product/non-combustible-backing-rod/
Documentation Maintenancetbafirefly.com.au/product/non-combustible-backing-rod/
Documentation Technicaltbafirefly.com.au/wp-content/uploads/2023/09/Datasheet-Non-Combustible-Backing-Rod.pdf
Duration UnitYears
Expected Life0
Export Type to IFC AsIfcMemberType
Featuresn/a
Finishn/a
Graden/a
Half Depth8 mm
Half Width6 mm
Ifc Export AsIfcMemberType
Ifc Export TypeUSERDEFINED
ManufacturerTBA Firefly
Manufacturer NameTBA Firefly
MaterialFortaglas
ModelNon-Combustible Backing Rod
Model Number12.5mm x 100m weighing 2.77kg
Model ReferenceNon-Combustible Backing Rod
NBS DescriptionSmoke and fire barriers
NBS Object NameTBA Firefly - Smoke and fire barriers
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth13 mm
Nominal Height15 mm
Nominal Length100000 mm
Production Year2026
Referenced StandardAS1530.1 tested for non-combustibility. CSIRO Report FCN11220.
Replacement Costn/a
ShapeRectangular
Size12.5mm x 100m
Spare Partsn/a
Type Comments12.5mm x 100m weighing 2.77kg
Type IFC Predefined TypeUSERDEFINED
Type Name12.5mm x 100m weighing 2.77kg
URLtbafirefly.com.au/
Warranty Descriptiontbafirefly.com.au/wp-content/uploads/2025/07/FIREFLY-PRODUCT-WARRANTY-10-07-25.pdf
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@tbafirefly.com.au
Warranty Guarantor Partssales@tbafirefly.com.au
