FR Multi-Service Block

by TBA FIREFLY

Download Add to collection

Description

FR Multi-Service Block is a sandwich of graphite intumescent and foam strips.

Used to firestop a range of services passing through a variety of 60 minute wall types.

Available in 116mm H x 100mm D x 1000mm W

Dimensions of FR Multi-Service Block aperture within the substrate can be:

100 mm - 1000 mm wide and up to 100 mm high (one FR Multi-Service Block)
100mm - 500 mm wide and up to 200 mm high (two FR Multi-Service Blocks stacked up)

Object Data

1 Revision

Last Updated

08/04/2026

Available Software

BSB

Compliant

EPD

Not Available

Accompanying literature

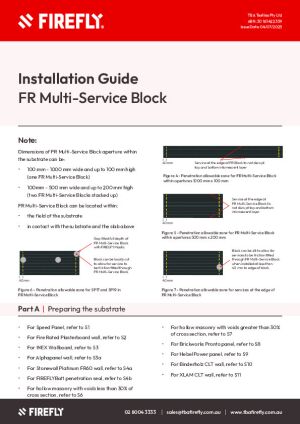

Installation Guide

Product Data Sheet

Object metadata

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstoreoz.au/
_Current Revision1
_Distributed Bywww.bimstoreoz.au/
Accessibility Performancen/a
Asset TypeFixed
BIM Object NameTBAFirefly_IntumescentFirestopping_MultiServiceBlock
Classification NameUniclass2015
Classification ValuePr_25_71_44_64
Code Performancen/a
ColorBlack
Constituentsn/a
Created Bysales@tbafirefly.com.au
Created On2026-03-31T09:00:00
Default Elevation1219 mm
DescriptionFR Multi-Service Block is a sandwich of graphite intumescent and foam strips. Used to firestop a range of services passing through a variety of 60 minute wall types.
Documentation Certificatestbafirefly.com.au/product/fr-multi-service-block/
Documentation Installation Guidetbafirefly.com.au/wp-content/uploads/2025/07/Installation-Guide_FR-Multi-Service-Block.pdf
Documentation Literaturetbafirefly.com.au/product/fr-multi-service-block/
Documentation Maintenancetbafirefly.com.au/product/fr-multi-service-block/
Documentation Technicaltbafirefly.com.au/product/fr-multi-service-block/
Duration UnitYears
Expected Life0
Export Type to IFC AsIfcBuildingElementProxyType
Featuresn/a
Finishn/a
Graden/a
Ifc Export AsIfcBuildingElementProxyType
Ifc Export TypeNOTDEFINED
ManufacturerTBA Firefly
Manufacturer NameTBA Firefly
MaterialGraphite intumescent
ModelFR Multi-Service Block
Model NumberFR Multi-Service Block - one block
Model ReferenceFR Multi-Service Block
Multi Service Block Depth100 mm
Multi Service Block Height100 mm
NBS DescriptionPlastics compressible joint fillers
NBS Object NameTBA Firefly - Plastics compressible joint fillers
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth100 mm
Nominal Height100 mm
Nominal Length1000 mm
Primary MaterialTBAFirefly_GraphiteIntumescent_FoamStrips
Production Year2026
Referenced StandardTested in accordance with AS1530.4 2014. Assessed in accordance with AS4072.1 2005. Warringtonfire Report FAS190236 RIR.
Replacement Costn/a
Secondary MaterialTBAFirefly_MasticSealant
ShapeRectangular
Size100mm(H) x 100mm(W) x 1000mm(L)
Spare Partsn/a
Type CommentsFR Multi-Service Block - one block
Type IFC Predefined TypeNOTDEFINED
Type NameFR Multi-Service Block - one block
URLtbafirefly.com.au/
Warranty Descriptiontbafirefly.com.au/wp-content/uploads/2025/07/FIREFLY-PRODUCT-WARRANTY-10-07-25.pdf
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@tbafirefly.com.au
Warranty Guarantor Partssales@tbafirefly.com.au
