NVFN - Fuel Shut-Off Valve - Flamstop
Description

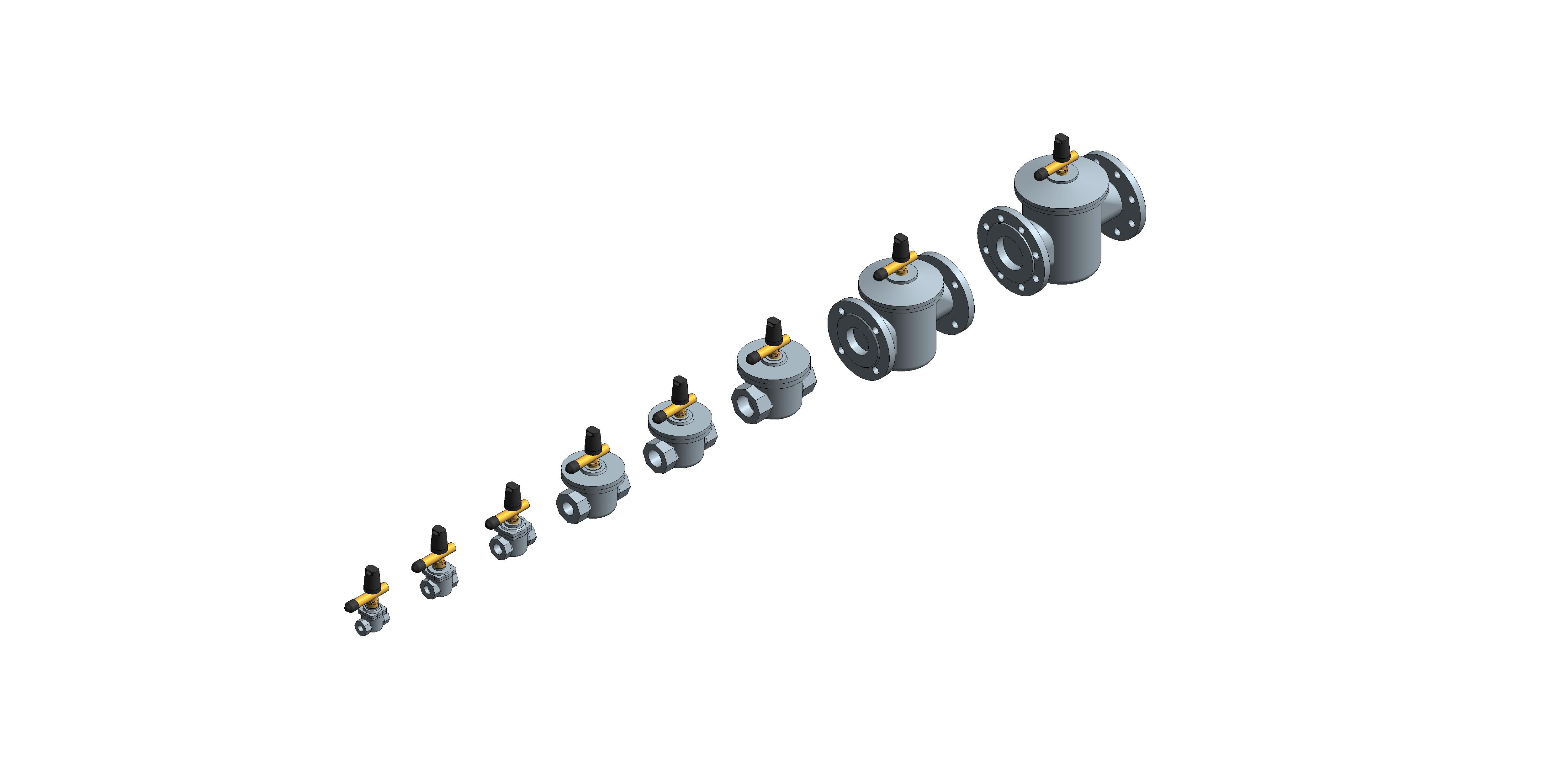

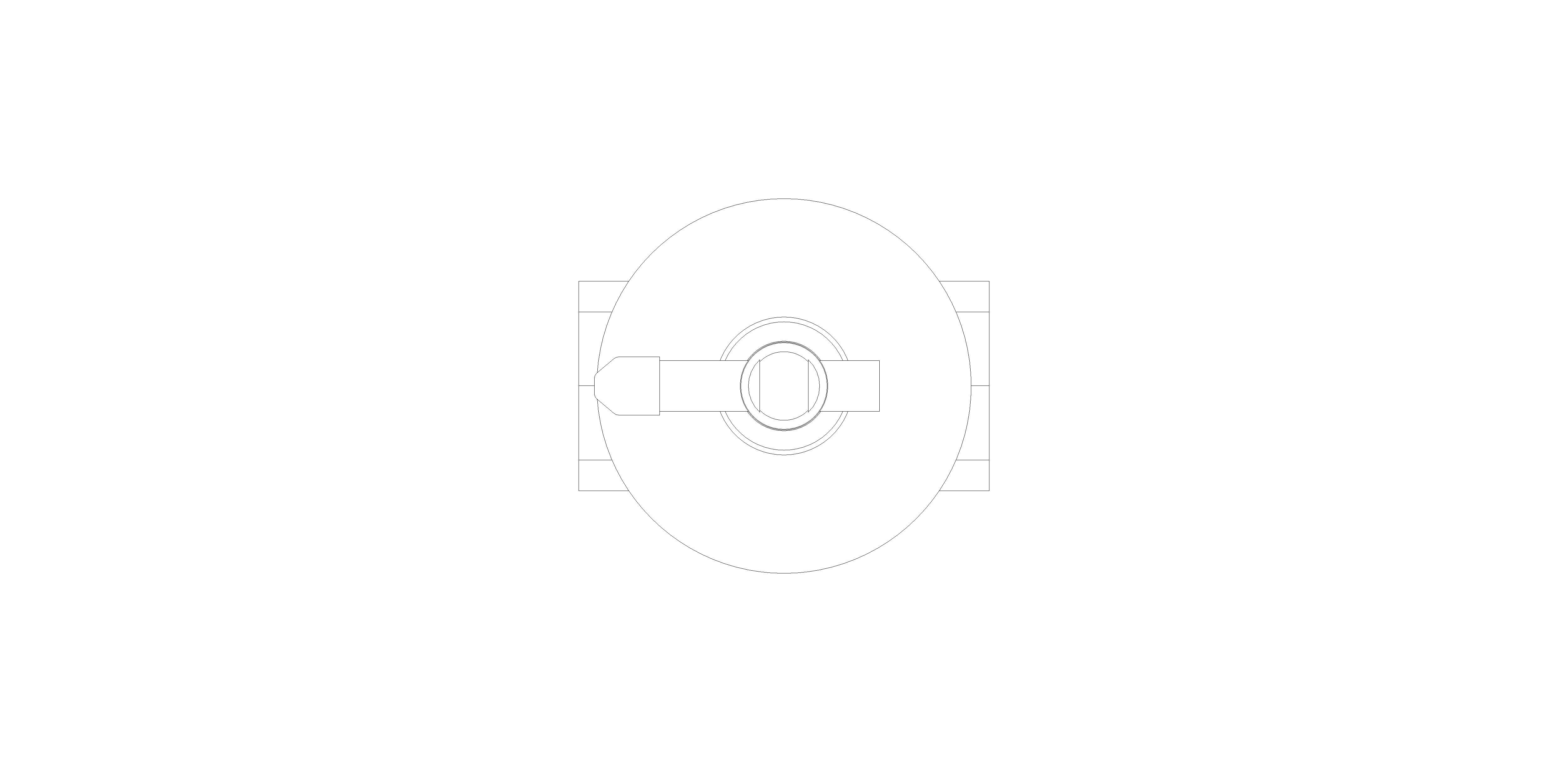

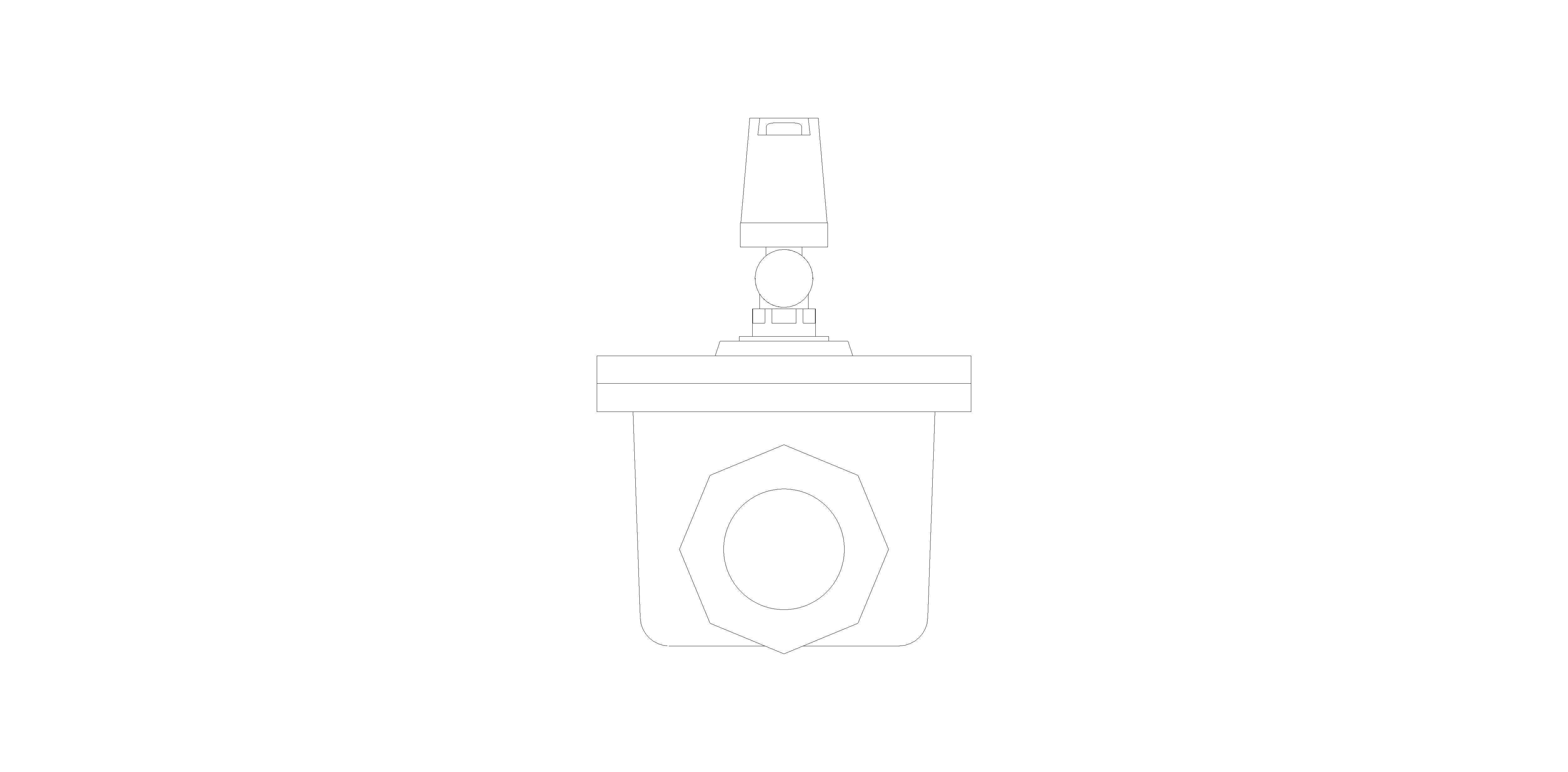

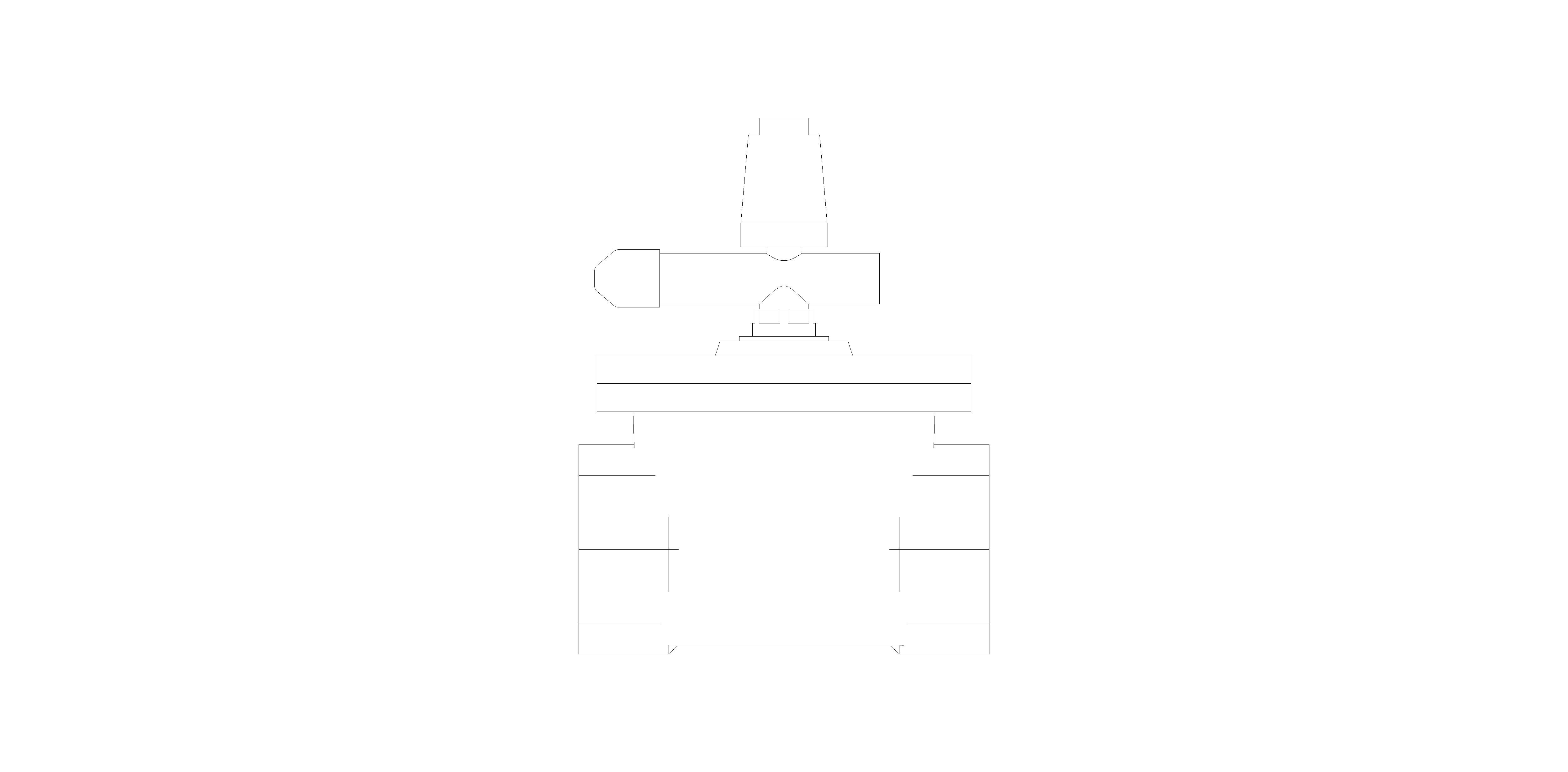

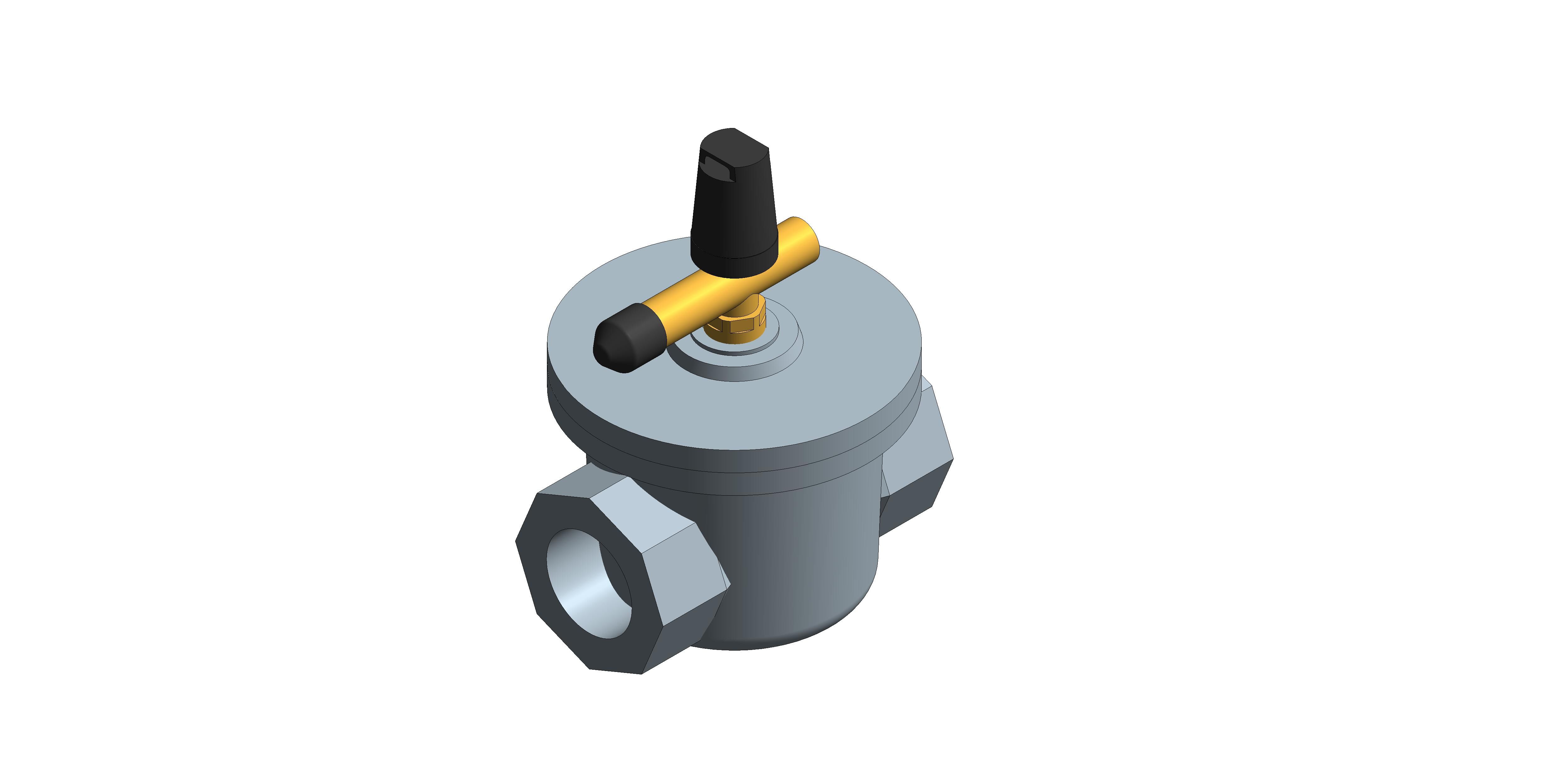

1/2” and 3/4” liquid and gas fuel shut-off valves, suitable for biodiesel. Positive action with manual resetting. Liquid expansion thermostat. Compact sensor. 1/2”M sensor sheath connection (with 1/2”F x 3/4”M nipple). INAIL approved and set. Compliant with Directives PED 2014/68/EU and ATEX 2014/34/EU.
Object Data
1 Revision
Last Updated
02/04/2024
Available Software
BS1192:4
Compliant
BSB
Compliant
EPD
Not Available
Object metadata
- _AuthorAM
- _Authorized Bybimstore
- _Bim Spec Guid0
- _BS Bible Version17
- _Created Bywww.bimstore.co/
- _Current Revision1
- _Distributed Bywww.bimstore.co/
- _Object User Guidewww.bimstore.co/products/fuel-shut-off-valve-nvfn/document/object-user-guide
- A70.0 mm
- Accessibility Performancen/a
- Angle88.00 °
- Assembly CodeD2040100
- Asset TypeFixed
- B15.1 mm
- BIM Object NameWatts_FuelShutOffValve_Flamstop_NVFN
- BodyDie-cast aluminium
- Body Type 1Yes
- Body Type 2No
- Body Type 3No
- C23.3 mm
- CapillaryElectrolytic copper
- Capillary Length5m
- Classification NameUniclass2015
- Classification ValuePr_65_54_33_49
- Code Performancen/a
- Colorn/a
- Connection Radius7.5 mm
- Connections[1/2"-2"]FF threaded gas (ISO 228/1)
- Connections[DN65-DN80]PN16 flanged (UNI 2223)
- Connection Size15.0 mm
- Constituentsn/a
- Created Bycontact@wattswater.com
- Created On2024-01-18 T09:00:00
- D24.0 mm
- Default Elevation0.0 mm
- Description1/2” and 3/4” liquid and gas fuel shut-off valves, suitable for biodiesel. Positive action with manual resetting. Liquid expansion thermostat. Compact sensor. 1/2”M sensor sheath connection (with 1/2”F x 3/4”M nipple). INAIL approved and set. Compliant with Directives PED 2014/68/EU and ATEX 2014/34/EU.
- Disc SpringAISI304 stainless steel
- DN65 FlangeNo
- DN80 FlangeNo
- Documentation Certificateswww.bimstore.co/products/fuel-shut-off-valve-nvfn/document/product-certificates
- Documentation Installation Guidewww.bimstore.co/products/fuel-shut-off-valve-nvfn/document/installation-guide

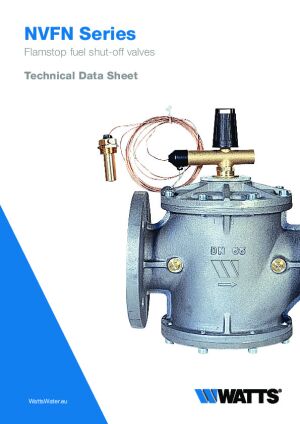

- Documentation Literaturewww.bimstore.co/products/fuel-shut-off-valve-nvfn/document/product-literature
- Documentation Maintenancewww.bimstore.co/products/fuel-shut-off-valve-nvfn/document/maintenance-information
- Documentation Technicalwww.bimstore.co/products/fuel-shut-off-valve-nvfn/document/technical-data-sheet
- Duration UnitYear
- E14.0 mm
- Expected Life0
- F4.5 mm
- Featuresn/a
- Finishn/a
- FlangeNo
- Flange Depth90.0 mm
- FuelsDiesel, fuel oil, natural gas, propane, butane
- G24.0 mm
- Graden/a
- H11.0 mm
- Heat Sensitive ElementLiquid expansion
- Heat Sensitive Element Sheath ConnectionG 1/2”M (ISO 228/1)
- HexYes
- Hex Width33.0 mm
- I45.5 mm
- Ifc Export AsIfcValve
- Ifc Export TypeIfcValveTypeEnum.CHECK
- J84.0 mm
- K43.5 mm
- KeynoteS12
- L10.0 mm
- M17.5 mm
- ManufacturerWatts
- Manufacturer NameWatts
- Materialn/a
- Maximum Operating Pressure6 bar (NVFN 15-25) - 1 bar (NVFN 32-80)
- Maximum Temperature[Sensor Side]120°C
- Maximum Temperature[Valve Side]50°C
- Minimum Storage Temperature-40°C
- Minimum Temperature[Sensor Side]-5°C
- Minimum Temperature[Valve Side]-15°C
- ModelNVFN
- Model NumberDN15
- Model ReferenceNVFN
- N20.0 mm
- NBS DescriptionShut-off valves and emergency valves
- NBS Noten/a
- NBS Object NameWatts - Shut-off valves and emergency valves
- NBS Office Master Tagn/a
- NBS Reference90-30-50/340
- Nominal Depth0.0 mm
- Nominal Height0.0 mm
- Nominal Length0.0 mm
- O4.5 mm
- Operating Range10-100°C
- P4.0 mm
- Production Year2024
- Q14.0 mm
- Referenced StandardApproved to ‘R’ regulations (2009 edition). Calibration certificate issued by lNAIL. In certain cases, INAIL regulations (R regulations, 2009 Edition) governing systems with boilers with heat output exceeding 35kW, require the use of a fuel shut-off valve in place of a thermal drain valve. They define a ‘fuel shut-off valve’ as: ‘a positive-action valve, which automatically shuts off the flow of fuel if the water overheats, so that it does not exceed the established safety temperature’. The fuel shut-off valve is a self-operated positive-safety device (operating without the use of external energy).
- Replacement Costn/a
- SealsFPM
- Setpoint Temperature97°C (±3°C)
- Shapen/a
- SizeDN15
- Spare Partsn/a
- Test Points[1/2"-2"]Qty. 2 x 1/4”
- Test Points[DN65-DN80]Qty. 4 x 1/4”
- Type CommentsDN15
- Type NameDN15
- URLwww.watts.eu/
- Warranty Descriptionn/a
- Warranty Duration Labor0
- Warranty Duration Parts0
- Warranty Duration UnitYear
- Warranty Guarantor Laborn/a
- Warranty Guarantor Partscontact@wattswater.com
We have more variations, please download the object to get them all.
