Ductile Iron PN16 Fully Lugged Butterfly Valve [00/0496]

Description

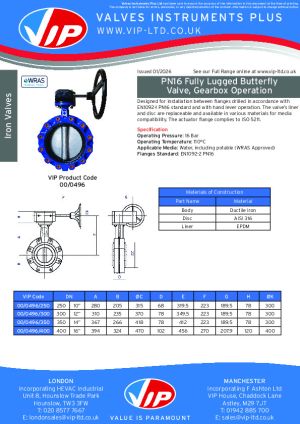

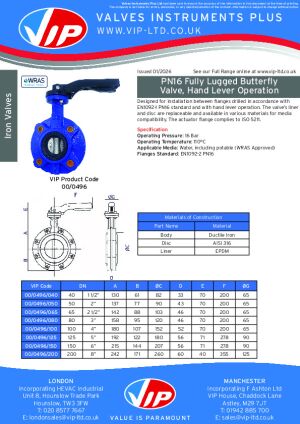

Ductile Iron Fully Lugged Butterfly Valve, PN16, 316 Stainless Steel Disc, EPDM Liner, Lever / Gearbox Operated.

Designed for installation between flanges drilled in accordance with EN1092-1 PN16 standard and with hand lever operation. The valve’s liner and disc are replaceable and available in
various materials for media compatibility. The actuator flange complies to ISO 5211.

Suitable for use with potable water, warm water, hot water and air. Typical applications include HVAC, petrochemical processing, oil and gas process, shipbuilding, etc.

Object Data

1 Revision

Last Updated

23/02/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/fully-lugged-butterfly-valve-00-0496/document/object-user-guide
a8.60 mm
A137.00 mm
Accessibility Performancen/a
Angle 145.00 °
Angle 245.00 °
Angle 345.00 °
Applicable FluidsWater, including potable
Assembly CodeD20
Asset TypeFixed
b39.00 mm
B77.00 mm
BIM Object NameVIP_ButterflyValve_FullyLugged_PN16_00-0496
BodyCast Iron
c20.00 mm
C90.00 mm
C Inner77.59 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_08
Code Performancen/a
Colorn/a
Connection Size50.00 mm
Connection Size Radius25.00 mm
Constituentsn/a
Created Bysales@vip-ltd.co.uk
Created On2023-07-13 T:09:00:00
D43.00 mm
Default Elevation0.00 mm
DescriptionDesigned for installation between flanges drilled in accordance with EN1092-1 PN16 standard and with hand lever operation. The valve’s liner and disc are replaceable and available in various materials for media compatibility. The actuator flange complies to ISO 5211. Suitable for use with potable water, warm water, hot water and air. Typical applications include HVAC, petrochemical processing, oil and gas process, shipbuilding, etc.
DiscAISI 316
Documentation Certificateswww.bimstore.co/products/fully-lugged-butterfly-valve-00-0496/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/fully-lugged-butterfly-valve-00-0496/document/installation-guide
Documentation Literaturewww.bimstore.co/products/fully-lugged-butterfly-valve-00-0496/document/product-literature
Documentation Maintenancewww.bimstore.co/products/fully-lugged-butterfly-valve-00-0496/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/fully-lugged-butterfly-valve-00-0496/document/technical-data-sheet
d Rad9.00 mm
Duration UnitYear
e20.00 mm
E70.00 mm
Expected Life0
Export Type to IFC AsIfcValve
F200.00 mm
Featuresn/a
Finishn/a
Flanges StandardEN1092-2 PN16
G65.00 mm
Gearbox LargeNo
Gearbox SmallNo
Graden/a
Handle Offset137.00 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
K Coefficient0
KeynoteS
Lever LargeNo
Lever MediumNo
Lever SmallYes
LinerEPDM
Loss MethodK Coefficient
Lug Hole Offset63.00 mm
Lug Hole Radius8.00 mm
Lug Inner Radius45.00 mm
Lug Outer Radius14.00 mm
ManufacturerVIP
Manufacturer NameVIP
Materialn/a
Model00-0496 DN50
Model Number00-0496 DN50
Model Reference00-0496
NBS DescriptionButterfly valves
NBS Noten/a
NBS Object NameVIP - Butterfly valves
NBS Office Master Tagn/a
NBS Reference90-10-90/332
Nominal Depth0.00 mm
Nominal Height0.00 mm
Nominal Length0.00 mm
Operating Pressure16 bar
Operating Temperature110°C
Production Year2023
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN50
Spare Partsn/a
Stem Top32.00 mm
Stem Width40.00 mm
Symbol Length30.00 mm
Type CommentsPN16 Fully Lugged Butterfly Valve, Hand Lever Operation
Type IFC Predefined TypeIfcValveTypeEnum.CHECK
Type Name00-0496 DN50
URLwww.vip-ltd.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partssales@vip-ltd.co.uk
Wras ApprovalYes
x15.00 mm
y30.00 mm
