ALLURE Three-hole basin mixer 1/2″ M-Size (20193MS2)

by GROHE

Download Add to collection

Description

Product Number - 20193MS2

EAN - 4005176945212

Colour - Satin Steel

PRODUCT MAIN FEATURES

wall mounted
with lever handles
set for final installation for
29 025 002
valves hot/cold with headparts 1/2" - 90°
GROHE Long-Life finish
GROHE Water Saving - Less water, perfect flow
maximum flow rate (at 3 bar): 5 l/min
Precision Control with haptic click feedback (optional)
GROHE AquaGuide adjustable slim air mousseur
projection 208 mm
without roughing-in set 29 025 002 (please order separately)

Product Page - https://www.grohe.co.uk/en_gb/three-hole-basin-mixer-1-2-m-size-20193MS2.html

Object Data

1 Revision

Last Updated

25/09/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

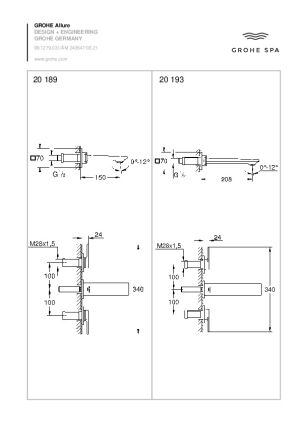

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL 198
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/fb576a6e-62ea-4dce-b449-44d18beea33c/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameGroheSpa_Allure_BasinMixer_20193MS2
Classification NameUniclass2015
Classification ValuePr_40_20_87_55
CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
Code Performancen/a
ColorSatin Steel
Constituentsn/a
Cradle To Cradle CertificationN/A
Created Byinfo-uk@grohe.com
Created On2025-07-17T09:00:00
Default Elevation0 mm
DescriptionALLURE 3-Hole Basin Mixer 1/2″ M-Size (20193MS2)
Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/100000/100000/100000/100200/100240/100243/100243866/1280/100243866.jpg
Documentation Certificateswww.bimstore.co/products/fb576a6e-62ea-4dce-b449-44d18beea33c/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/fb576a6e-62ea-4dce-b449-44d18beea33c/document/installation-guide
Documentation Literaturewww.bimstore.co/products/fb576a6e-62ea-4dce-b449-44d18beea33c/document/product-literature
Documentation Maintenancewww.bimstore.co/products/fb576a6e-62ea-4dce-b449-44d18beea33c/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/fb576a6e-62ea-4dce-b449-44d18beea33c/document/technical-data-sheet
Duration UnitYears
EcojoyNo
EF000003Wall
EF000139Coated
EF000278not relevant
EF000958true
EF001469not relevant
EF00170770
EF002149false
EF002286External thread
EF002671Other
EF005474not applicable
EF006974Manually operated
EF007955false
EF011775AA, free air gap
EF011779false
EF011781not applicable
EF0127535.00
EF013612true
EF014578false
EF014591false
EF015280false
EF016712TRUE
EF016713TRUE
EF016714TRUE
EF016731None
EF016945FALSE
EF017097TRUE
EF020075Yes
EF020103false
EF020105No
EF020780Two-grip
EF020781Top section, ceramic
EF020787Group II, <=30 dB(A)
EF020789208
EF020791Brass
EF020792false
EF020794false
EF020795Flexible with rinsing shower
EF02079670 mm
EF020798not relevant
EF020799true
EF020800true
EF020801false
EF020803true
EF020871false
EF020872false
EFBE0001TRUE
Expected Life0
Featuresn/a
FinishSatin Steel
Full Recyclability Of PlasticAll plastic components are fully recycable
Graden/a
GROHE Social Committmentgreen.grohe.com/social_engagement
GROHE Sustainabilitygreen.grohe.com
Ifc Export AsIfcValveType
Ifc Export TypeFAUCET
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
Materialn/a
ModelALLURE 3-Hole Basin Mixer 1/2″ M-Size (20193MS2)
Model Number20193MS2
Model ReferenceALLURE 3-Hole Basin Mixer 1/2″ M-Size (20193MS2)
NBS DescriptionMixer taps
NBS Noten/a
NBS Object NameGrohe - Mixer taps
NBS Office Master Tagn/a
NBS Reference45-35-70/345
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
PQ Diagram Linkcdn.cloud.grohe.com/PQCharts/lores/2/201/original/20193MS2-pqchart-en_GB.svg
Primary MaterialGrohe_SatinSteel
Product Descriptionwall mounted with lever handles set for final installation for 29 025 002 valves hot/cold with ceramic headparts 1/2" - 90° GROHE Long-Life finish GROHE Water Saving - Less water, perfect flow maximum flow rate (at 3 bar): 5 l/min Precision Control with haptic click feedback (optional) GROHE AquaGuide adjustable slim air mousseur center distance 200 mm projection 208 mm without roughing-in set 29 025 002 (please order separately)
Production Year2025
Product Number20193MS2
Product Page URLwww.grohe.co.uk/en_gb/-20193MS2.html
Product Short TextThree-hole basin mixer 1/2"<br />M-Size
Product TypeTwo Handle Fitting
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsinfo-uk@grohe.com
Sustainability Awardgreen.grohe.com/awards
Sustainability Reportgreen.grohe.com/reporting
TPI Document Linkcdn.cloud.grohe.com/tpi/100000/100000/100000/100000/100090/100097/100097656/original/100097656.pdf
Type CommentsALLURE 3-Hole Basin Mixer 1/2″ M-Size (20193MS2)
Type NameALLURE 3-Hole Basin Mixer 1/2″ M-Size (20193MS2)
URLwww.grohe.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
