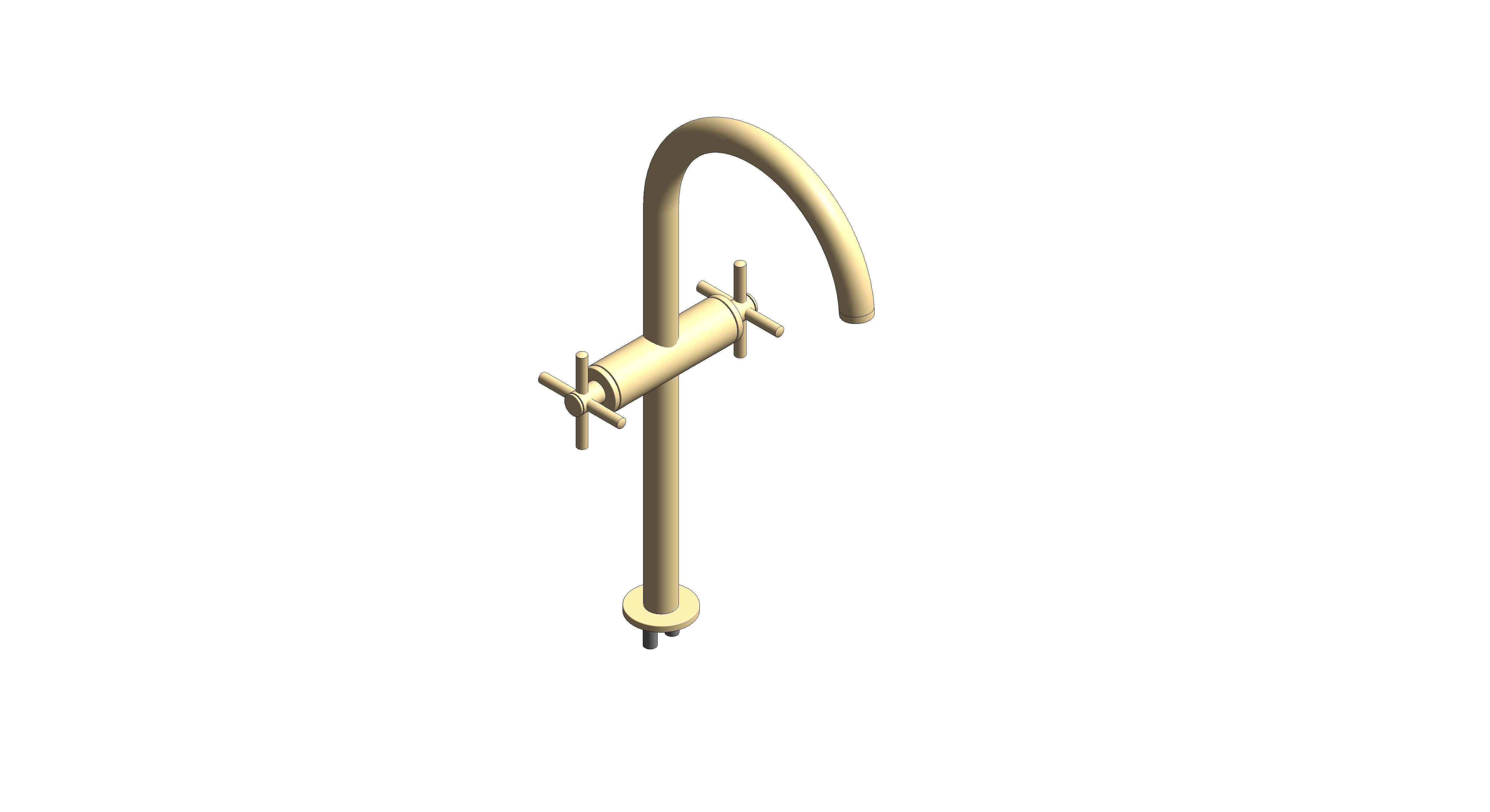

ATRIO Basin mixer, 1/2″ XL-Size (21149GL0)

Download Add to collection

Description

Product Number - 21149GL0

EAN - 4005176761256

Colour - Cool Sunrise

PRODUCT MAIN FEATURES

for free-standing basins
ceramic headparts 1/2", 90°
GROHE Long-Life finish
GROHE EcoJoy 5.7 l/min laminar mousseur
rapid installation system
swivel tubular spout with mousseur and stop limiter
Push-open waste set 1 1/4"
flexible connection hoses
with cross handles
Two different sets of caps included. One set with "H" and "C" marking, one set without marking.

Product Page - https://www.grohe.co.uk/en_gb/basin-mixer-1-2-xl-size-21149GL0.html

Object Data

1 Revision

Last Updated

25/09/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorJY 152
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/grohe-21149gl0/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameGrohe_BasinMixer_Atrio_21149GL0
Classification NameUniclass2015
Classification ValuePr_40_20_87_98
CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
Code Performancen/a
ColorCool Sunrise
Constituentsn/a
Cradle To Cradle Certificationn/a
Created Byinfo-uk@grohe.com
Created On2023-05-04T09:00:00
Default Elevation0.0 mm
DescriptionATRIO Basin mixer, 1/2″ XL-Size
Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/100000/100000/100000/100000/100080/100089/100089175/1280/100089175.jpg
Documentation Certificateswww.bimstore.co/products/grohe-21149gl0/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/grohe-21149gl0/document/installation-guide
Documentation Literaturewww.bimstore.co/products/grohe-21149gl0/document/product-literature
Documentation Maintenancewww.bimstore.co/products/grohe-21149gl0/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/grohe-21149gl0/document/technical-data-sheet
Duration UnitYears
EcojoyNo
EF000003Top/tap hole
EF000139Other
EF00170770 °C
EF002149FALSE
EF002286External thread
EF002671Other
EF007955FALSE
EF011775AA, free air gap
EF011779FALSE
EF011781not applicable
EF0127535.0
EF014578FALSE
EF014591FALSE
EF015280FALSE
EF016731Group I,<= 20 dB(A)
EF020075Yes
EF020105No
EF020780Two-grip
EF020781Top section, ceramic
EF0207853/8 inch
EF020787Group II, <=30 dB(A)
EF020789180.0 mm
EF020791Brass
EF020792FALSE
EF020794TRUE
EF020795Rotatable
EF020796420.0 mm
EF020797324.0 mm
EF020798not relevant
EF020799TRUE
EF020801FALSE
EF0218081-hole
EF022042None
EF022168FALSE
EF022750Pipe
EF023686not applicable
EF023687FALSE
EF023688Anti-splash jet nozzle
EF025109Polished
EFDE0022Group I, <=20 dB(A)
EFSE0002FALSE
Expected Life0
Featuresn/a
Finishn/a
Full Recyclability Of PlasticAll plastic components are fully recyclable
Graden/a
GROHE Social Committmentgreen.grohe.com/social_engagement
GROHE Sustainabilitygreen.grohe.com
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
Materialn/a
ModelATRIO Basin mixer, 1/2″ XL-Size
Model Number21149GL0
Model ReferenceATRIO Basin mixer, 1/2″ XL-Size
NBS DescriptionWashbasin taps
NBS Noten/a
NBS Object NameGrohe - Washbasin taps
NBS Office Master Tagn/a
NBS Reference45-35-70/371
Nominal Depth0.0 mm
Nominal Height0.0 mm
Nominal Length0.0 mm
PQ Diagram Linkcdn.cloud.grohe.com/PQCharts/lores/2/211/original/21149GL0-pqchart-en_GB.svg
Primary MaterialGrohe_CoolSunrise
Product Descriptionfor free-standing basins ceramic headparts 1/2", 90° GROHE Long-Life Shine finish GROHE Water Saving 5.7 l/min laminar mousseur rapid installation system swivel tubular spout with mousseur and stop limiter push-open waste set 1 1/4" flexible connection hoses with cross handles Two different sets of caps included. One set with "H" and "C" marking, one set without marking.
Production Year2023
Product Number21149GL0
Product Page URLwww.grohe.co.uk/en_gb/-21149GL0.html
Product Short TextAtrio New 2hdl vessel smth b XL
Product TypeTwo Handle Fitting
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsinfo-uk@grohe.com
Sustainability Awardgreen.grohe.com/awards
Sustainability Reportgreen.grohe.com/reporting
TPI Document Linkcdn.cloud.grohe.com/tpi/2000/2200/2200/2200/2200470/original/2200470.pdf
Type CommentsATRIO Basin mixer, 1/2″ XL-Size
Type NameATRIO Basin mixer, 1/2″ XL-Size
URLwww.grohe.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
