RAINSHOWER AQUA Body spray round 2 spray (26801MG0)

Download Add to collection

Description

Product Number - 26801MG0

EAN - 4005176944413

Colour - Satin Graphite

PRODUCT MAIN FEATURES

spray patterns: PureRain, ActiveJet
including concealed body and compound seal
Ø 75 mm
pivoting range ± 15° rotatable
connection thread 1/2"
throw distance 600 mm
GROHE Water Saving Plus - extra efficient water usage, perfect flow
maximum flow rate (at 3 bar): 3.3 l/min
GROHE DreamSpray perfect spray pattern
SpeedClean anti-limescale system
min. recommended pressure 1.0 bar
not suitable for instantaneous heater

Product Page - https://www.grohe.co.uk/en_gb/body-spray-round-2-spray-26801MG0.html

Object Data

1 Revision

Last Updated

29/09/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

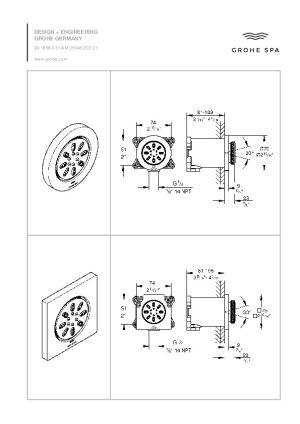

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL 198
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/31715e57-8bf3-4dc4-9988-e2a683d71f2c/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameGroheSpa_RainshowerAqua_BodySpray_(26801MG0)
Classification NameUniclass2015
Classification ValuePr_40_20_87_76
CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
Code Performancen/a
ColorSatin Graphite
Constituentsn/a
Cradle To Cradle CertificationN/A
Created Byinfo-uk@grohe.com
Created On2025-07-17T09:00:00
Default Elevation0 mm
DescriptionRAINSHOWER AQUA Body Spray Round 2 Spray (26801MG0)
Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/100000/100000/100000/100200/100240/100243/100243432/1280/100243432.jpg
Documentation Certificateswww.bimstore.co/products/31715e57-8bf3-4dc4-9988-e2a683d71f2c/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/31715e57-8bf3-4dc4-9988-e2a683d71f2c/document/installation-guide
Documentation Literaturewww.bimstore.co/products/31715e57-8bf3-4dc4-9988-e2a683d71f2c/document/product-literature
Documentation Maintenancewww.bimstore.co/products/31715e57-8bf3-4dc4-9988-e2a683d71f2c/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/31715e57-8bf3-4dc4-9988-e2a683d71f2c/document/technical-data-sheet
Duration UnitYears
EcojoyNo
EF00000889
EF00004075
EF000049120 mm
EF00030311
EF000443Internal thread
EF00055175 mm
EF000653true
EF000664true
EF00170770 °C
EF002671Other
EF006114false
EF0127533.30
EF015301not applicable
EF0210401
EF021180TRUE
EF021480false
EF022042None
EF022221true
EF022222false
EF022223true
EF022224true
EF022726Internal thread
EF0234521/2 inch
EF023686not applicable
Expected Life0
Featuresn/a
FinishSatin Graphite
Full Recyclability Of PlasticAll plastic components are fully recycable
Graden/a
GROHE Social Committmentgreen.grohe.com/social_engagement
GROHE Sustainabilitygreen.grohe.com
Ifc Export AsIfcSanitaryTerminalType
Ifc Export TypeSHOWER
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
Materialn/a
ModelRAINSHOWER AQUA Body Spray Round 2 Spray (26801MG0)
Model Number26801MG0
Model ReferenceRAINSHOWER AQUA Body Spray Round 2 Spray (26801MG0)
NBS DescriptionShower heads
NBS Noten/a
NBS Object Namegrohe - Shower heads
NBS Office Master Tagn/a
NBS Reference45-35-70/333
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
PQ Diagram Linkcdn.cloud.grohe.com/PQCharts/lores/2/268/original/26801MG0-pqchart-en_GB.svg
Primary MaterialGrohe_SatinGraphite
Product Descriptionspray patterns: PureRain, ActiveJet including concealed body and compound seal Ø 75 mm pivoting range ± 15° rotatable connection thread 1/2" throw distance 600 mm GROHE Water Saving Plus - extra efficient water usage, perfect flow maximum flow rate (at 3 bar): 3.3 l/min GROHE DreamSpray perfect spray pattern SpeedClean anti-limescale system min. recommended pressure 1.0 bar not suitable for instantaneous heater
Production Year2025
Product Number26801MG0
Product Page URLwww.grohe.co.uk/en_gb/-26801MG0.html
Product Short TextBody spray round 2 spray
Product TypeSingle Shower
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsinfo-uk@grohe.com
Sustainability Awardgreen.grohe.com/awards
Sustainability Reportgreen.grohe.com/reporting
TPI Document Linkcdn.cloud.grohe.com/tpi/100000/100000/100000/100200/100230/100232/100232117/original/100232117.pdf
Type CommentsRAINSHOWER AQUA Body Spray Round 2 Spray (26801MG0)
Type NameRAINSHOWER AQUA Body Spray Round 2 Spray (26801MG0)
URLwww.grohe.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
