TALENTOFILL Inlet-, pop-up and waste-system (28990MG0)

Download Add to collection

Description

Product Number - 28990MG0

EAN - 4005176944673

Colour - Satin Graphite

PRODUCT MAIN FEATURES

for normal baths
without finishing trim set
with bottle trap and 45°-outlet-bend

Product Page - https://www.grohe.co.uk/en_gb/inlet-pop-up-and-waste-system-28990MG0.html

Object Data

1 Revision

Last Updated

29/09/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorRL 198
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/161ca308-df8e-49be-a264-0f9437b8595b/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameGrohe_Talentofill_PopUpAndWasteSystem_(28990MG0)
Classification NameUniclass2015
Classification ValuePr_70_55_96_97
CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
Code Performancen/a
ColorSatin Graphite
Constituentsn/a
Cradle To Cradle CertificationN/A
Created Byinfo-uk@grohe.com
Created On2025-07-17T09:00:00
Default Elevation1219 mm
DescriptionTALENTOFILL Inlet, Pop-Up And Waste-System (28990MG0)

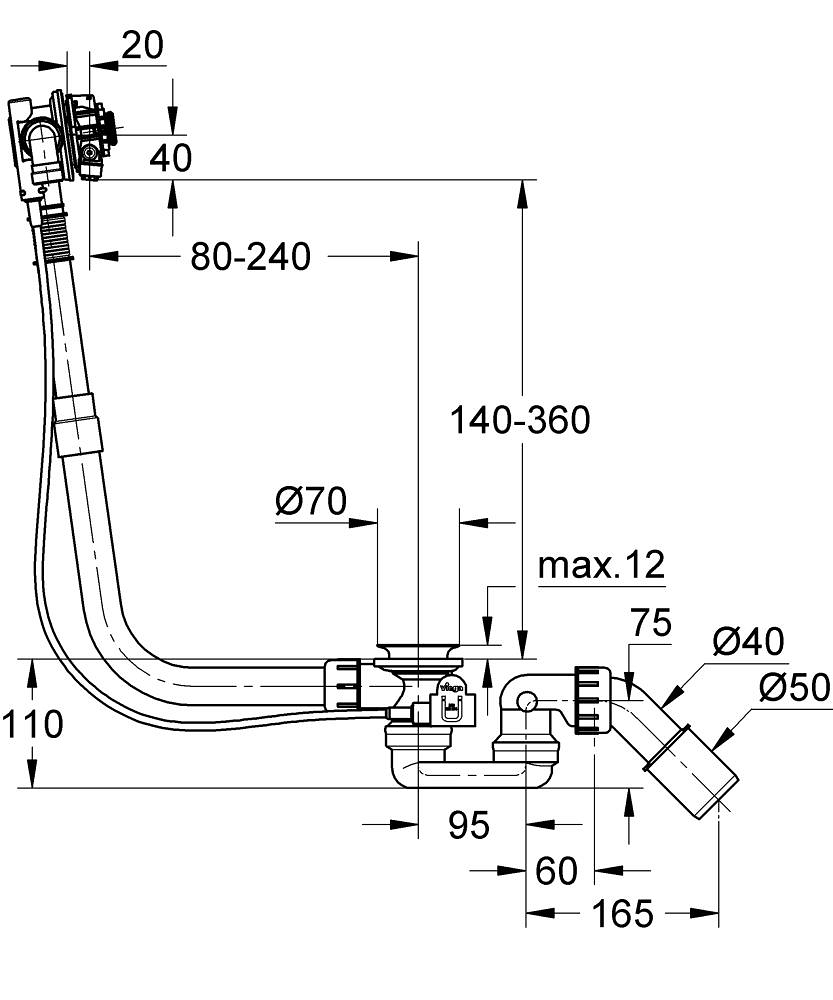

Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/1000/1100/1150/1157/1157963/1280/1157963.jpg
Documentation Certificateswww.bimstore.co/products/161ca308-df8e-49be-a264-0f9437b8595b/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/161ca308-df8e-49be-a264-0f9437b8595b/document/installation-guide
Documentation Literaturewww.bimstore.co/products/161ca308-df8e-49be-a264-0f9437b8595b/document/product-literature
Documentation Maintenancewww.bimstore.co/products/161ca308-df8e-49be-a264-0f9437b8595b/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/161ca308-df8e-49be-a264-0f9437b8595b/document/technical-data-sheet
Duration UnitYears
EcojoyNo
EF000007Other
EF02170350
EF021707true
EF021710Tube end
EF021711Union nut
EF021836true
EF022233Other
EF022234true
EF0226871 1/2 inch
EF023777External thread
EF0250883/4 inch
Expected Life0
Featuresn/a
FinishSatin Graphite
Full Recyclability Of PlasticAll plastic components are fully recycable
Graden/a
GROHE Social Committmentgreen.grohe.com/social_engagement
GROHE Sustainabilitygreen.grohe.com
Ifc Export AsIfcFlowTerminalType
Ifc Export TypeSINK
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
Materialn/a
ModelTALENTOFILL Inlet, Pop-Up And Waste-System (28990MG0)
Model Number28990MG0
Model ReferenceTALENTOFILL Inlet, Pop-Up And Waste-System (28990MG0)
NBS DescriptionWastes for wash basins
NBS Noten/a
NBS Object NameGrohe - Wastes for wash basins
NBS Office Master Tagn/a
NBS Reference45-35-70/372
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
PQ Diagram Linkcdn.cloud.grohe.com/PQCharts/lores/2/289/original/28990MG0-pqchart-en_GB.svg
Product Descriptionfor normal bath tubs without finishing trim set with bottle trap and 45°-outlet-bend without anti-vacuum device installation according to DIN 1988 only with anti-vacuum device A2 type or Talentofill connection set (28 995)
Production Year2025
Product Number28990MG0
Product Page URLwww.grohe.co.uk/en_gb/-28990MG0.html
Product Short TextInlet-, pop-up and waste-system
Product TypeInlet-, Waste- +Overflow Fitti
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsinfo-uk@grohe.com
Sustainability Awardgreen.grohe.com/awards
Sustainability Reportgreen.grohe.com/reporting
TPI Document Linkcdn.cloud.grohe.com/tpi/1000/1100/1130/1131/1131965/original/1131965.pdf
Type CommentsTALENTOFILL Inlet, Pop-Up And Waste-System (28990MG0)
Type NameTALENTOFILL Inlet, Pop-Up And Waste-System (28990MG0)
URLwww.grohe.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
