NOVA COSMOPOLITAN Flush Plate (38765MG0)

Download Add to collection

Description

Product Number - 38765MG0

EAN - 4005176944697

Colour - Satin Graphite

PRODUCT MAIN FEATURES

for dual flush or start & stop actuation
for pneumatic drop valve AV1
for vertical and horizontal installation
156 x 197 mm
material: ABS
GROHE Long-Life finish
GROHE EcoJoy - Less water, perfect flow
for combination with Rapid SL 1.13 m with GD 2 cistern
for use with Rapid SLX please order shaft 66 791 000 (sold separately)

Product Page - https://www.grohe.co.uk/en_gb/flush-plate-38765MG0.html

Object Data

1 Revision

Last Updated

29/09/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

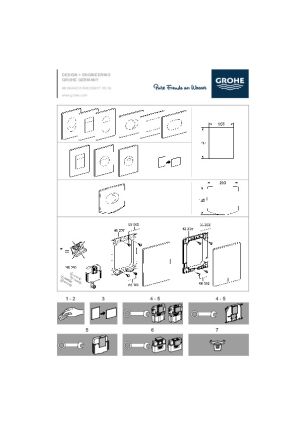

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL 198
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/613353f4-57c7-4f3e-9dc3-c18f38dd0f18/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameGrohe_NovaCosmopolitan_FlushPlate_(38765MG0)
Classification NameUniclass2015
Classification ValuePr_75_50_46_31
CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
Code Performancen/a
ColorSatin Graphite
Constituentsn/a
Cradle To Cradle CertificationN/A
Created Byinfo-uk@grohe.com
Created On2025-07-17T09:00:00
Default Elevation1219 mm
DescriptionNOVA COSMOPOLITAN Flush Plate (38765MG0)
Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/1000/1200/1270/1271/1271319/1280/1271319.jpg cdn.cloud.grohe.com/dimdraw/1000/1200/1270/1271/1271323/1280/1271323.jpg
Documentation Certificateswww.bimstore.co/products/c9146653-276f-482c-8434-19eb857ab5bd/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/613353f4-57c7-4f3e-9dc3-c18f38dd0f18/document/installation-guide
Documentation Literaturewww.bimstore.co/products/613353f4-57c7-4f3e-9dc3-c18f38dd0f18/document/product-literature
Documentation Maintenancewww.bimstore.co/products/613353f4-57c7-4f3e-9dc3-c18f38dd0f18/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/613353f4-57c7-4f3e-9dc3-c18f38dd0f18/document/technical-data-sheet
Duration UnitYears
EcojoyNo
EF000007Other
EF000008156
EF00004011
EF000139Coated
EF001438197
EF002147Two button
EF002169Plastic
EF002671Other
EF006331false
EF006949Pneumatic
EF010109false
EF017078TRUE
EF017413TRUE
EF020827true
EF020828true
EF023686not applicable
EF023751true
EF023752true
EF024897Satin-gloss
EF025109Other
Expected Life0
Featuresn/a
FinishSatin Graphite
Full Recyclability Of PlasticAll plastic components are fully recycable
Graden/a
GROHE Social Committmentgreen.grohe.com/social_engagement
GROHE Sustainabilitygreen.grohe.com
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.FLUSHING
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
Materialn/a
ModelNOVA COSMOPOLITAN Flush Plate (38765MG0)
Model Number38765MG0
Model ReferenceNOVA COSMOPOLITAN Flush Plate (38765MG0)
NBS DescriptionFlush control devices
NBS Noten/a
NBS Object NameGrohe - Flush control devices
NBS Office Master Tagn/a
NBS Reference90-15-35/470
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
PQ Diagram Linkn/a
Product Descriptionfor dual flush or start & stop actuation for pneumatic discharge valve AV1 vertical and horizontal installation 156 x 197 mm material: ABS GROHE Long-Life finish GROHE Water Saving - Less water, perfect flow for combination with Rapid SL and Uniset with GD 2 cistern for use with Rapid SLX please order shaft 66 791 000 (sold separately)
Production Year2025
Product Number38765MG0
Product Page URLwww.grohe.co.uk/en_gb/-38765MG0.html
Product Short TextFlush plate
Product Typenot available
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsinfo-uk@grohe.com
Sustainability Awardgreen.grohe.com/awards
Sustainability Reportgreen.grohe.com/reporting
TPI Document Linkcdn.cloud.grohe.com/tpi/2000/2200/2210/2211/2211184/original/2211184.pdf cdn.cloud.grohe.com/tpi/2000/2000/2010/2013/2013141/original/2013141.pdf
Type CommentsNOVA COSMOPOLITAN Flush Plate (38765MG0)
Type NameNOVA COSMOPOLITAN Flush Plate (38765MG0)
URLwww.grohe.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
