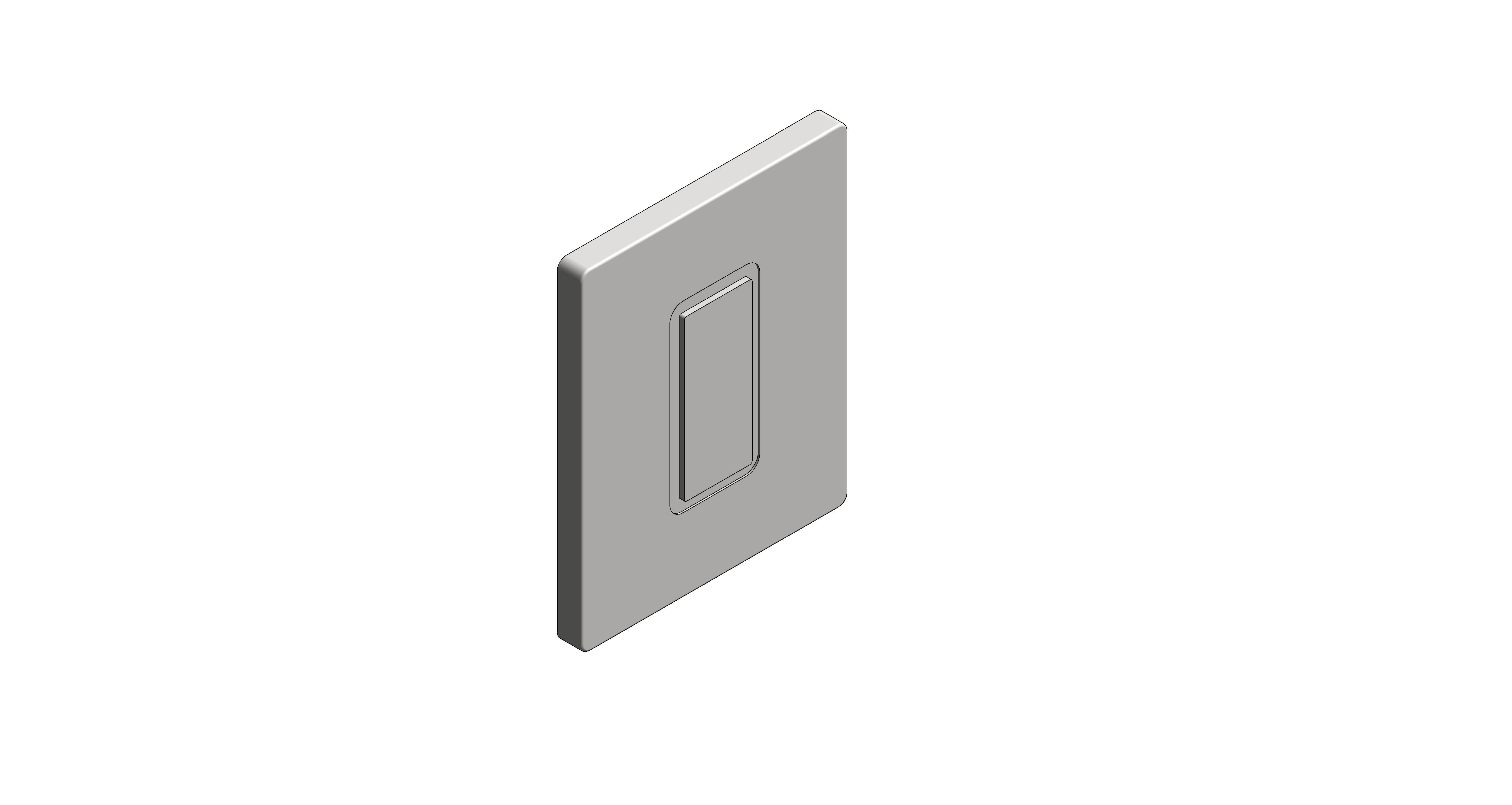

SKATE COSMOPOLITAN Actuator Plate (38784000)

Download Add to collection

Description

Product Number - 38784000

EAN - 4005176855535

Colour - Chrome

PRODUCT MAIN FEATURES

manual activation for urinal
compatible with
Rapido U or Rapido UMB
116 x 144 mm
mechanical functional cartridge
flow pressure min 0.5 bar
operating pressure max 6 bar
1.0 - 6.0 adjustable
GROHE Long-Life finish

Product Page - https://www.grohe.co.uk/en_gb/skate-cosmopolitan-actuation-plate-38784000.html

Object Data

1 Revision

Last Updated

23/01/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Object metadata

_AuthorSM 173
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/grohe-3878400/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
BIM Object NameGrohe_ActuationPlate_SkateCosmopolitan_38784000
Classification NameUniclass2015
Classification ValuePr_75_50_46_31
CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
Code Performancen/a
ColorGrohe_Chrome
Constituentsn/a
Cradle To Cradle Certificationn/a
Created Byinfo-uk@grohe.com
Created On2024-01-19T:09:00:00
Default Elevation0 mm
DescriptionActuator Plate
Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/1000/1400/1400/1409/1409035/1280/1409035.jpg cdn.cloud.grohe.com/dimdraw/1000/1500/1500/1508/1508002/1280/1508002.jpg
Documentation Certificateswww.bimstore.co/products/grohe-38784000/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/grohe-38784000/document/installation-guide
Documentation Literaturewww.bimstore.co/products/grohe-38784000/document/product-literature
Documentation Maintenancewww.bimstore.co/products/grohe-38784000/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/grohe-38784000/document/technical-data-sheet
Duration UnitYears
EcojoyNo
EF000007Chrome
EF000008116
EF000040144
EF002149One button
EF010109false
EF020827true
EF020828true
EF023751true
EF023752true
Expected Life0
Featuresn/a
FinishChrome
Full Recyclability Of PlasticAll plastic components are fully recycable
Graden/a
GROHE Social Committmentgreen.grohe.com/social_engagement
GROHE Sustainabilitygreen.grohe.com
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.FLUSHING
Installation Videon/a
KeynoteN13/110
ManufacturerGrohe
Manufacturer NameGrohe
Materialn/a
ModelActuator Plate
Model Number38784000
Model ReferenceActuator Plate
NBS DescriptionFlush control devices
NBS Noten/a
NBS Object NameGrohe - Flush Control Devices
NBS Office Master Tagn/a
NBS Reference90-15-35/470
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
PQ Diagram Linkn/a
Primary MaterialGrohe_Chrome
Product Descriptionmanual activation for urinal set for final installation for Rapido U or Rapido UMB 116 x 144 mm mechanical functional cartridge flow pressure min 0.5 bar operating pressure max 6 bar 1.0 - 6.0 l adjustable low noise (group II according to German noise specification) GROHE Long-Life finish
Production Year2023
Product Number38784000
Product Short TextManual Actuation
Product TypeActuation plate
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsinfo-uk@grohe.com
Sustainability Awardgreen.grohe.com/awards
Sustainability Reportgreen.grohe.com/reporting
TPI Document Linkn/a
Type CommentsActuator Plate
Type NameActuator Plate
URLwww.grohe.co.uk/en_gb/skate-cosmopolitan-actuation-plate-38784000.html
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
