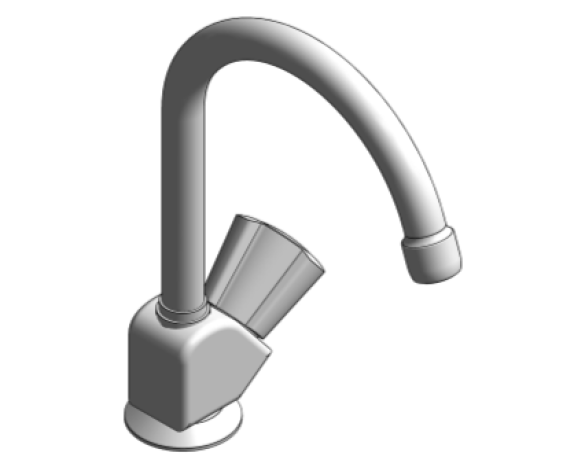

Grohe Costa L Pillar Tap - 20393001

Description

Costa LPillar tap 1/2"metal handle heat-insulated screwable marking: blue Longlife-headpart swivel tubular spout with mousseur union nut 1/2" with 10.5 mm drillingGROHE StarLight® chrome finish

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

Object Data

1 Revision

Last Updated

02/09/2015

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_BIMspec_GUID0
_created byConnor Laing
_created dateApril 2015
_current revision2
_distributed bywww.bimstore.co.uk
ADA CompliantYes
Assembly CodeC1030220
Asset TypeFixed
Barcode0
Classification NameUniclass2015
Classification ValuePr_40_20_87_98
Cold Water Connection Diameter10 mm
Cold Water Radius5 mm
ColorChrome
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnApril 2015
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionWith its timeless design and classically arched spout Costa is the perfect balance of quality, design and technology. First launched in the 1970s, the Costa collection has been refined and updated several times - ensuring it is always current and on-trend.
Documentation Certificatescdn08.grohe.com/lib/1/tpi/1405861.pdf
Documentation Installation Guidecdn08.grohe.com/lib/1/tpi/1405861.pdf
Documentation LiteratureNo
Documentation Technicalcdn08.grohe.com/lib/1/tpi/1405861.pdf
Duration UnitYears
EcojoyNo
Expected Life0
FinishChrome
Flow Pressuremin 0.5 bar/recommended 1 - 5 bar
Flow Rateapprox 10 L/min
Height0 mm
Hot Water Connection Diameter10 mm
Hot Water Radius5 mm
HW ConnectionYes
HWFU4.5
Industry StandardsN/A
KeynoteN13
Length0 mm
Low Emitting MaterialNo
Maintenance Informationcdn08.grohe.com/lib/1/tpi/1769293.pdf
ManufacturerGrohe AG
MaterialGrohe-Chrome
ModelCosta L 20393001
Model NumberCosta L 20393001
NameCosta L 20393001
NBS Object NameWater supply fittings for wash basins and troughs
NBS Reference45-35-70/371
Operating Pressuremax 10 bar
Percentage of Recycled Content0
Product Documentation Linkcdn08.grohe.com/lib/1/tpi/1405861.pdf
Product Page URLcdn08.grohe.com/lib/1/tpi/1405861.pdf
Serial Number0
Spare Parts Listcdn08.grohe.com/lib/1/tpi/1405861.pdf
Tag Number0
Temp - Hot Water Supplymax 80°C
Temp - Hot Water Supply (Recommended)60°C
Test Pressure16 bar
Type CommentsKitchen mixer high spout
Type NameCosta L 20393001
URLwww.grohe.com
Vent ConnectionNo
Warranty InfomationN/A
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
Width0 mm
