Grohe Euphoria 350 x 230 - 114335EN00
by GROHE
Description
Product Number - 114335EN00
EAN - 4067393107491
Colour - Nickel - Brushed Nickel
PRODUCT MAIN FEATURES
Product Page - https://www.grohe.com/en-KH/product/euphoria-350-x-230-head-shower-1-spray-with-dripstop-nickel-114335EN00
Object Data
1 Revision
Last Updated
06/10/2026
Available Software
BS1192:4
Compliant
BSB
Compliant
EPD
Not Available
Object metadata
- _AuthorAG 213
- _Authorized Bybimstore
- _Bim Spec Guid0
- _BS Bible Version17
- _Created Bywww.bimstore.co/
- _Current Revision1
- _Distributed Bywww.bimstore.co/
- _Object User Guidewww.bimstore.co/products/08d71b88-2103-4668-b3e1-c7db12b51139/document/object-user-guide
- Accessibility Performancen/a
- Assembly CodeD2010
- Asset TypeFixed
- BIM Object NameGrohe_PlumbingFixture_Euphoria350x230_ShowerHead_114335EN00
- Classification NameUniclass2015
- Classification ValuePr_40_20_87_76
- CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
- Code Performancen/a
- ColorOther
- Constituentsn/a
- Cradle To Cradle Certificationn/a
- Created Byinfo-uk@grohe.com
- Created On2026-09-15T09:00:00
- CW ConnectionNo
- Default Elevation0.0 mm
- DescriptionEUPHORIA 350x230 Shower Head

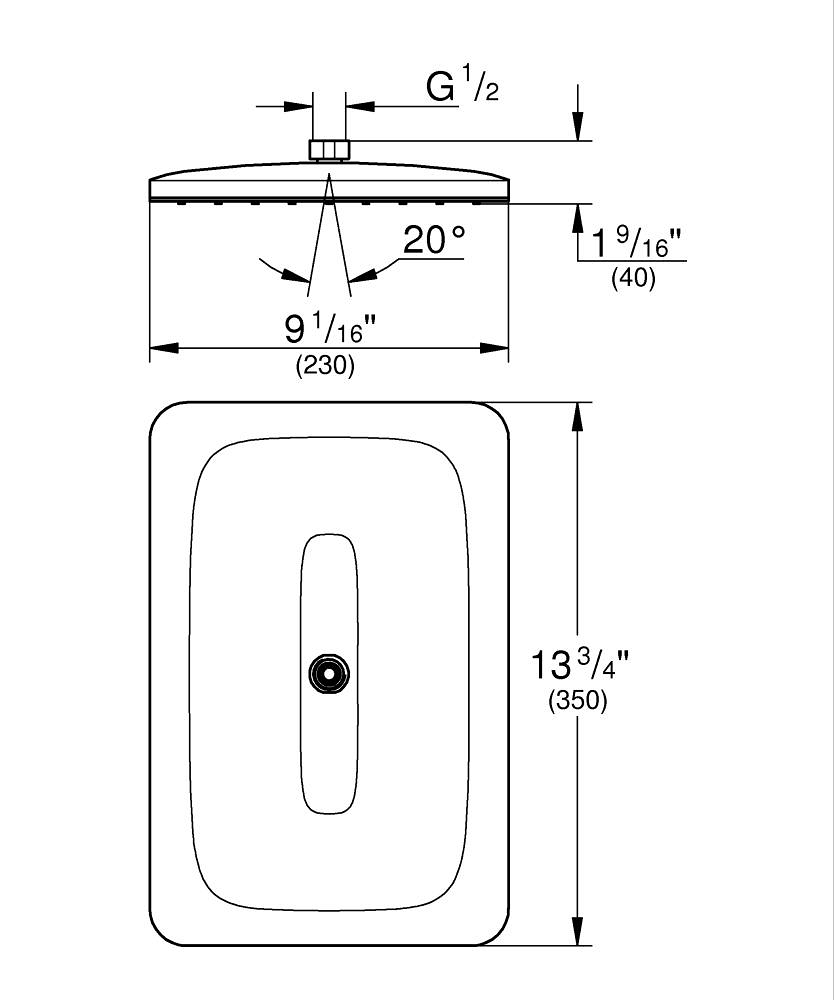

- Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/2000/2200/2250/2258/2258807/1280/2258807.jpg
- Documentation Certificateswww.bimstore.co/products/08d71b88-2103-4668-b3e1-c7db12b51139/document/product-certificates
- Documentation Installation Guidewww.bimstore.co/products/08d71b88-2103-4668-b3e1-c7db12b51139/document/installation-guide
- Documentation Literaturewww.bimstore.co/products/08d71b88-2103-4668-b3e1-c7db12b51139/document/product-literature
- Documentation Maintenancewww.bimstore.co/products/08d71b88-2103-4668-b3e1-c7db12b51139/document/maintenance-information
- Documentation Technicalwww.bimstore.co/products/08d71b88-2103-4668-b3e1-c7db12b51139/document/technical-data-sheet
- Duration UnitYears
- EcojoyNo
- EF000008350
- EF00004040
- EF000049230.0 mm
- EF000051Rectangular
- EF000443Internal thread
- EF000653true
- EF000664true
- EF002169Plastic
- EF002671Other
- EF006114false
- EF0127536.40
- EF015301false
- EF0153090.0 mm
- EF01789210
- EF0210401
- EF021180TRUE
- EF021480false
- EF022042Z
- EF022221false
- EF022222false
- EF022223false
- EF022224false
- EF022726Internal thread
- EF0234521/2 inch
- EF023686not applicable
- Expected Life0
- Export Type to IFC AsIfcPipeFitting
- Featuresn/a
- Finishn/a
- Full Recyclability Of PlasticAll plastic components are fully recyclable
- Graden/a
- GROHE Social Committmentgreen.grohe.com/social_engagement
- GROHE Sustainabilitygreen.grohe.com
- HW ConnectionNo
- Ifc Export AsIfcPipeFitting
- Ifc Export TypeIfcPipeFittingType
- KeynoteN13
- ManufacturerGrohe
- Manufacturer NameGrohe
- Materialn/a
- ModelEUPHORIA 350x230 Shower Head
- Model Number114335EN00
- Model ReferenceEUPHORIA 350x230 Shower Head
- NBS DescriptionShower heads
- NBS Noten/a
- NBS Object NameGrohe - Shower heads
- NBS Office Master Tagn/a
- NBS Reference45-35-70/333
- Nominal Depth0.0 mm
- Nominal Height0.0 mm
- Nominal Length0.0 mm
- PQ Diagram Linkcdn.cloud.grohe.com/PQCharts/lores/1/114/original/114335EN00-pqchart-en_GB.svg
- Primary MaterialGrohe_BrushedNickel
- Product Descriptionspray pattern: Rain AquaCalibrator maximum flow rate (at 3 bar): 6.4 l/min 350 x 230 mm metal shower face with ball joint, rotation angle ± 10° connection thread 1/2" GROHE DreamSpray - perfect spray pattern GROHE SpeedClean - effortless limescale removal Inner WaterGuide - inner insulation for surface protection GROHE LongLife finish suitable for instantaneous heater min. recommended pressure 1.0 bar professional exclusive
- Production Year2026
- Product Number1142970000
- Product Page URLwww.grohe.co.uk/en_gb/-114335EN00.html
- Product Short TextHead shower 1 spray
- Product TypeShower Head
- Referenced Standardn/a
- Replacement Costn/a
- Shapen/a
- Sizen/a
- Spare Partsinfo-uk@grohe.com
- Sustainability Awardgreen.grohe.com/awards
- Sustainability Reportgreen.grohe.com/reporting
- TPI Document Linkn/a
- Type CommentsEUPHORIA 350x230 Shower Head
- Type IFC Predefined TypeIfcPipeFittingType
- Type NameEUPHORIA 350x230 Shower Head
- URLwww.grohe.co.uk/
- Vent ConnectionNo
- Warranty Descriptionn/a
- Warranty Duration Labor0
- Warranty Duration Parts0
- Warranty Duration UnitYears
- Warranty Guarantor Laborinfo-uk@grohe.com
- Warranty Guarantor Partsinfo-uk@grohe.com
- Waste ConnectionNo
We have more variations, please download the object to get them all.
Sustainability & Environmental Data
Not available.
Environmental Product Declarations
There are no EPDs.
