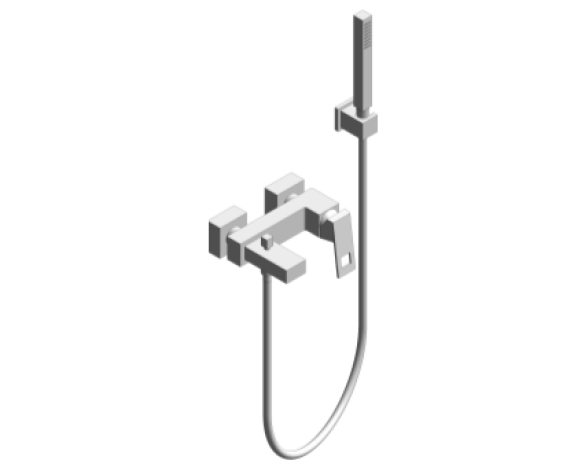

Grohe Eurocube Single-Lever Bath Shower Mixer - 23141000

by GROHE

Download Add to collection

Description

EurocubeSingle-lever bath/shower mixer 1/2"wall mountedmetal leverGROHE SilkMove® 46 mm ceramic cartridgeGROHE StarLight® chrome finishGROHE DreamSpray® perfect spray pattern adjustable flow rate limiterautomatic diverter: bath/showerintegrated non-return valve in the shower outlet 1/2"mousseuroptional temperature limiter ref. no. 46 375 000covered S-unionswith shower setwall shower holder (27 693 000)Hand shower (27 698 000)shower hose 1500 mm (28 151)protected against backflowmin. recommended pressure 1.0 bar

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

Object Data

1 Revision

Last Updated

09/09/2015

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_authorized byConnor Laing
_BIMspec_GUID0
_created bybimstore
_current revision2
_distributed bywww.bimstore.co.uk
ADA CompliantYes
Assembly CodeC1030220
Asset TypeFixed
Classification NameUniclass2015
Classification ValuePr_40_20_87_76
Cold Water Conection Diamiter10 mm
Cold Water Radius5 mm
ColorChrome
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnJuly 13 - Revised June 15
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionEurocube Single-lever bath/shower mixer 1/2
Documentation Certificateswww.grohe.com/ie/5535/bathroom/tap-mixer/eurocube/product-details/?product=23141-G318&color=000&material=23141000
Documentation Installation Guidewww.grohe.com/ie/5535/bathroom/tap-mixer/eurocube/product-details/?product=23141-G318&color=000&material=23141000
Documentation Literaturecdn08.grohe.com/lib/1/tpi/1868884.pdf
Documentation Maintenancecdn08.grohe.com/lib/1/tpi/1734224.pdf
Documentation Technicalcdn08.grohe.com/lib/1/tpi/1620681.pdf
Duration UnitYears
EcojoyNo
Expected Life0
Faucet MaterialGrohe-Chrome
FinishChrome
Flow Rate21.5L/min (Bath) 18L/min (Shower)
Height482 mm
Hot Water Conection Diamiter10 mm
Hot Water Radius5 mm
HW ConnectionYes
HWFU4.5
Industry StandardsN/A
KeynoteN13
Length184 mm
Low Emitting MaterialYes
ManufacturerGrohe AG
MaterialChrome
Mixing LeaverYes
ModelEurocube Single Lever Bath/Shower Mixer - 23141000
Model Number23141000
NameEurocube Single Lever Bath/Shower Mixer - 23141000
NBS DescriptionShower fittings package
NBS Object NameShower fittings package
NBS Reference45-35-70/330
No of Holes1
Operating Pressure10 bar
Percentage of Recycled Content0
Product Documentation Linkcdn08.grohe.com/lib/1/tpi/1620681.pdf
Product Page URLwww.grohe.com/ie/5535/bathroom/tap-mixer/eurocube/product-details/?product=23141-G318&color=000&material=23141000
Production Year2015
Pull out or Pull DownPull Out
Spare Parts Listwww.grohe.com/ie/5535/bathroom/tap-mixer/eurocube/product-details/?product=23141-G318&color=000&material=23141000&%7E%5Bajax%5D=2229
Type CommentsEurocube Single-lever bath/shower mixer 1/2
Type NameEurocube Single-lever bath/shower mixer 1/2
URLwww.grohe.com
Valve Spacing34 mm
Vent ConnectionNo
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
Width95 mm
