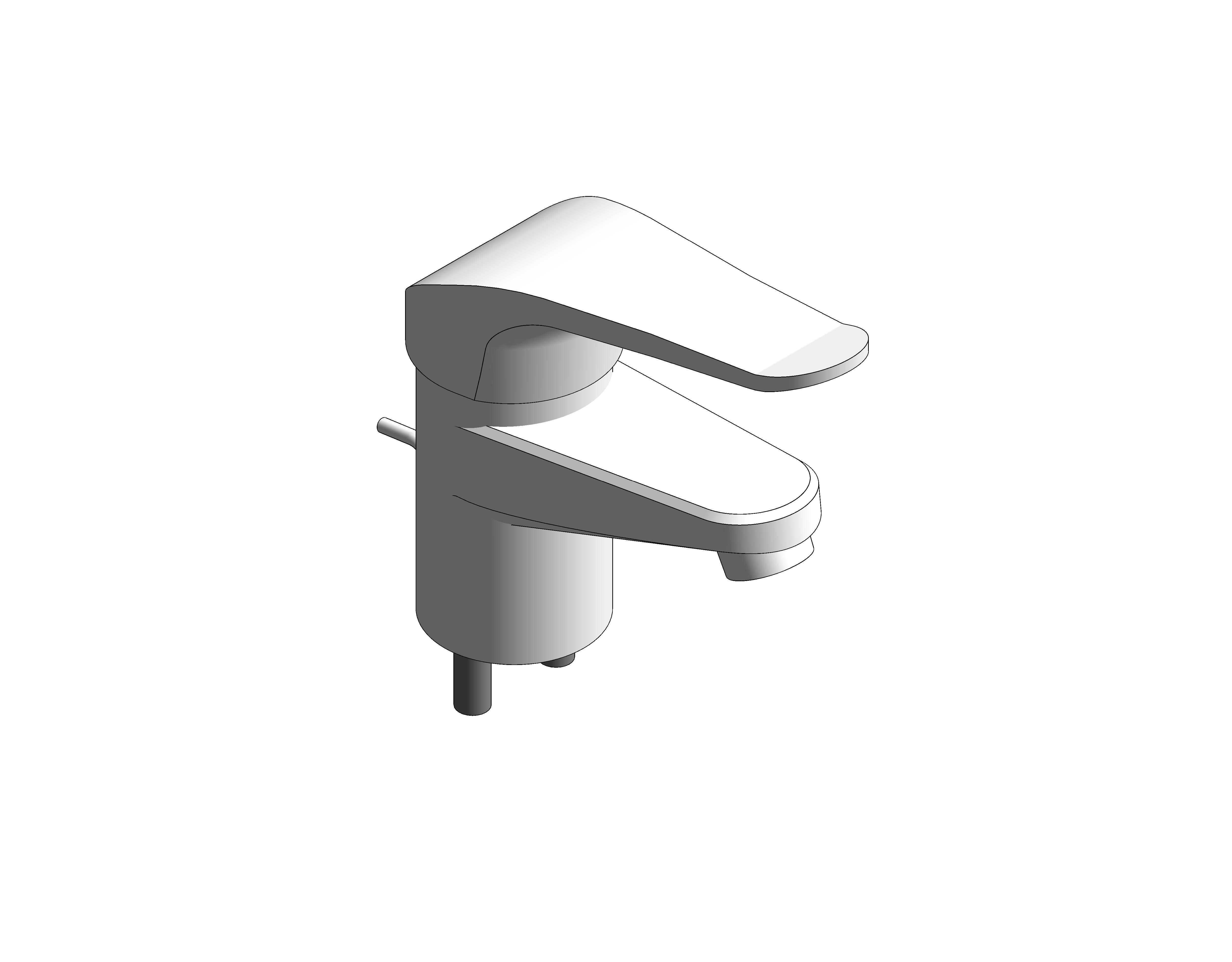

EUROECO SPECIAL Basin mixer 1/2″ (32763000)

Download Add to collection

Description

monobloc installation
pop-up waste set 1 1/4"
GROHE StarLight chrome finish
GROHE SilkMove 35 mm ceramic cartridge
GROHE EcoJoy technology for less water and perfect flow
adjustable flow rate limiter
adjustable temperature limiter
adjustable minimum flow rate 2.5 l/min
laminar flow straightener 9 l/min
metal lever
lever length 120 mm
rapid installation system
flexible connection hoses

Object Data

1 Revision

Last Updated

13/05/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/grohe-euroeco-special-basin-mixer-1-2-32763000/document/object-user-guide
Accessibility Performancen/a
ADA CompliantNo
Assembly CodeD2020300
Asset Typen/a
BIM Object NameGrohe_PlumbingFixture_Euroecospecial_BasinMixer_32763000
Classification NameUniclass 2015
Classification ValuePr_40_20_87_98
Code Performancen/a
Cold Water Connection Diameter10 mm
ColorChrome
Constituentsn/a
Contact Groheinfo-uk@grohe.com
Created Byinfo-uk@grohe.com
Created On2020-11-01T09:00:00
CWFU4.5
Default Elevation0 mm
Descriptionmonobloc installation pop-up waste set 1 1/4" GROHE StarLight chrome finish GROHE SilkMove 35 mm ceramic cartridge GROHE EcoJoy technology for less water and perfect flow adjustable flow rate limiter adjustable temperature limiter adjustable minimum flow rate 2.5 l/min laminar flow straightener 9 l/min metal lever lever length 120 mm rapid installation system flexible connection hoses
Documentation Certificateswww.bimstore.co/products/grohe-euroeco-special-basin-mixer-1-2-32763000/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/grohe-euroeco-special-basin-mixer-1-2-32763000/document/installation-guide
Documentation Literaturewww.bimstore.co/products/grohe-euroeco-special-basin-mixer-1-2-32763000/document/product-literature
Documentation Maintenancewww.bimstore.co/products/grohe-euroeco-special-basin-mixer-1-2-32763000/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/grohe-euroeco-special-basin-mixer-1-2-32763000/document/technical-data-sheet
Duration UnitYears
EcojoyNo
Expected Life0
Featuresmonobloc installation pop-up waste set 1 1/4" GROHE StarLight chrome finish GROHE SilkMove 35 mm ceramic cartridge GROHE EcoJoy technology for less water and perfect flow adjustable flow rate limiter adjustable temperature limiter adjustable minimum flow rate 2.5 l/min laminar flow straightener 9 l/min metal lever lever length 120 mm rapid installation system flexible connection hoses
Finishn/a
Graden/a
Hot Water Connection Diameter10 mm
HWFU4.5
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
Industry Standardsn/a
KeynoteN13
LEED Creditn/a
Low Emitting MaterialNo
ManufacturerGrohe
Manufacturer NameGrohe
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
Materialn/a
ModelEuroeco special - Basin mixer 1/2″
Model Number32763000
Model ReferenceEuroeco special - Basin mixer 1/2″
NBS DescriptionWater supply fittings for wash basins and troughs
NBS Object NameGrohe - Water supply fittings for wash basins and troughs
NBS Office Master Tagn/a
NBS Reference45-35-70/371
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Percentage Of Recycled Contentn/a
Primary MaterialSteel, Chrome Plated
Product Documentation Linkwww.grohe.co.uk/en_gb/-32763000.html
Production Year2020
Product Page URLwww.grohe.co.uk/en_gb/-32763000.html
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Type Comments32763000
Type NameEuroeco special - Basin mixer 1/2″
URLwww.grohe.co.uk/en_gb/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
