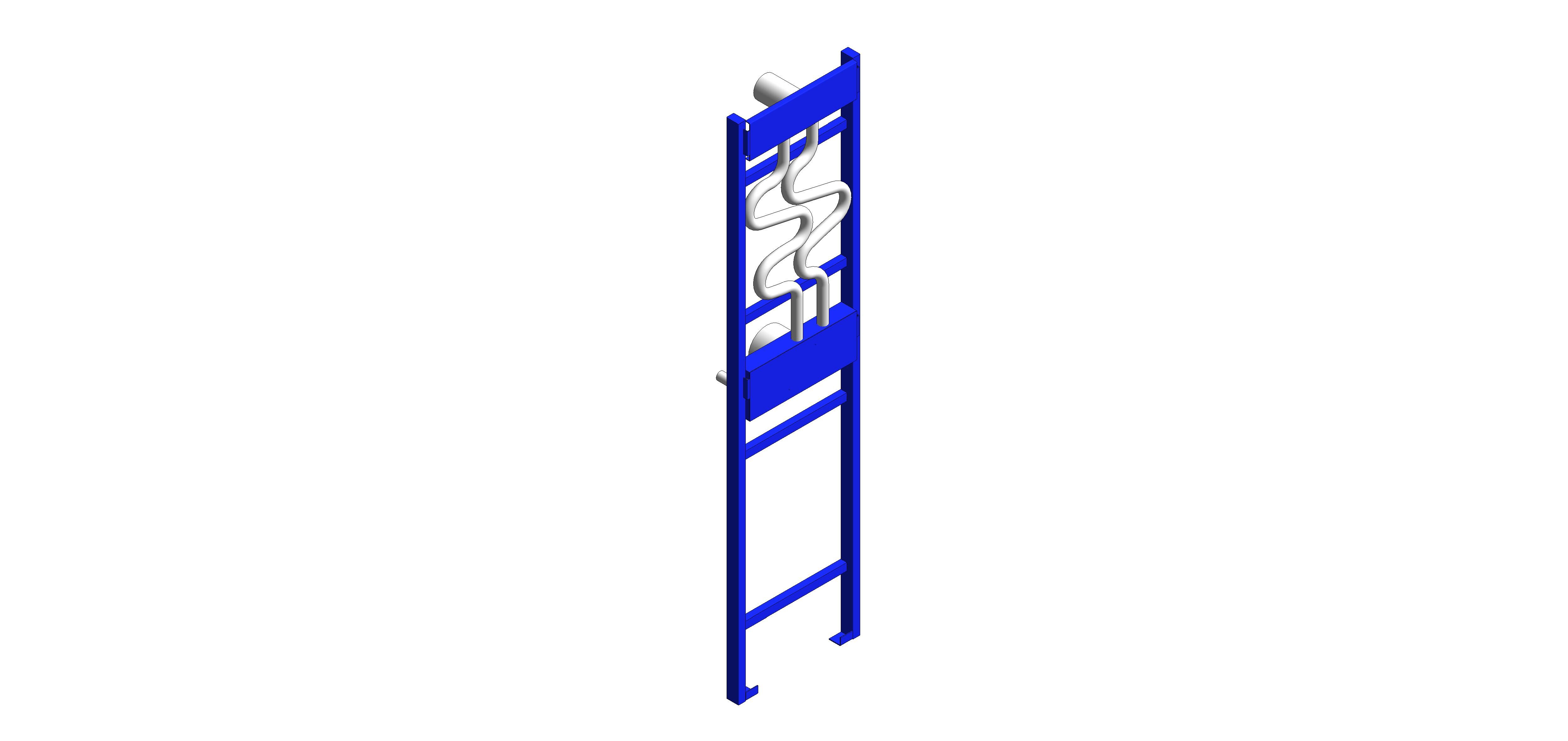

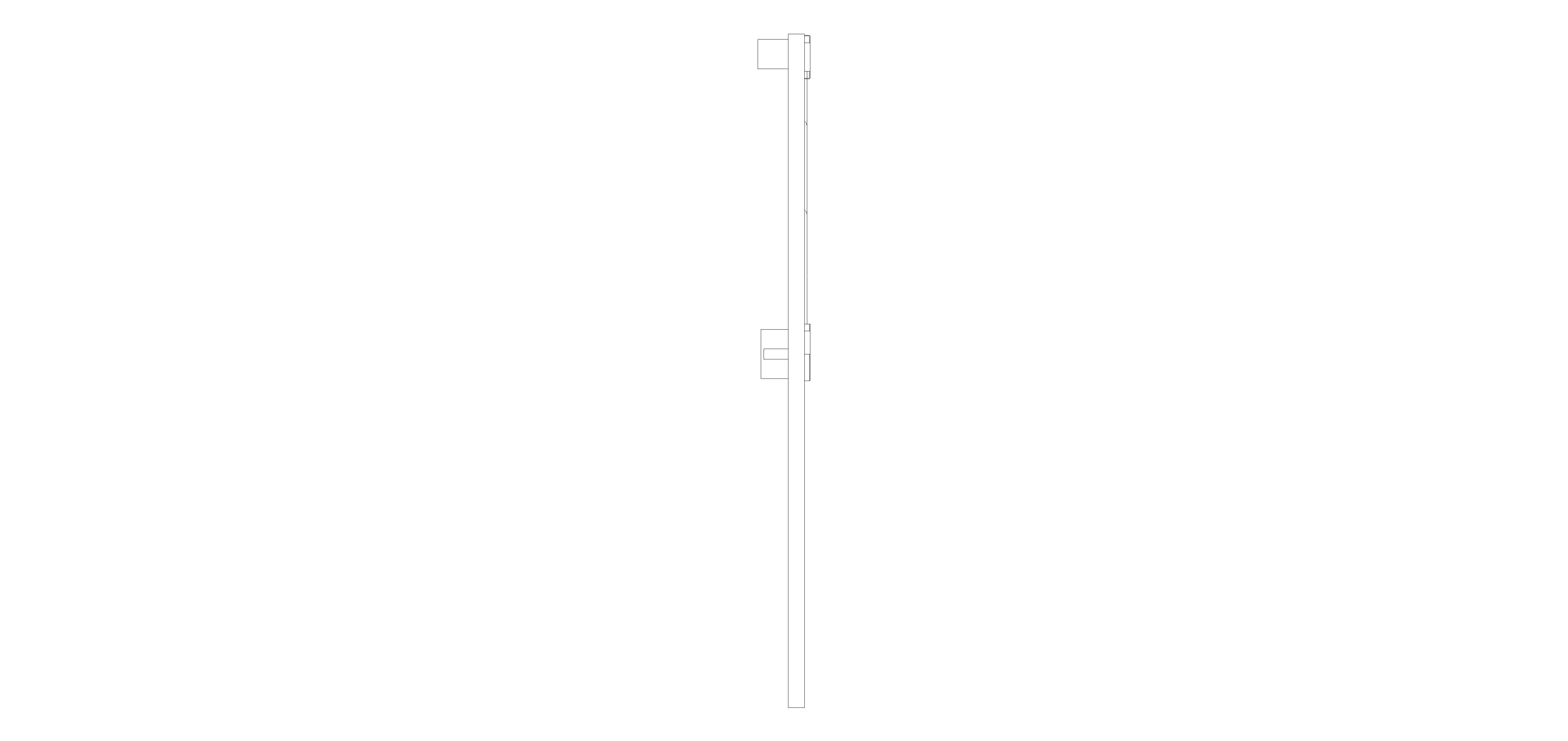

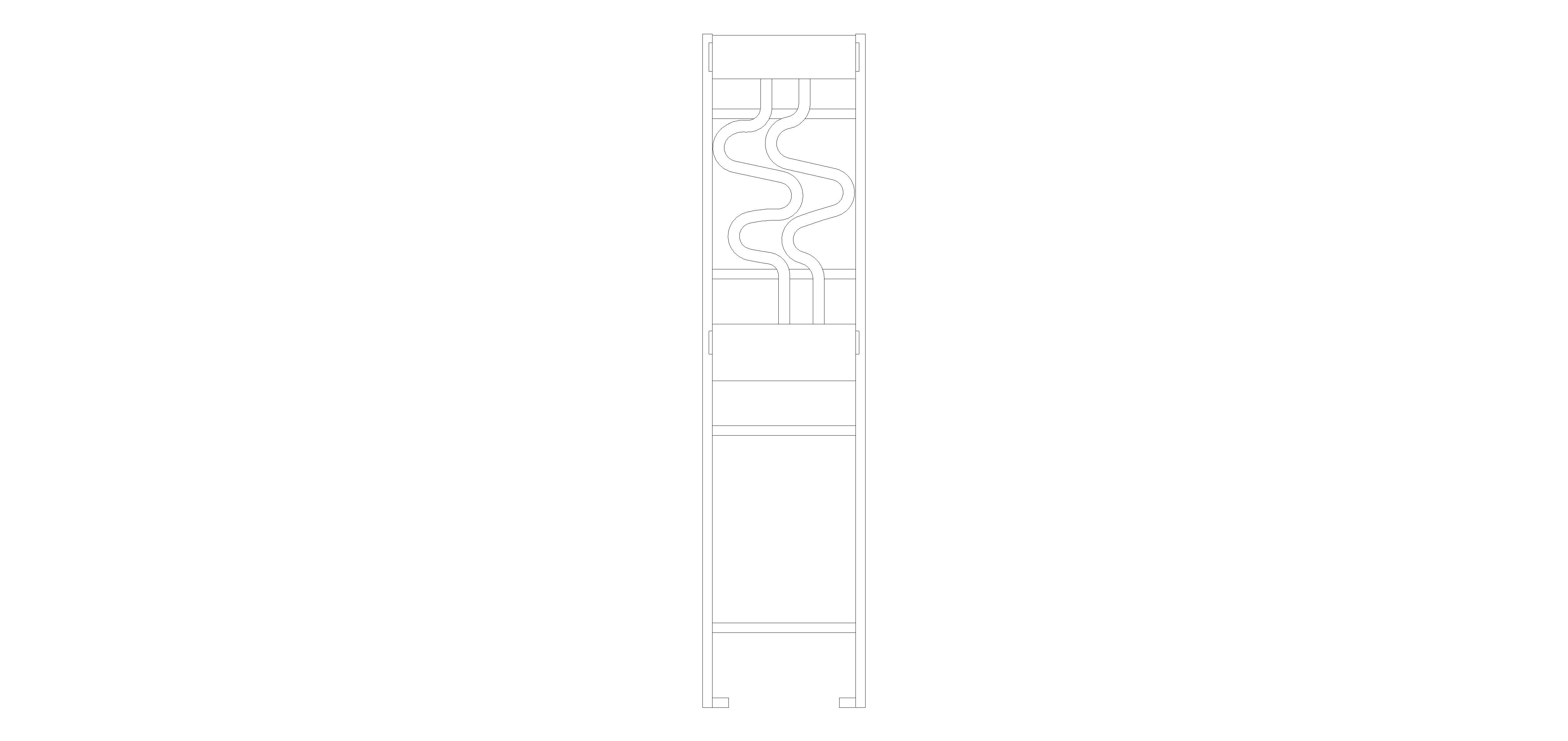

Grohe Shower System (1057629990)
by GROHE
Description
- For shower installations with one hand shower and a duo spray head shower
- Pre-mounted rough-in set GROHE Rapido SmartBox (35 604)
- Pre-mounted rough-in set 9.5 l/min for head shower (26 484)
- Pre-mounted wall outlet for hand shower
- Pre-mounted and insulated mixed water pipes
- For on-the-wall installations or dry-cladding
- Powder coated steel frame, self-supporting
- Completely pre-assembled
- Depth adjustable
- 2 inlets below, 1/2""
- Min. installation depth (from rough wall to end finish) 77-107 mm
- Min. installation depth (from rough wall to frame front) 67 mm
- Head shower outlet height adjustable by 180 mm
- Sealing fleeces
- Leak test done ex factory
- Suitable for concealed 3-function trim sets in combination with GROHE Rapido SmartBox
- Suitable for GROHE shower outlet elbows with male connection threads, 1/2""
- Suitable for Rainshower SmartActive 310 2-spray head shower with 430 mm shower arm
- Perfect fit for Grohtherm concealed shower systems 103 997 0000 and 103 998 0000
- For on-the-wall installation please order wall brackets 103 999 9990 (sold separately)
- Professional exclusive
Object Data
1 Revision
Last Updated
11/06/2024
Available Software
BS1192:4
Compliant
BSB
Compliant
EPD
Not Available
Sustainability & Environmental Data
Not available.
Environmental Product Declarations
There are no EPDs.
