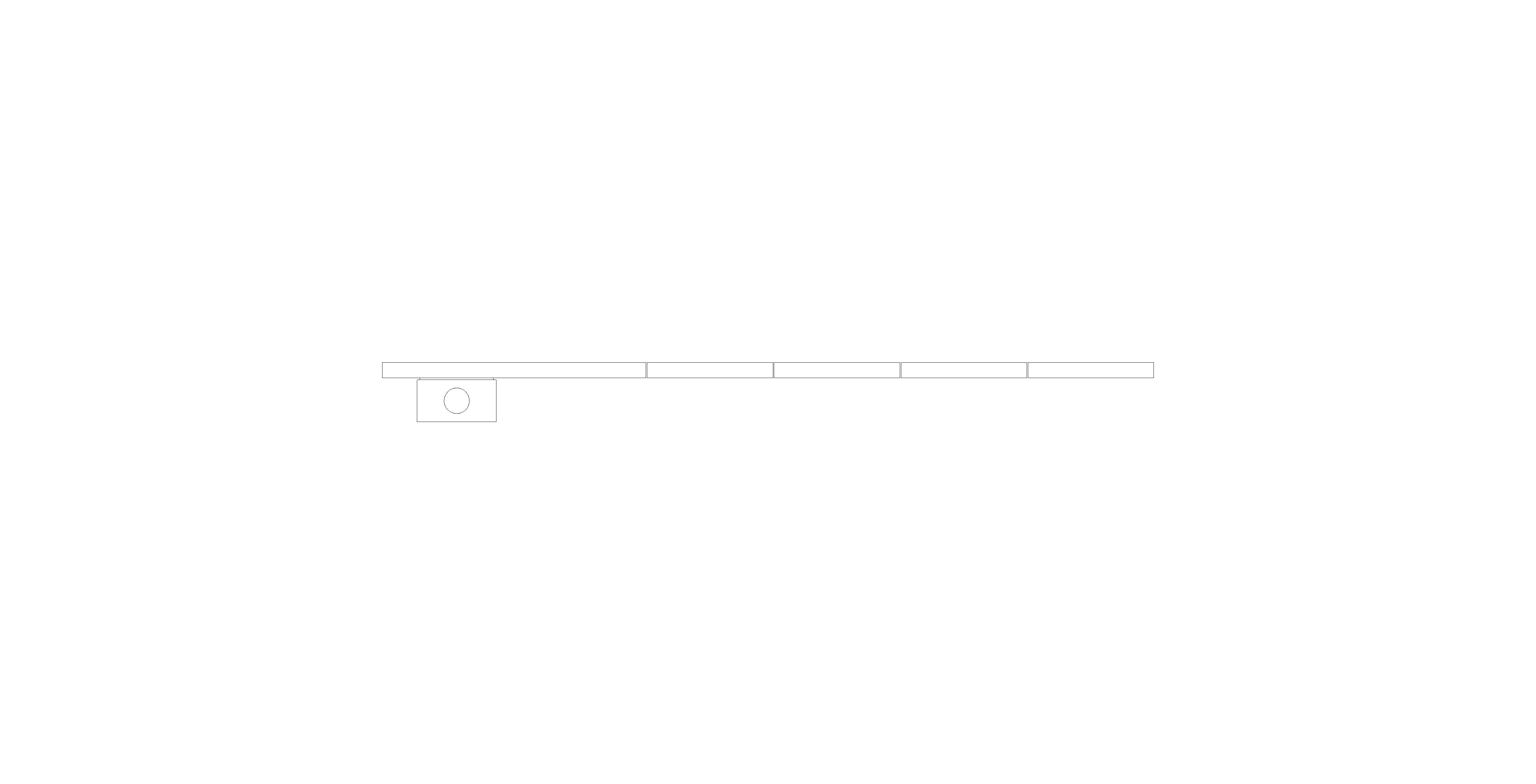

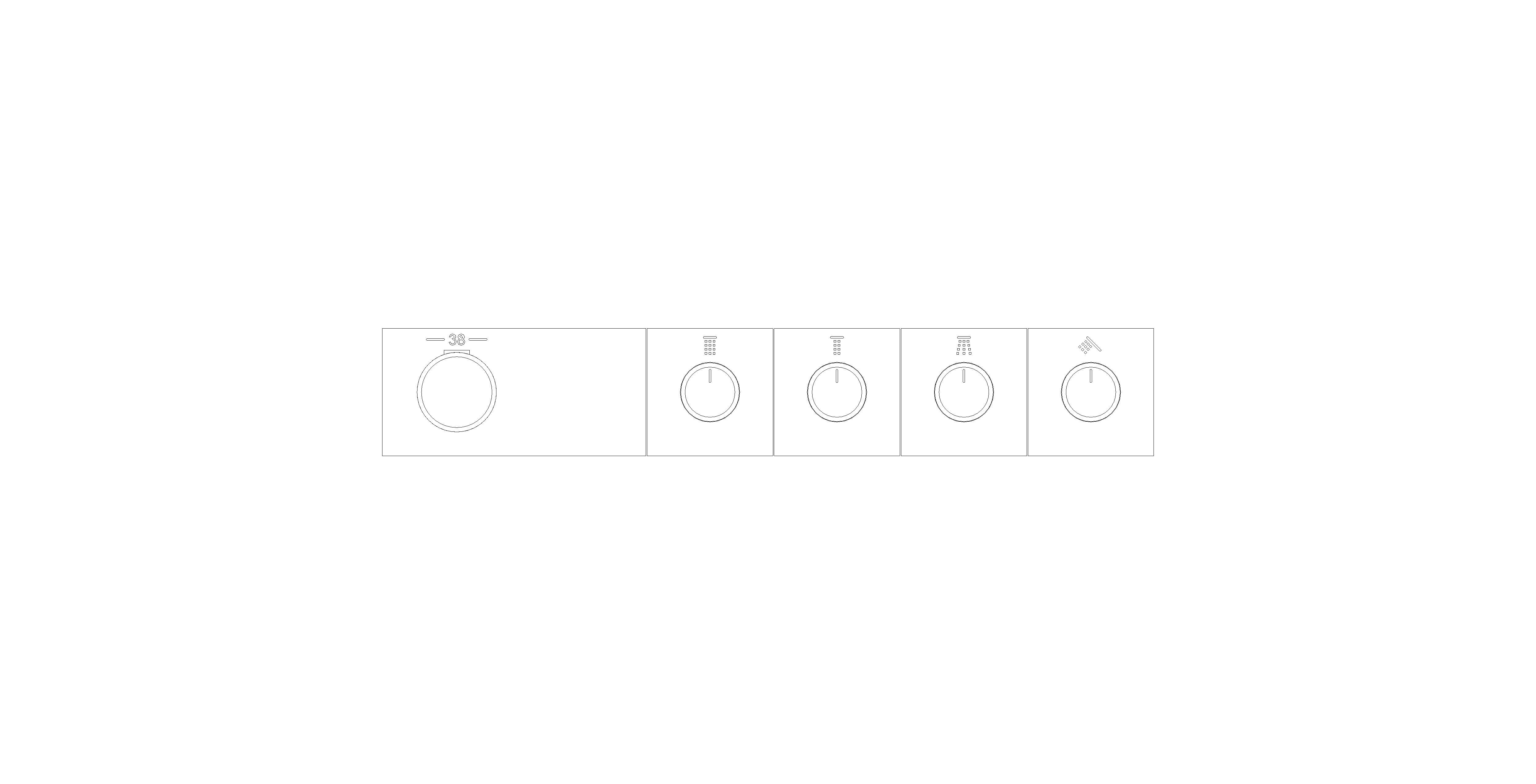

GROHTHERM AQUA TILES Thermostat (1068670000)

by GROHE

Download Add to collection

Description

Product Number - 1068670000

EAN - 4067393073086

Colour - Chrome

PRODUCT MAIN FEATURES

Product Page - TBC

Object Data

1 Revision

Last Updated

19/02/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorSM 206
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/91654097-af10-4c7e-b465-d1a8099a4348/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010700
Asset TypeFixed
BIM Object NameGrohe_Thermostat_GROTHERM AQUA TILES_1068670000
Classification NameUniclass2015
Classification ValuePr_40_20_87_78
CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
Code Performancen/a
ColorChrome
Constituentsn/a
Cradle To Cradle CertificationN/A
Created Byinfo-uk@grohe.com
Created On2026-01-20T:09:00:00
CW ConnectionNo
CWFU4.5
Default Elevation1100 mm
Descriptionset for final installation for Grohtherm Aqua Tiles concealed installation box 106 881 0000 GROHE SmartControl with recessed metal buttons, push for ON-OFF, turn for volume adjustment from GROHE EcoJoy to full flow includes 5 exchangeable metal plates with icons to customize push buttons: head shower 1, head shower 2, head shower 3, hand shower, spout GROHE ProGrip Metal with knurl structure GROHE LongLife finish GROHE SafeStop safety button at 38°C GROHE SafeStop Plus optional temperature limiter at 43°C included multiple outlets can be run simultaneously without rough-in set (sold separately)
Dimensions Document Linkn/a
Documentation Certificateswww.bimstore.co/products/91654097-af10-4c7e-b465-d1a8099a4348/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/91654097-af10-4c7e-b465-d1a8099a4348/document/installation-guide
Documentation Literaturewww.bimstore.co/products/91654097-af10-4c7e-b465-d1a8099a4348/document/product-literature
Documentation Maintenancewww.bimstore.co/products/91654097-af10-4c7e-b465-d1a8099a4348/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/91654097-af10-4c7e-b465-d1a8099a4348/document/technical-data-sheet
Duration UnitYears
EcojoyNo
EF000008486
EF000010Finishing section
EF001469not relevant
EF002149true
EF005474not applicable
EF011775not applicable
EF014578true
EF014591true
EF016731Group I,<= 20 dB(A)
EF020103false
EF020105Yes
EF020774true
EF020776true
EF020777false
EF020781Cartouche, ball
EF020782Other
EF020784Polished
EF0207864
EF020788false
EF020790not applicable
EF020963true
EF021855false
EF023686not applicable
EF023687true
EF023957true
EF024921not applicable
EFDE0022None
EFSE0002true
Expected Life0
Featuresset for final installation for Grohtherm Aqua Tiles concealed installation box 106 881 0000 GROHE SmartControl with recessed metal buttons, push for ON-OFF, turn for volume adjustment from GROHE EcoJoy to full flow includes 5 exchangeable metal plates with icons to customize push buttons: head shower 1, head shower 2, head shower 3, hand shower, spout GROHE ProGrip Metal with knurl structure GROHE LongLife finish GROHE SafeStop safety button at 38°C GROHE SafeStop Plus optional temperature limiter at 43°C included multiple outlets can be run simultaneously without rough-in set (sold separately)
FinishChrome
Full Recyclability Of PlasticAll plastic components are fully recycable
Graden/a
GROHE Social Committmentgreen.grohe.com/social_engagement
GROHE Sustainabilitygreen.grohe.com/awards
HW ConnectionNo
HWFU4.5
Ifc Export AsIfcFlowTerminalType
Ifc Export TypeIfcSanitaryTerminalTypeEnum.SHOWER
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
Materialn/a
Model1068670000
Model Number1068670000
Model ReferenceGROTHERM AQUA TILES Thermostat (1068670000)
NBS DescriptionShower fittings package
NBS Noten/a
NBS Object NameGrohe - Shower fittings package
NBS Office Master Tagn/a
NBS Reference45-35-70/330
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
PQ Diagram Linkcdn.cloud.grohe.com/PQCharts/lores/1/107/original/1068670000-pqchart-en_GB.svg
Primary MaterialGrohe_Chrome
Product Descriptionset for final installation for Grohtherm Aqua Tiles concealed installation box 106 881 0000 GROHE SmartControl with recessed metal buttons, push for ON-OFF, turn for volume adjustment from GROHE EcoJoy to full flow includes 5 exchangeable metal plates with icons to customize push buttons: head shower 1, head shower 2, head shower 3, hand shower, spout GROHE ProGrip Metal with knurl structure GROHE LongLife finish GROHE SafeStop safety button at 38°C GROHE SafeStop Plus optional temperature limiter at 43°C included multiple outlets can be run simultaneously without rough-in set (sold separately)
Product Documentation Linkwww.grohe.co.uk/en_gb/-1068670000.html
Production Year2026
Product Short TextThermostat for concealed installation with 4 valves
Product TypeThermostat
Referenced Standardn/a
Replacement Costn/a
Secondary MaterialGrohe_Anthracite
Shapen/a
Sizen/a
Spare Partsinfo-uk@grohe.com
Sustainability Awardgreen.grohe.com
Sustainability Reportgreen.grohe.com/reporting
TPI Document Linkcdn.cloud.grohe.com/tpi/2000/2200/2260/2265/2265382/original/2265382.pdf cdn.cloud.grohe.com/tpi/2000/2200/2230/2230/2230060/original/2230060.pdf cdn.cloud.grohe.com/tpi/2000/2200/2220/2226/2226057/original/2226057.pdf
Type CommentsGROTHERM AQUA TILES Thermostat (1068670000)
Type NameGROTHERM AQUA TILES Thermostat (1068670000)
URLwww.grohe.co.uk/
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo
WFU0

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
