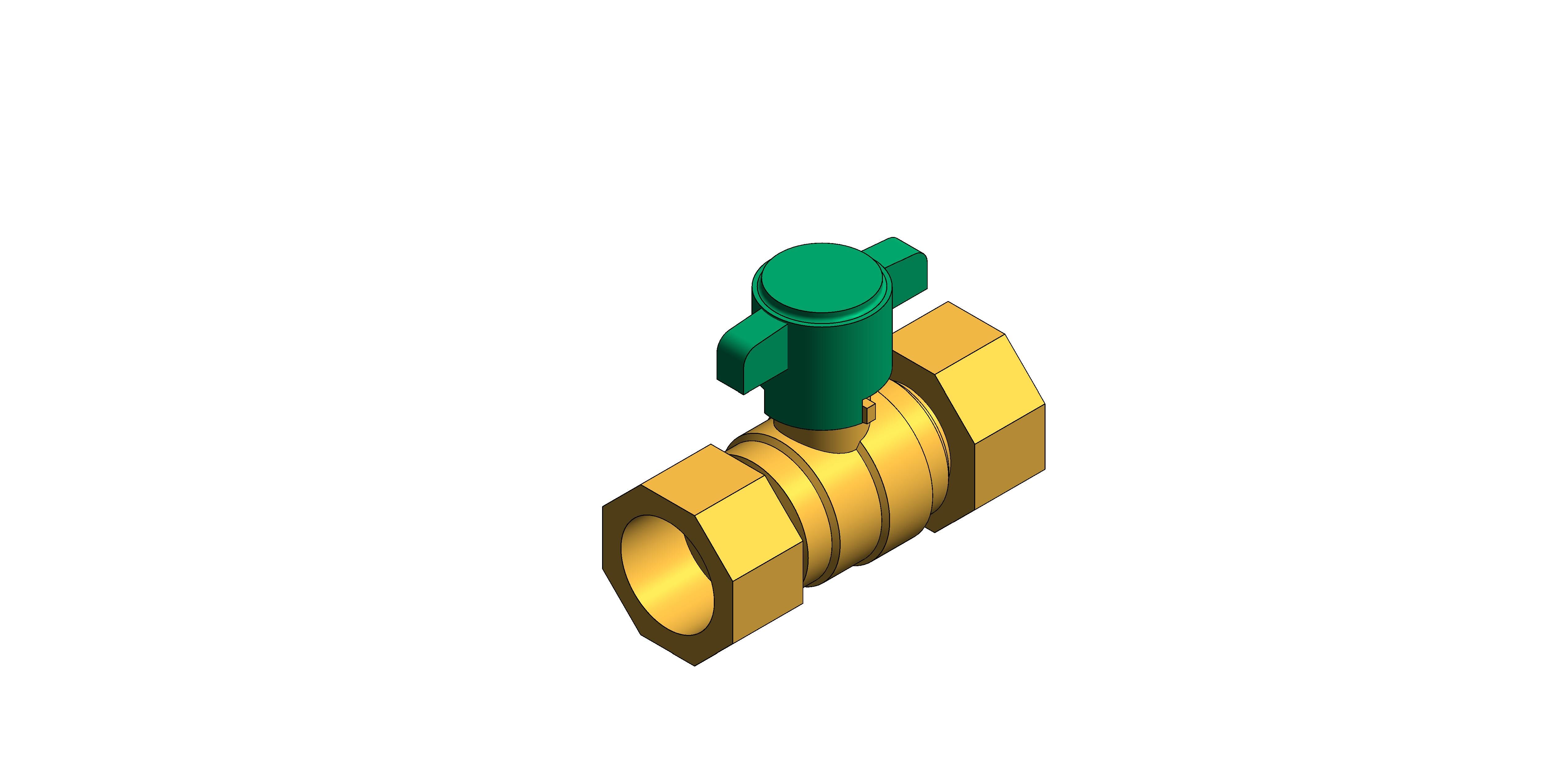

Fig. 100CTH - Ball Valves - DZR Brass

by Hattersley

Download Add to collection

Description

Ball Valves - DZR Brass

Fig. 100CTH

Features & Benefits

Dezincification resistant.
Light, compact, easy to install and operate.
Improved leak protection.
More resistant to damage during installation.

Size	15mm to 54mm
Pressure Rating	PN16
Product Material	DZR Brass
End Connections	Compression ends to BS EN 1254-2:1998

Object Data

1 Revision

Last Updated

10/11/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/hattersley-fig-100cth/document/object-user-guide
15mmYes
22mmNo
28mmNo
35mmNo
42mmNo
54mmNo
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
BIM Object NameHattersley_BallValve_WithTHandle_100CTH
BSYes
Classification NameUniclass 2015
Classification ValuePr_65_54_95_06
Code Performancen/a
Colorn/a
Connection Size15 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2021-08-31T:09:00:00
Description100CTH - DZR Ball Valve with T-Handle - DZR Brass
Dim X8 mm
Dim XX10 mm
Documentation Certificateswww.bimstore.co/products/hattersley-fig-100cth/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/hattersley-fig-100cth/document/installation-guide
Documentation Literaturewww.bimstore.co/products/hattersley-fig-100cth/document/product-literature
Documentation Maintenancewww.bimstore.co/products/hattersley-fig-100cth/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/hattersley-fig-100cth/document/technical-data-sheet
Duration UnitYear
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Handle Calc9 mm
Hmm40 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
K Coefficient4
KeynoteS
L1mm16 mm
L2mm50 mm
Lmm67 mm
Loss MethodK Coefficient
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
Model100CTH - DZR Ball Valve with T-Handle - DZR Brass
Model NumberFig. 100CTH
Model ReferenceFig. 100CTH - Ball Valves - DZR Brass
NBS DescriptionBall valves
NBS Noten/a
NBS Object NameHattersley - Ball valves
NBS Office Master Tagn/a
NBS Reference90-10-90/330
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size15mm
Sizemm8 mm
Spare Partsn/a
Type Comments100CTH - DZR Ball Valve with T-Handle - DZR Brass
Type Name100CTH - DZR Ball Valve with T-Handle - DZR Brass
URLwww.hattersley.com/
Valve Hax Calc 225 mm
Valve Hex Calc23 mm
Valve MaterialBrass, Soft Yellow
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@hattersley.com
Warranty Guarantor Partsenquiries@hattersley.com
