Kerto-Ripa Closed Panel

by Metsä Wood

Download Add to collection

Description

Roofing solutionsKerto-Ripa TM panels are an ideal solution for flat or low pitch roofs, and can be designed to the client's thermal requirements. Long clear spans (up to 18m*) are available allowing buildings to be constructed with fewer columns and beams creating greater design flexibility.

Flooring solutionsKerto-Ripa TM panels are also suitable for both ground and intermediate floors delivering clear spans of up to 9m. The panel is pre-fabricated to allow quick and simple installation, easily accommodating co-ordinated services within the floor zone. For cases where increased acoustic performance is required, The SoundBar System can be added to exceed building regulations.

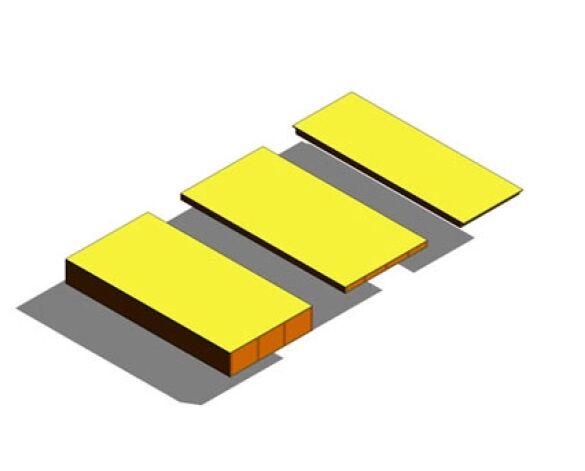

This download is for the Kerto-Ripa Closed Panel 'C' System.

UPDATE - Rev 2 - Update Cobie parameters, Include Uniclass2015, Upgrade Revit Version

Object Data

2 Revision

Last Updated

08/12/2015

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_BIMspec_GUID0
_created byKris Atkinson
_current revision1
_distributed bywww.bimstore.co.uk
Accessibility Performancen/a
Asset TypeFixed
Bottom Plate MaterialKerto-Q
Bottom Plate Thickness T225 mm
CertificationEuropean Technical Approval ETA-07/0029
Classification NameUniclass 2015
Classification ValuePr_25_71_42_70
Code Performancen/a
Colorn/a
Constituentsn/a
Created ByMetsä Wood
Created OnAmmended October 2015
DescriptionThe Kerto-Ripa® panel is a structural engineered timber building element made from glued Kerto® members. It is used to create the ground, intermediate floors and roofs of residential, commercial and public buildings. Kerto-Ripa can be used in both thermo-insulated structures and non-insulated structures.
Distance from 1st to 2nd Rib532 mm
Distance from edge to first Rib0 mm
Distance from edge to last Rib0 mm
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturewww.metsawood.com/uk/applications/building-and-construction/flooring-solutions/kerto-ripa/pages/default.aspx
Documentation Technicaln/a
DurabilityKerto-RIPA can be used in service classes 1 and 2 as defined in Eurocode 5, which correspond to the use classes 1 and 2 as defined in EN 335-1. The product shall not be used in service class 3 / use class 3 (3.1 exterior, above ground, protected, occasionally wet) without additional protective treatment.
Duration UnitYears
Energy Economy and Heat RetentionThe thermal conductivity for both web and flange materials is 0.13 W/(m K) according to EN 1254.
Expected Life1
Extidentifiern/a
Featuresn/a
Finishn/a
First Rib location calulation875 mm
Formaldehyde ClassThe formaldehyde release of the LVL is classified to be E1 in accordance with EN 14374. Kerto LVL products have formaldehyde releases less than 0,030 ppm which is 30% of E1 class requirment 0,10 ppm when determined in accordance with EN717-1.
Graden/a
KeynoteG20
KQ-cantilever100 mm
Last Rib location calculation875 mm
ManufacturerMetsä Wood
Materialn/a
ModelKerto-RIPA C 'Closed Panel'
Model NumberKerto-RIPA C 'Closed Panel'
NBS Noten/a
NBS Object NameRaised access floor panels
NBS Reference45-45-00/320
NBS Type IDn/a
NoNo
Number of Ribs4
Number of Ribs 3No
Number of Ribs 4Yes
Number of Ribs 5No
Overall Width B1800 mm
Product Documentation Linkwww.mwebrochure.eu/uk/metsawood/kertoripa/
Product Page URLwww.metsawood.co.uk/buildingconstruction/floors/Pages/KertoRipa.aspx
Production Year2015
Reaction to FireUntreated KertoLVL is classified to have reaction to fire class D-s1, d0. If thermal insulation is used inside the elements, it shall be classified to have reaction to fire class A1 as a default.
Referenced Standardn/a
Replacement Cost0
Resistance to FireA floor or roof construction made of Kerto RIPA elements may have resistance to fire class REI 30 or REI 60 provided that specific conditions are fulfilled. The load bearing capacity and the deflection of the Kerto RIPA element construction in case of fire is calculated in accordance with EN 1995-1-2 taking into account the charring rates and limitations provided.
Rib 2Yes
Rib 3No
Rib 4Yes
Shapen/a
Size1800x25 | 4(1)x51x120 | 1800x25
Spare Partsn/a
Standard Panel Depth150mm to 1200mm
Standard Panel Length1000mm to 25000mm. For panels from 12000mm in length transportation requirements should be considered.
Standard Panel Widthfrom 900 to 2500mm. Standard Widths are 1800, 2400 & 2500mm
Structural PerformanceStructural performance of the Kerto-RIPA elements is considered in accordance with the limit state design principles specified in Eurocodes. These methods follow EN 1995-1-1.
Suitable ApplicationKerto-RIPA elements are used as floor and roof construction. For roof construction a single ply membrane can be applied in the factory that is then lapped on site during the Kerto-RIPA installation.
Suitable FinishesKerto-RIPA elements can be painted or stained. The suitability of the treatment shall be checked with the manufacturer of it.
Tag Numbern/a
Top Plate MaterialKerto-Q
Top Plate Thickness T125 mm
Type CommentsH170-1800x25-4(1)x51x120-1800x25
Type NameH170-1800x25-4(1)x51x120-1800x25
URLwww.metsawood.co.uk/Pages/Default.aspx
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
Water vapour permeability and moisture resistanceKerto-RIPA elements may contain thermal insulation in cavities. The construction resembles a timber frame construction whare any moisture possibly coming into the cavities is ventilated or will be removed by diffusion. In cases where resistance to fire is required, ventilation cavities may require fire stops according to separate design.
Web Beams Height H1120 mm
Web Beams MaterialKerto-S
Web Beams Width B151 mm
Web Beams Width B251 mm
Web Beams Width B351 mm
Web Beams Width B451 mm
YesYes
