Mini Lockers

Description

Designed for high-density device and personal-item storage, these 2- to 8-tier mini lockers support secure storage for devices, keys and personal items within compact modular locker layouts. Commonly specified across workplace, education, gym and public-use environments, the system provides flexible and space-efficient storage planning for projects requiring organised short-duration or shared-use locker storage.

Manufactured in Melbourne, with BIM objects and specification resources available to support project planning and documentation.

This BIM download for Lockin lockers includes the following SKUs
ML2 - Two door mini locker
ML3 - Three door mini locker
ML4 - Four door mini locker
ML5 - Five door mini locker
ML6 - Six door mini locker
ML7 - Seven door mini locker
ML8 - Eight door mini locker

Object Data

3 Revision

Last Updated

23/09/2026

Available Software

BSB

Compliant

EPD

Not Available

_AuthorLockin Lockers
_Created Bysales@lockin.com.au
_Current Revision3
_Distributed Bywww.bimstoreoz.au/
Accessibility Performancen/a
Asset TypeFixed
BIM Object NameLockinLockers_Furniture_Locker_MiniLocker
Classification NameUniclass2015
Classification ValuePr_40_30_87_48
Code Performancen/a
ColorUSER DEFINED
Constituentsn/a
Created ByLockin Australia Pty Ltd (lockin.com.au)
Created On2026-04-13T09:00:00
Default Elevation0 mm
Depth Control200 mm
DescriptionMini Device Locker 2 door (ML2)
Desired Depth200 mm
Desired Height360 mm
Desired Width250 mm
Documentation Certificateslockin.com.au/product/ml2-ml8-compact-lockable-personal-storage/
Documentation Installation Guidewww.lockin.com.au

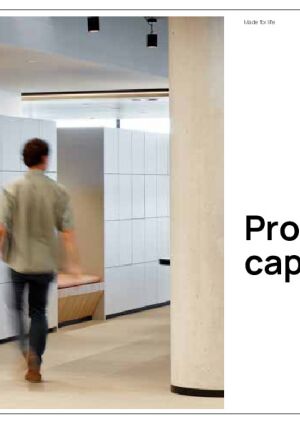

Documentation Literaturelockin.com.au/om-manual/

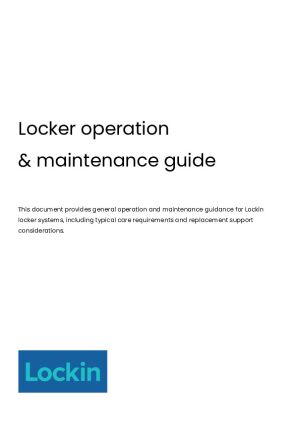

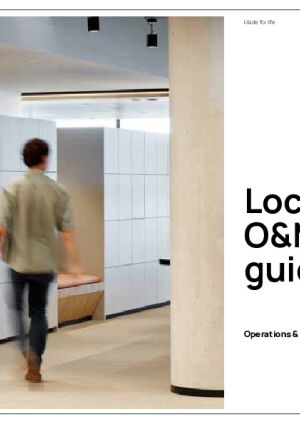

Documentation Maintenancelockin.com.au/om-manual/
Documentation Technicallockin.com.au/product/ml2-ml8-compact-lockable-personal-storage/
Door TypeLockinLocker_Door : Standard Door/Combination Lock
Duration UnitYears
Expected Life0
Export Type to IFC AsIfcFurnitureType
Features2-door device shelving locker with lockable compartments, configurable finishes, and compatible locking options (digital, RFID, or keyed)
FinishCommercial laminate finishes (Laminex / Polytec)
Graden/a
Height Control360 mm
H Locker178.5 mm
Ifc Export AsIfcFurnitureType
Ifc Export TypeUSERDEFINED
Locker Joint3 mm
ManufacturerLockin Lockers
Manufacturer NameLockin Lockers
MaterialBODY: HMR particle board with matching ABS edge. DOORS: laminate with matching ABS edge.
Maximum Depth400 mm
Maximum Height400 mm
Maximum Width220 mm
Minimum Depth200 mm
Minimum Height320 mm
Minimum Width160 mm
ModelML2
Model NumberML2
Model ReferenceMini Device Locker 2 door (ML2)
NBS DescriptionLockers
NBS Object NameLockin Lockers - Lockers
NBS Office Master Tagn/a
NBS Reference45-35-80/380
Nominal Depth200 mm
Nominal Height360 mm
Nominal Length220 mm
Number Doors2
Number Shelves2
Production Year2026
Referenced Standardn/a
Replacement Cost0
ShapeRectangular
Size220mm (W) x 360mm (H) x 200mm (D)
Spare Partsn/a
TH Locker19 mm
TH Wall18 mm
Type CommentsMini Device Locker 2 door (ML2)
Type IFC Predefined TypeUSERDEFINED
Type NameMini Device Locker 2 door (ML2)
URLlockin.com.au/product/ml2-ml8-compact-lockable-personal-storage/
Warranty Description10-year product warranty. Locks and accessories subject to manufacturer warranties. Refer to Lockin terms for full details.
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor LaborLockin Australia Pty Ltd (sales@lockin.com.au)
Warranty Guarantor PartsLockin Australia Pty Ltd (sales@lockin.com.au)
Width Control220 mm
