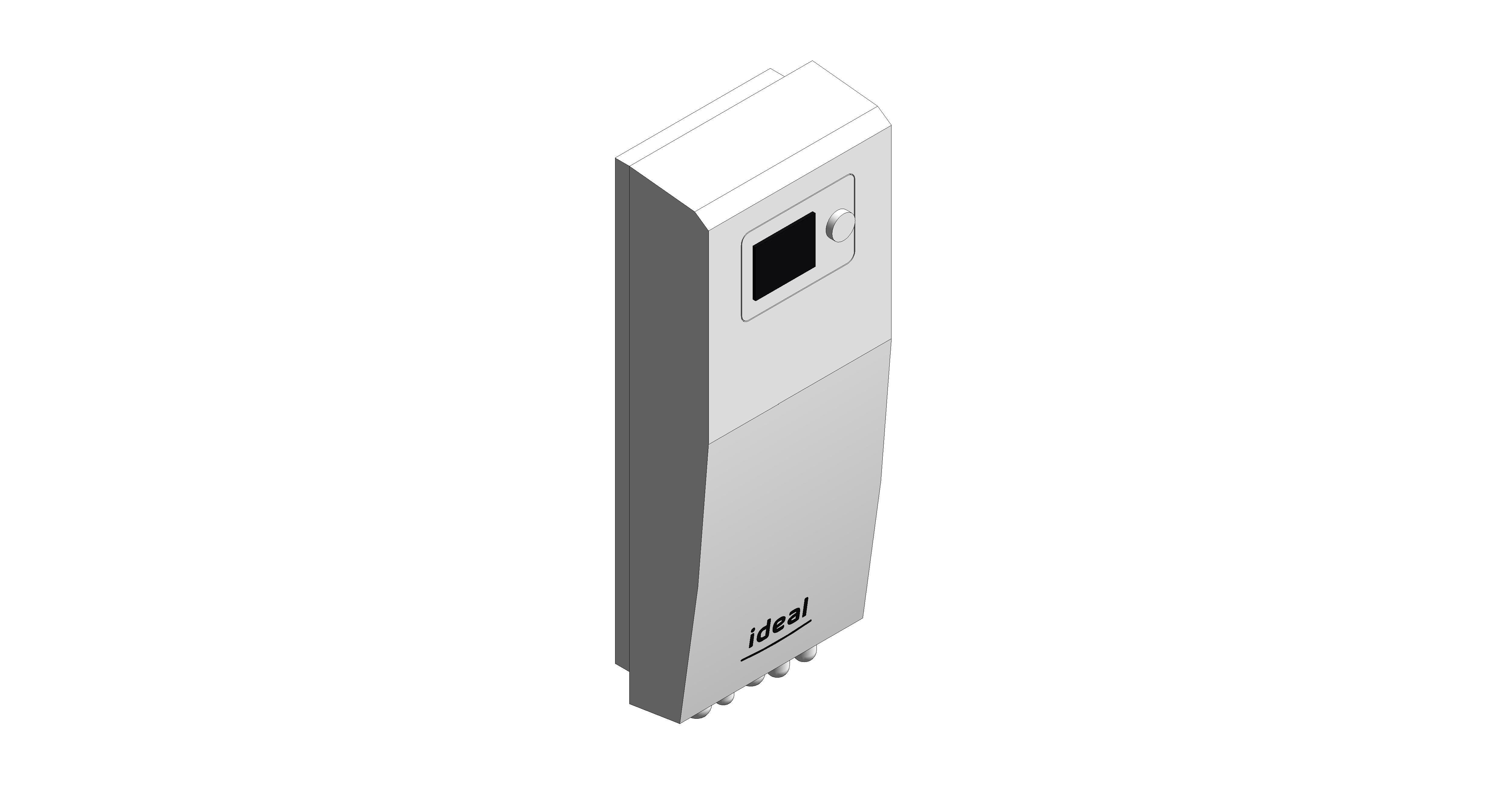

Logic Air Control Box

Description

The Logic Air control box is the central hub for the heat pump system, linking the heat pump to your heating and hot water cylinder. It enables in depth control, scheduling, connectivity and performance diagnostics.

For more product information on the Logic Air Pre-Plumbed Cylinder visit Ideal Heating HERE

Object Data

1 Revision

Last Updated

30/11/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorBS
_Authorized Bybimstore
_Bim Spec Guid1
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/logic-air-control-box/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD3060100
Asset TypeFixed
BIM Object NameIdealHeating_LogicAir_ControlBox
Case MaterialIdeal Heating - White
Classification NameUniclass 2015
Classification ValuePr_60_50_20_21
Code Performancen/a
ColorWhite
Constituentsn/a
Created Byideal@idealboilers.com
Created On2023-11-30T09:00:00
Default Elevation1219 mm
DescriptionThe Logic Air control box is the central hub for the heat pump system, linking the heat pump to your heating and hot water cylinder. It enables in depth control, scheduling, connectivity and performance diagnostics.
Documentation Certificateswww.bimstore.co/products/logic-air-control-box/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/logic-air-control-box/document/installation-guide
Documentation Literaturewww.bimstore.co/products/logic-air-control-box/document/product-literature
Documentation Maintenancewww.bimstore.co/products/logic-air-control-box/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/logic-air-control-box/document/technical-data-sheet
Duration UnitYears
Expected Life0
FeaturesInbuilt heat pump controller
Finishn/a
Graden/a
Height603 mm
Ifc Export AsIfcSpaceHeater
Ifc Export TypeIfcSpaceHeaterType
KeynoteT32
ManufacturerIdeal Heating
Manufacturer NameIdeal Heating
Materialn/a
ModelLogic Air - Control box
Model NumberLogic Air - Control box
Model Reference235797
NBS DescriptionDirect hot water storage cylinders
NBS Noten/a
NBS Object NameIdeal Heating - Direct hot water storage cylinders
NBS Office Master Tagn/a
NBS Reference90-15-35/310
Nominal Depth147 mm
Nominal Height603 mm
Nominal Length237 mm
Production Year2023
Referenced Standardn/a
Replacement Costn/a
ScreenIdeal - Control Panel - Black Screen
ShapeSquare
Size627x254x147mm
Spare Partsideal@idealboilers.com
Type CommentsIdeal Product Code: 235797
Type NameIdeal Product Code: 235797
URLidealheating.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborideal@idealboilers.com
Warranty Guarantor Partsideal@idealboilers.com
Width237 mm
