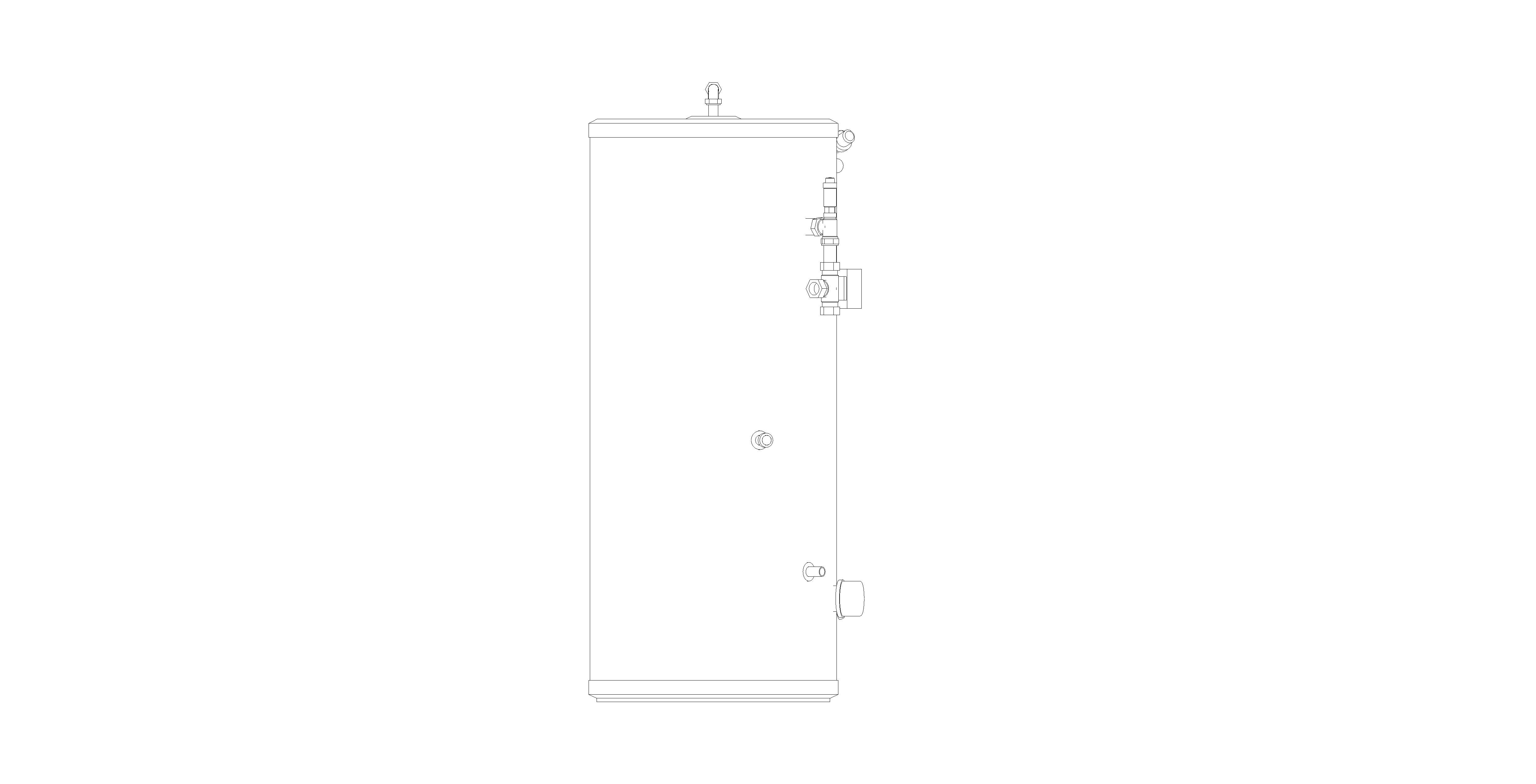

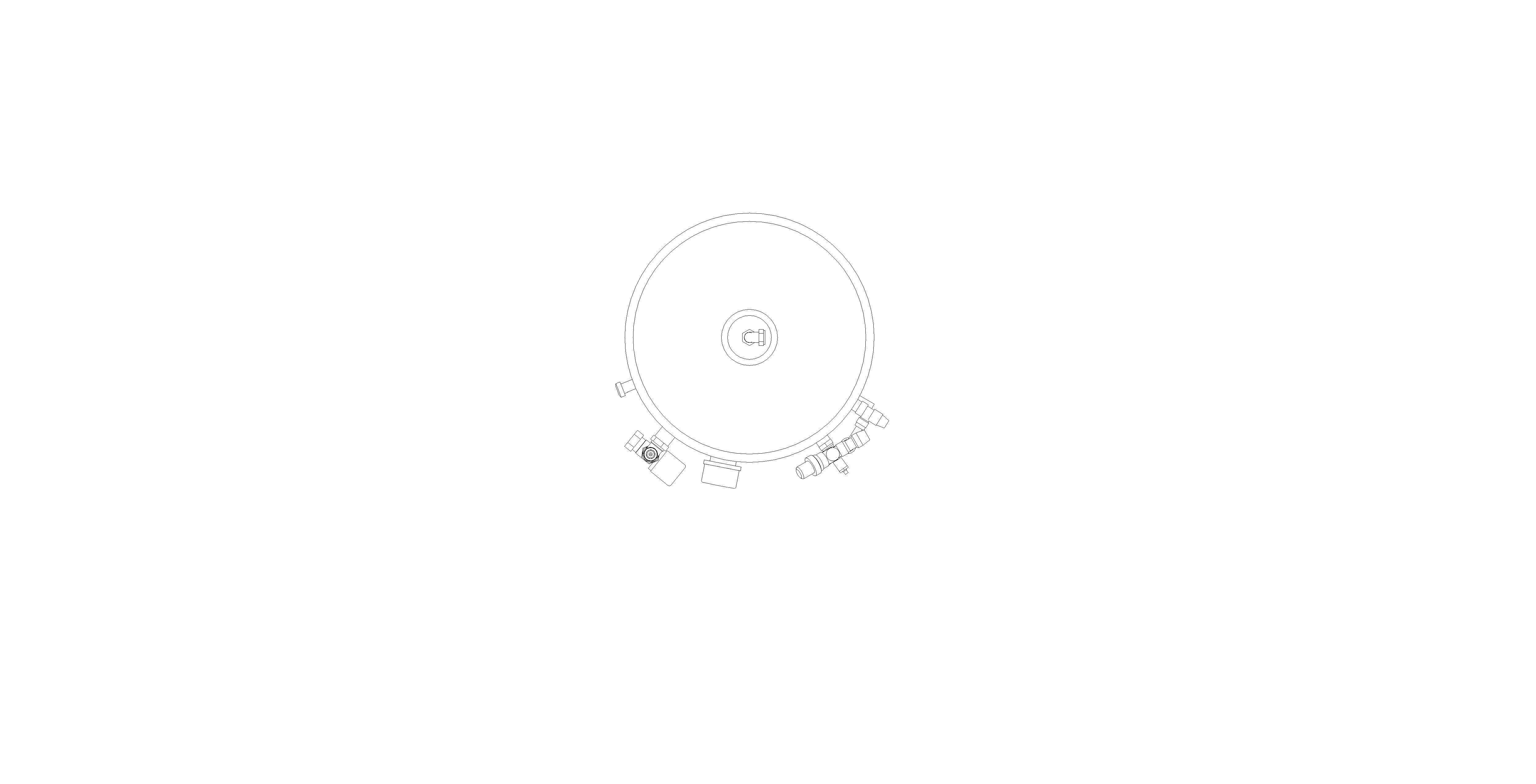

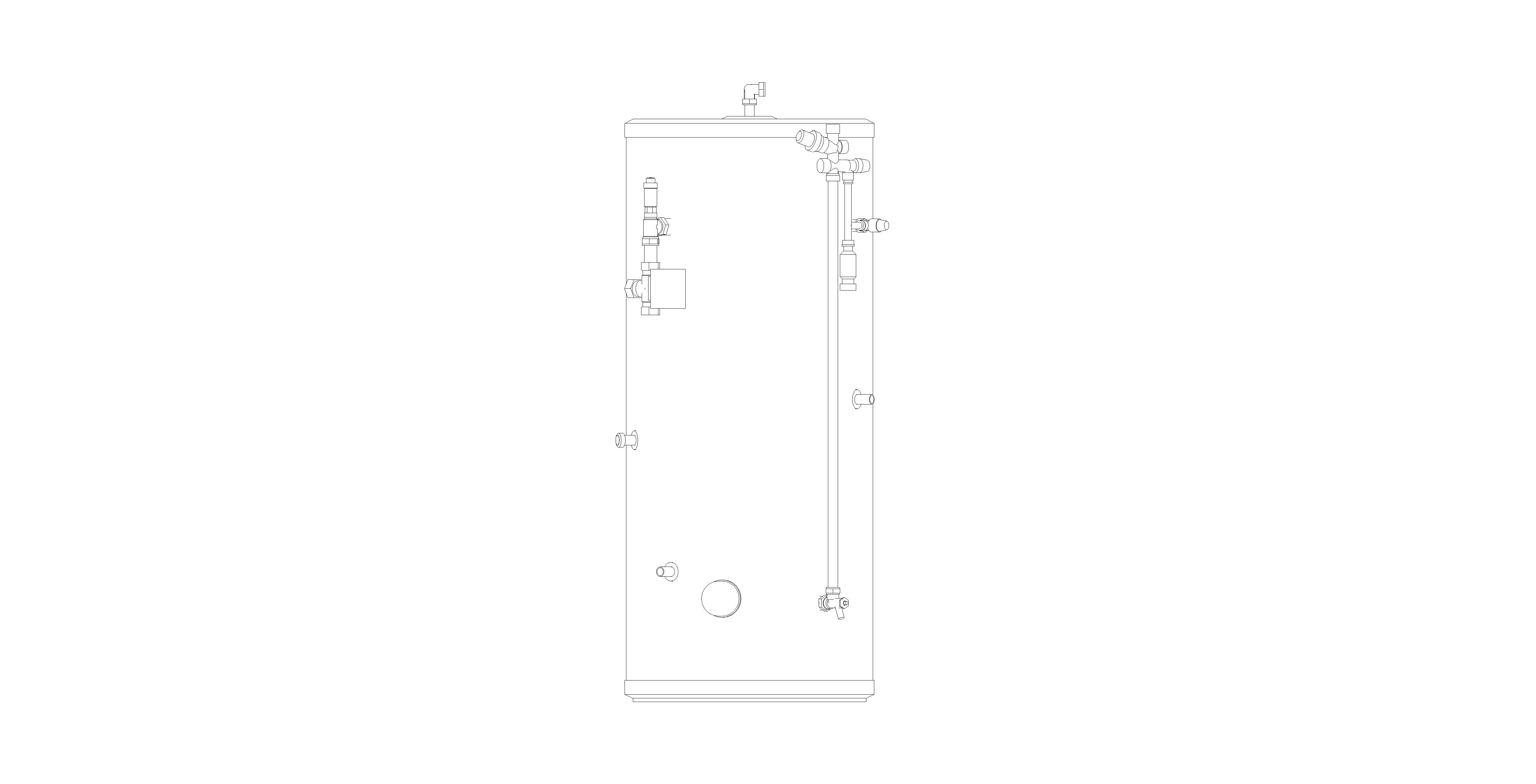

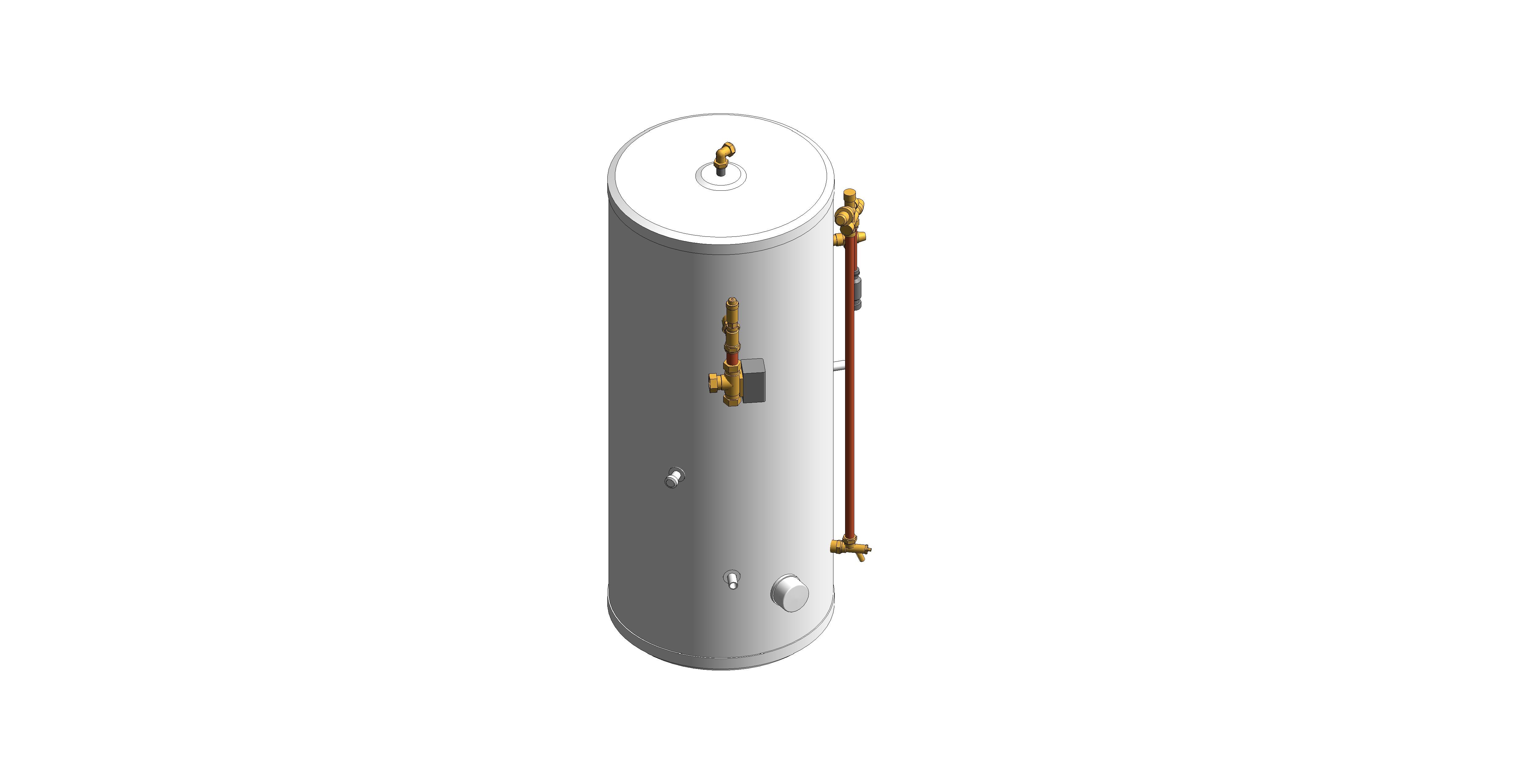

Pre Plumbed Lite DHW Cylinder

by Ideal Heating

Download Add to collection

Description

Pre Plumbed Lite DHW Cylinder

Our Pre-plumbed Lite cylinders have been engineered to provide flexibility for on-site wiring, with the same effortless installation and reliable performance.

Fully pre-plumbed
Industry leading reheat times
Compatible with Logic Air and HP290
Compact fit for UK homes

For more product information on the Pre Plumbed Lite DHW Cylinder visit Ideal Heating HERE

Object Data

1 Revision

Last Updated

29/01/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorBS
_Authorized Bybimstore
_Bim Spec Guid1
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/1e0297d8-5aec-48b8-b104-f3b6096e7dda/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD3060100
Asset TypeFixed
BIM Object NameIdealHeating_PrePlumbedCylinder_LiteDHW
Casing MaterialIdeal Heating - White
Classification NameUniclass 2015
Classification ValuePr_60_50_20_21
Clearance ZoneIdeal Heating - Clearance Zone
Code Performancen/a
ColorWhite
Conn O1278 mm
Constituentsn/a
Created Byideal@idealboilers.com
Created On2026-01-25T09:00:00
Cylinder Diameter475 mm
Cylinder Height1519 mm
D1292 mm
Default Elevation0 mm
DescriptionOur Pre-plumbed Lite cylinders have been engineered to provide flexibility for on-site wiring, with the same effortless installation, and reliable performance.
Documentation Certificateswww.bimstore.co/products/1e0297d8-5aec-48b8-b104-f3b6096e7dda/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/1e0297d8-5aec-48b8-b104-f3b6096e7dda/document/installation-guide
Documentation Literaturewww.bimstore.co/products/1e0297d8-5aec-48b8-b104-f3b6096e7dda/document/product-literature
Documentation Maintenancewww.bimstore.co/products/1e0297d8-5aec-48b8-b104-f3b6096e7dda/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/1e0297d8-5aec-48b8-b104-f3b6096e7dda/document/technical-data-sheet
Duration UnitYears
Expected Life0
F544 mm
FA1223 mm
FeaturesFully pre-plumbed. Industry leading reheat times. Compatible with Logic Air and HP290. Compact fit for UK homes.
Finishn/a
Flow Assembly Height1085 mm
Graden/a
Grille MaterialIdeal Heating - Grille
Ifc Export AsIfcSpaceHeater
Ifc Export TypeIfcSpaceHeaterType
Imm 1293 mm
J95 mm
KeynoteT32
L1517 mm
M220 mm
ManufacturerIdeal Heating
Manufacturer NameIdeal Heating
MaterialStainless steel
Mid Con Height668 mm
ModelPre-Plumbed Cylinder - Lite DHW
Model NumberPre-Plumbed Cylinder - Lite DHW
Model Reference246476
NBS DescriptionDirect hot water storage cylinders
NBS Noten/a
NBS Object NameIdeal Heating - Direct hot water storage cylinders
NBS Office Master Tagn/a
NBS Reference90-15-35/310
Nominal Depth475 mm
Nominal Height1519 mm
Nominal Length475 mm
Offset0 mm
Production Year2026
R375 mm
Referenced StandardBS EN 12897 :2016
Replacement Costn/a
ShapeCylinder
Size475x1579mm
Spare Partsideal@idealboilers.com
Top Con Height1050 mm
Type Comments150 SL 1Z
Type Name150 SL 1Z
URLidealheating.com/
Vis ConnNo
Vis Height823 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborideal@idealboilers.com
Warranty Guarantor Partsideal@idealboilers.com
Wtr Inlet223 mm
