VST - Safety Valve

Description

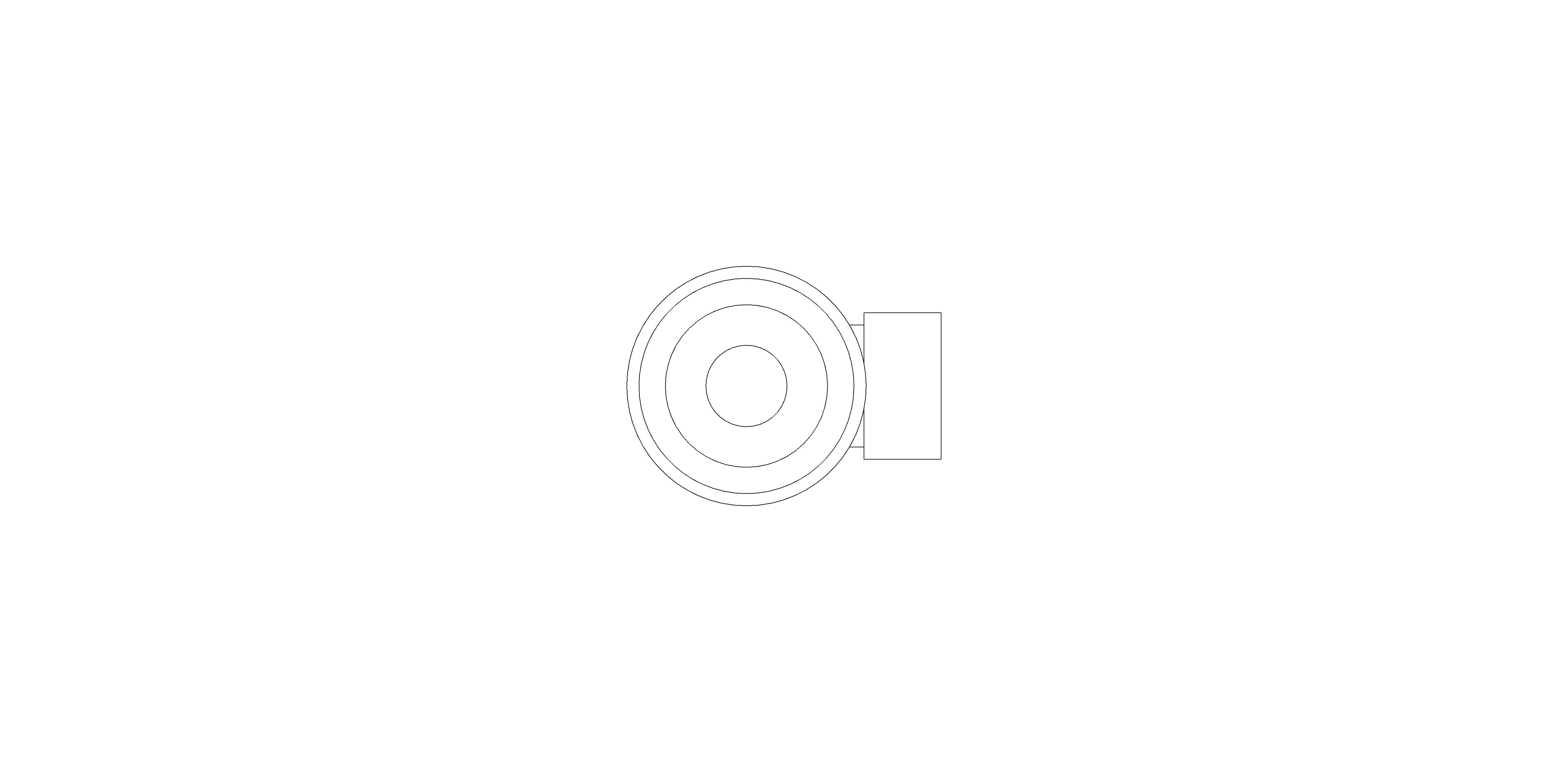

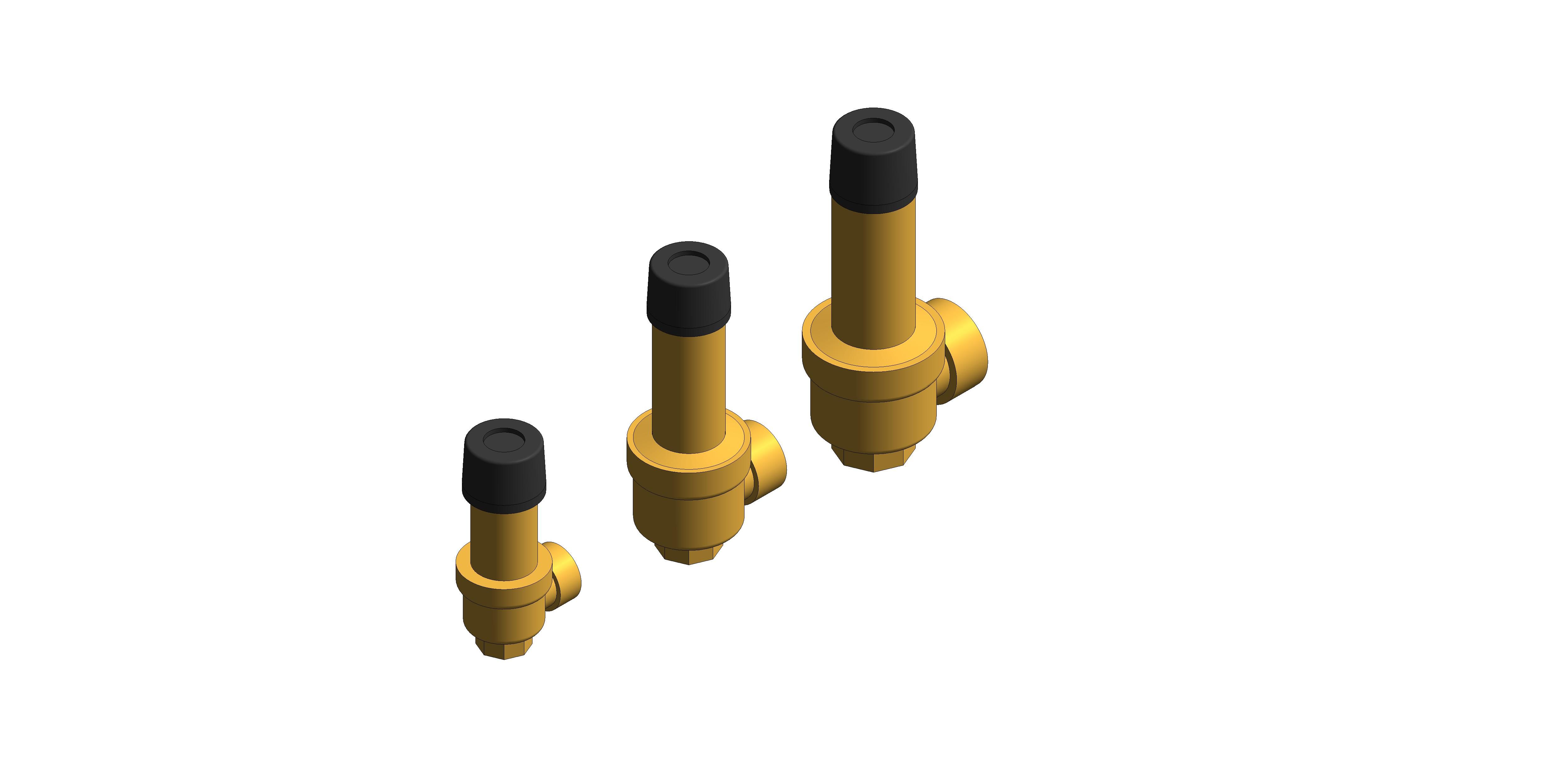

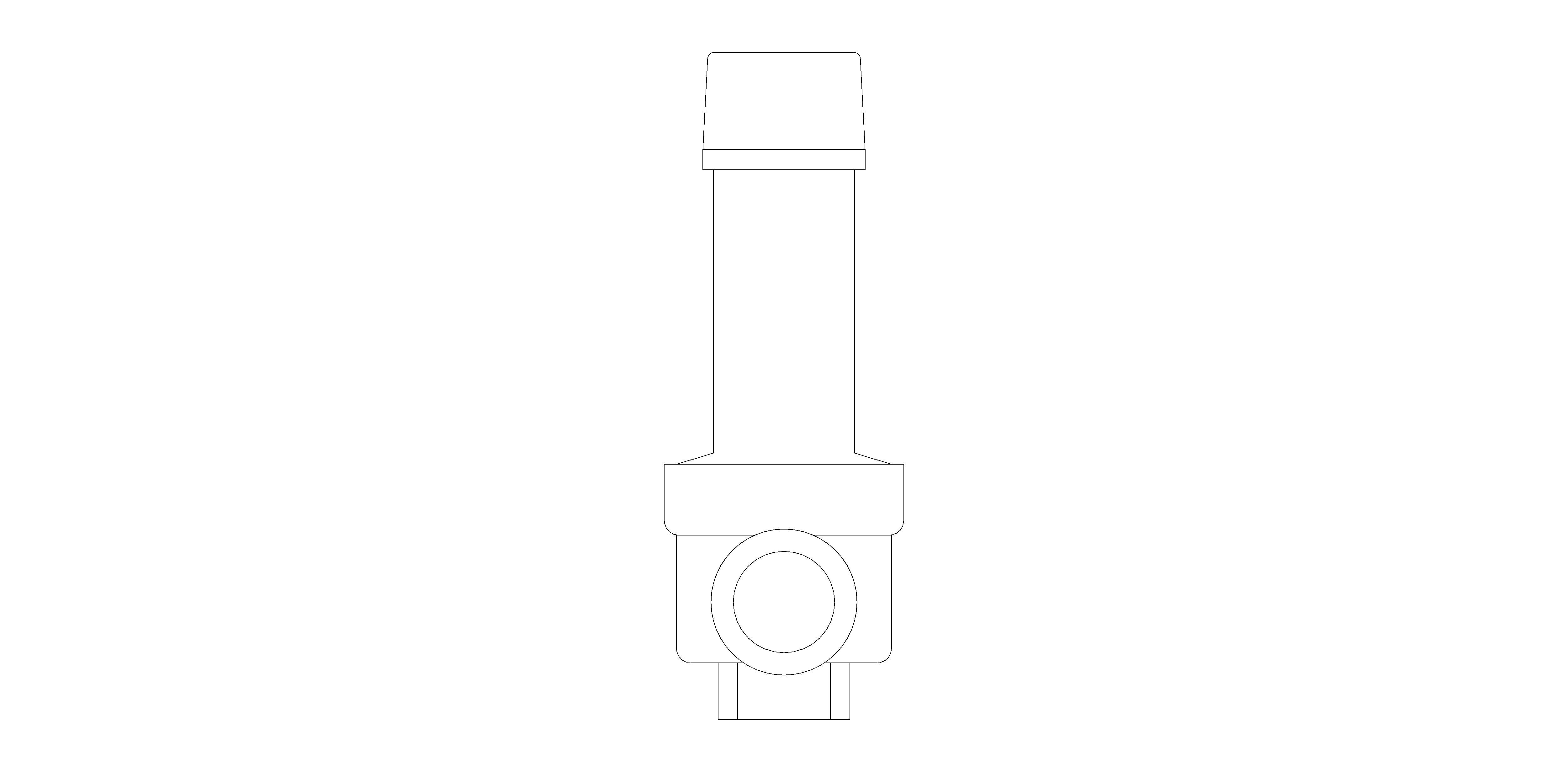

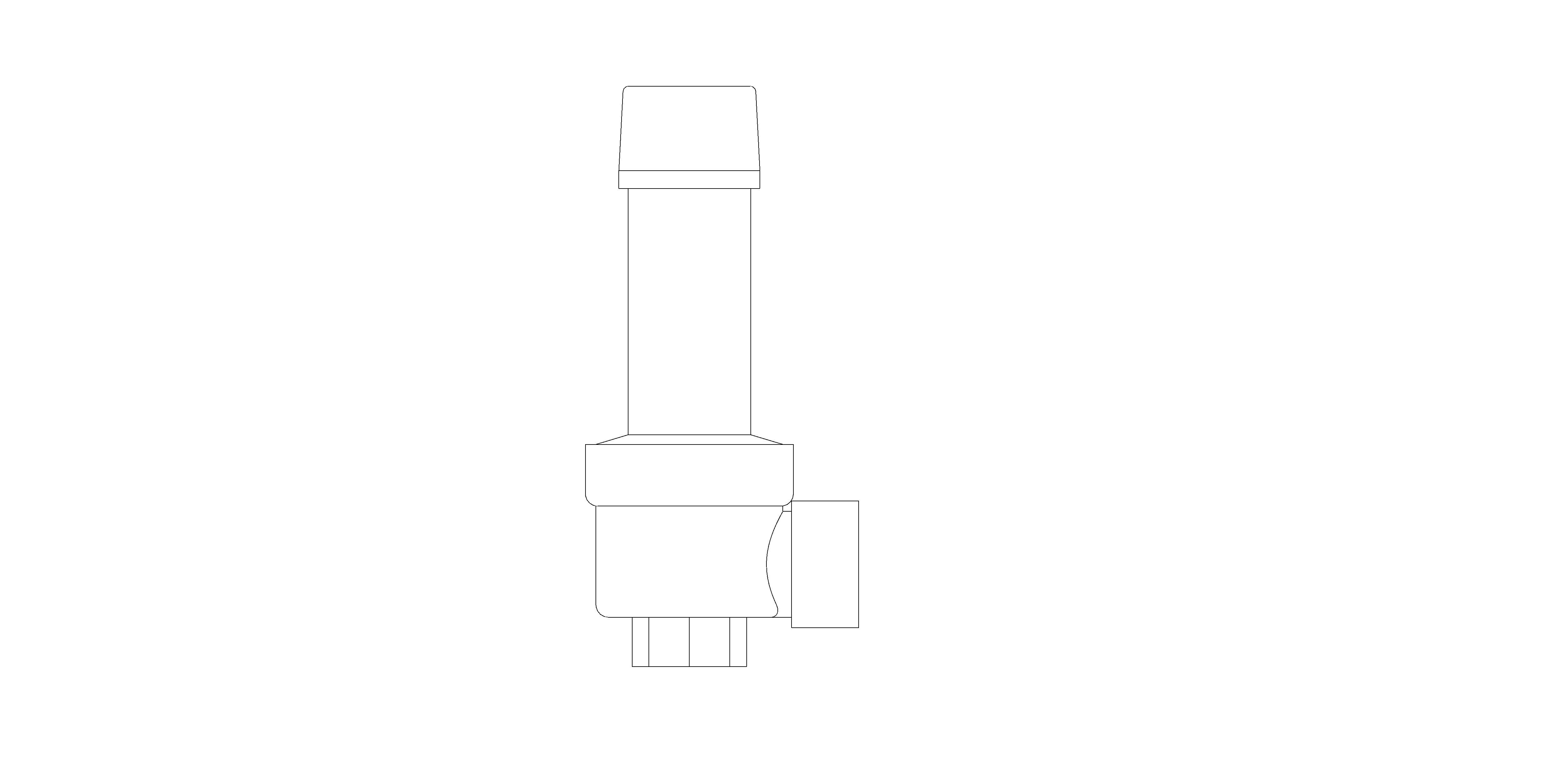

VST Series

INAIL approved and calibrated safety valves automatically discharge enough liquid to ensure that the safety pressure setpoint is not exceeded. They protect the boiler and system, and require no energy except the pressurised fluid. The valves are designed and manufactured in compliance with “R” regulations - 2009 edition, applied technical specifications of Italian Ministerial Decree 1-12-1975.

Object Data

1 Revision

Last Updated

02/04/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

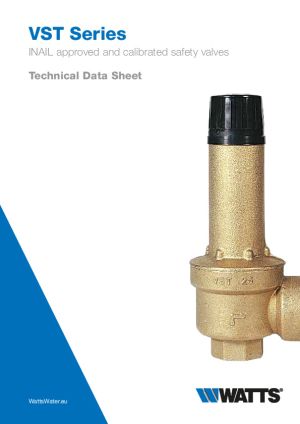

Product Literature

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/safety-valve-vst/document/object-user-guide
A23.0 mm
Accessibility Performancen/a
Assembly CodeD2040100
Asset TypeFixed
B10.5 mm
BIM Object NameWatts_DiaphragmSafetyValve_VST
Blowdown<20%
Body And CapCW617N brass
C23.7 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_75
Code Performancen/a
Colorn/a
Connection Radius 17.5 mm
Connection Radius 210.0 mm
Connection Size 115.0 mm
Connection Size 220.0 mm
Constituentsn/a
Created Bycontact@wattswater.com
Created On2024-01-18 T09:00:00
D12.5 mm
Default Elevation0.0 mm
DescriptionVST Series INAIL approved and calibrated safety valves automatically discharge enough liquid to ensure that the safety pressure setpoint is not exceeded. They protect the boiler and system, and require no energy except the pressurised fluid. The valves are designed and manufactured in compliance with “R” regulations - 2009 edition, applied technical specifications of Italian Ministerial Decree 1-12-1975.
Diaphragm And SealsEPDM
DiscCW617N brass
Documentation Certificateswww.bimstore.co/products/safety-valve-vst/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/safety-valve-vst/document/installation-guide
Documentation Literaturewww.bimstore.co/products/safety-valve-vst/document/product-literature
Documentation Maintenancewww.bimstore.co/products/safety-valve-vst/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/safety-valve-vst/document/technical-data-sheet
Duration UnitYear
E19.5 mm
Expected Life0
F11.5 mm
Featuresn/a
Finishn/a
G2.7 mm
Graden/a
H16.0 mm
I65.6 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
J20.0 mm
K24.0 mm
KeynoteS12
L23.0 mm
M37.0 mm
Manual Discharge KnobImpact-resistant technopolymer
ManufacturerWatts
Manufacturer NameWatts
Materialn/a
Maximum Operating Temperature-10÷120°C
ModelVST
Model NumberDN15
Model ReferenceVST
N15.0 mm
NBS DescriptionSafety Valves
NBS Noten/a
NBS Object NameWatts - Safety Valves
NBS Office Master Tagn/a
NBS Reference90-10-90/376
Nominal Depth0.0 mm
Nominal Height0.0 mm
Nominal Length0.0 mm
Nominal PressurePN10
Oct Width25.0 mm
Overpressure10%
PED ClassIV
Production Year2024
Referenced StandardCE mark: VST Series safety valves meet the requirements of the Pressure Equipment Directive 2014/68/UE (PED). The valves are classified in category IV, considered the highest risk category, given that they are safety devices and bear the CE mark followed by the number 0425, identifying the approval authority. INAIL: VST Series safety valves are manufactured in accordance with the specifications and requirements of “R” regulations Chap. R.2.A (2009 Edition) and are supplied with INAIL approval and calibration certificates. The INAIL approval certificate is issued to the manufacturer after testing to ensure that it fully conforms with the operating characteristics required by the regulations. The document is valid for five years: all valves manufactured within this timeframe are INAIL approved indefinitely and can be used in systems without any time limits. The valves are tested individually and supplied with a unique calibration report, showing the serial number of the valve marked on the non-removable metal disc fixed in the knob. The calibration report must remain with the valve for its full service life.
Replacement Costn/a
Setting SpringGalvanised C100 steel
Shapen/a
SizeDN15
Spare Partsn/a
Type CommentsDN15
Type NameDN15
URLwww.watts.eu/
Vis 1No
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partscontact@wattswater.com
