Thermatile TEN-TWELVE Wall Mounted Angled Frame Radiant Panel

Description

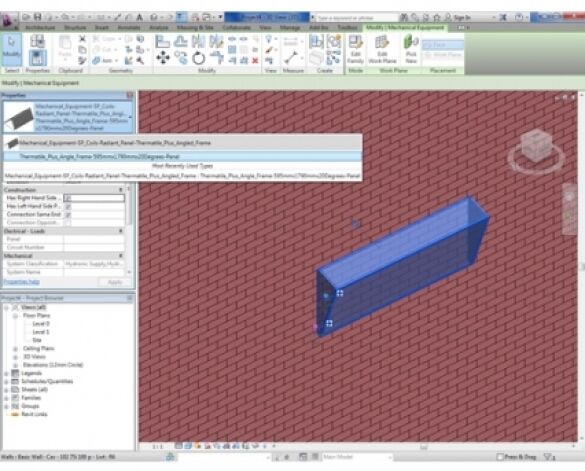

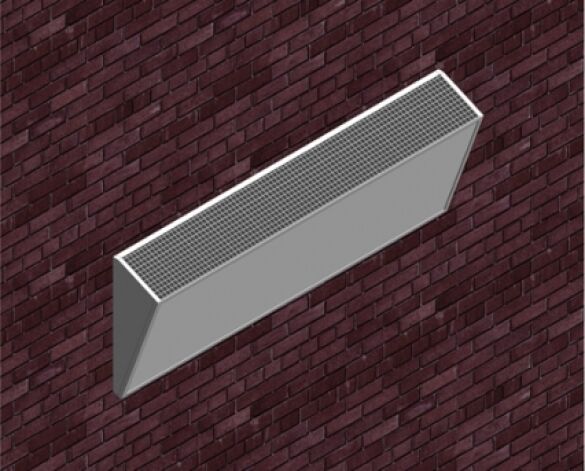

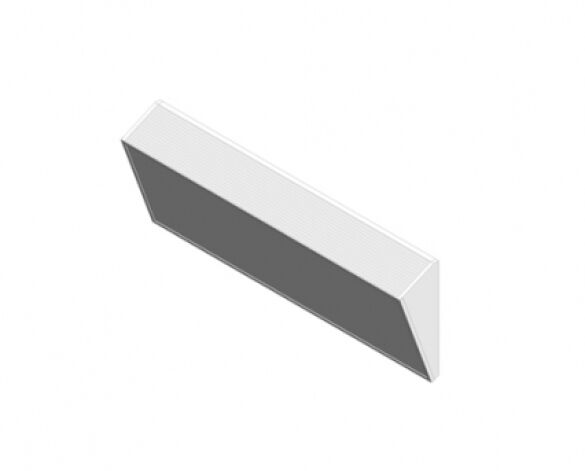

Thermatile TEN-TWELVE Wall Mounted Angled Frame Radiant Panels can also be wall mounted either flat against the wall or angled using a specially designed angled mounting bracket. This angled bracket also comes with a ball guard to stop items being lodged between the panel and the wall.

Object Data

1 Revision

Last Updated

21/05/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

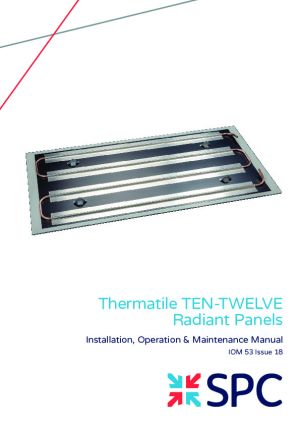

Installation Guide

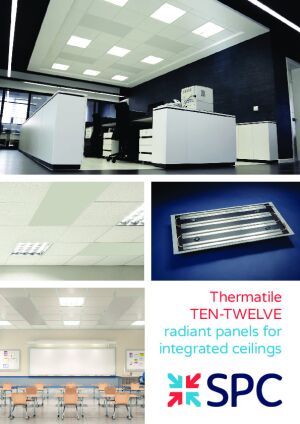

Product Literature

Product Data Sheet

Object metadata

Object

Parameter Type

_BIMspec_GUID0
_created byConnor Laing
_current revision1
Acoustic PanelNo
Air Vents and DrainsTO BE GENERATED BY SPC
Angle43.00 °
Assembly CodeD3020
Asset TypeFixed
Ball GuardS & P Coils - Ball Guard
Circuit Type ManifoldNo
Circuit Type SerpentineYes
Connection Dia12 mm
Contact SP CoilsS & P Coil Products Limited, SPC House, Evington Valley Road, Leicester, LE5 5LU, United Kingdom - Tel: +44 (0)116 2490044 - Fax: +44 (0)116 2490033 - Email: spc@spcoils.co.uk
Cooling Air Temperature0
Cooling Flow Rate0
Cooling Flow Temperature0
Cooling Output0
Cooling Pressure Drop Kpa0
Cooling Return Temperature0
Created Byspc@spcoils.co.uk
Default Elevation0 mm
DescriptionThermatile Plus Radiant Panels can also be wall mounted either flat against the wall or angled using a specially designed angled mounting bracket. This angled bracket also comes with a ball guard to stop items being lodged between the panel and the wall.
DocumentationLink URLwww.spcoils.co.uk/Portals/0/pdfs/SPC_Brochure_ThermatilePlus.pdf
Dry Weight3 mm
Duration UnitYears
Edging Strip Option_BKNo
Edging Strip Option_EPDNo
Edging Strip Option_EPK BlackNo
Edging Strip Option_EPK WhiteNo
Edging Strip Option_KPNo
Edging Strip Option_NoneNo
Edging Strip Option_StdNo
Expected Life0
Flow Rate0.00 L/s
Has SidewallsYes
Heating Air Temperature0
Heating Flow Rate0
Heating Flow Temperature0
Heating Output0
Heating Pressure Drop Kpa0
Heating Return Temperature0
Height6 mm
Insulated PanelYes
KeynoteT
Length590 mm
ManufacturerS & P Coil Products Limited
ModelAngled Frame Thermatile Plus Radiant Panel
Model NumberAngled Frame Thermatile Plus Radiant Panel
Number of Pipes0
Panel MaterialS & P Coils - Aluminium - White - RAL9010
Panel Run NotePlease contact SPC for advice on connecting multiple panel runs
Perforation Hole Pattern and SizeTO BE GENERATED BY SPC
Pipe and InsulationS & P Coils - Insulation and Plumbing Area
Pressure Drop kPa0
Radius6 mm
Review SpanNo
Review Span MessageSINGLE PANEL CAN BE USED
SidewallsS & P Coils - Plastic Edging
SPC_CoolingNo
SPC_HeatingYes
SPC_Heating and CoolingNo
Type CommentsRigid Composite Aluminium Sheet Panel
Type of ConnectionUser to input type of connection
Type NameAngled Frame Thermatile Plus Radiant Panel
Uniclass 2Pr_70_60_36_71 Radiant Panels
URLwww.spcoils.co.uk
URL - Installation Maintenance and Operationwww.spcoils.co.uk/Portals/0/pdf's/IOM_53_Thermatile_Plus_Issue_4.pdf
URL - Product Installation Videowww.spcoils.co.uk/Products/ThermaTilePlusRadiantCeilingPanels.aspx
URL - Product Pagewww.spcoils.co.uk/Portals/0/pdfs/SPC_Brochure_ThermatilePlus.pdf
Wet Weight4 mm
Width300 mm
